6.3 ccTalk
®
6.3.1 General Description
ccTalk
®
is a serial communications protocol designed by Money Controls to allow 3-
wire interfacing between a host and cash handling peripherals. Please contact
support@innovative-technology.com for further information.
Caution!
Innovative Technology Ltd.
provides full SDK packages
including Interface Specification,
Implementation Guide as well as
source code examples for SSP
respectively eSSP only!

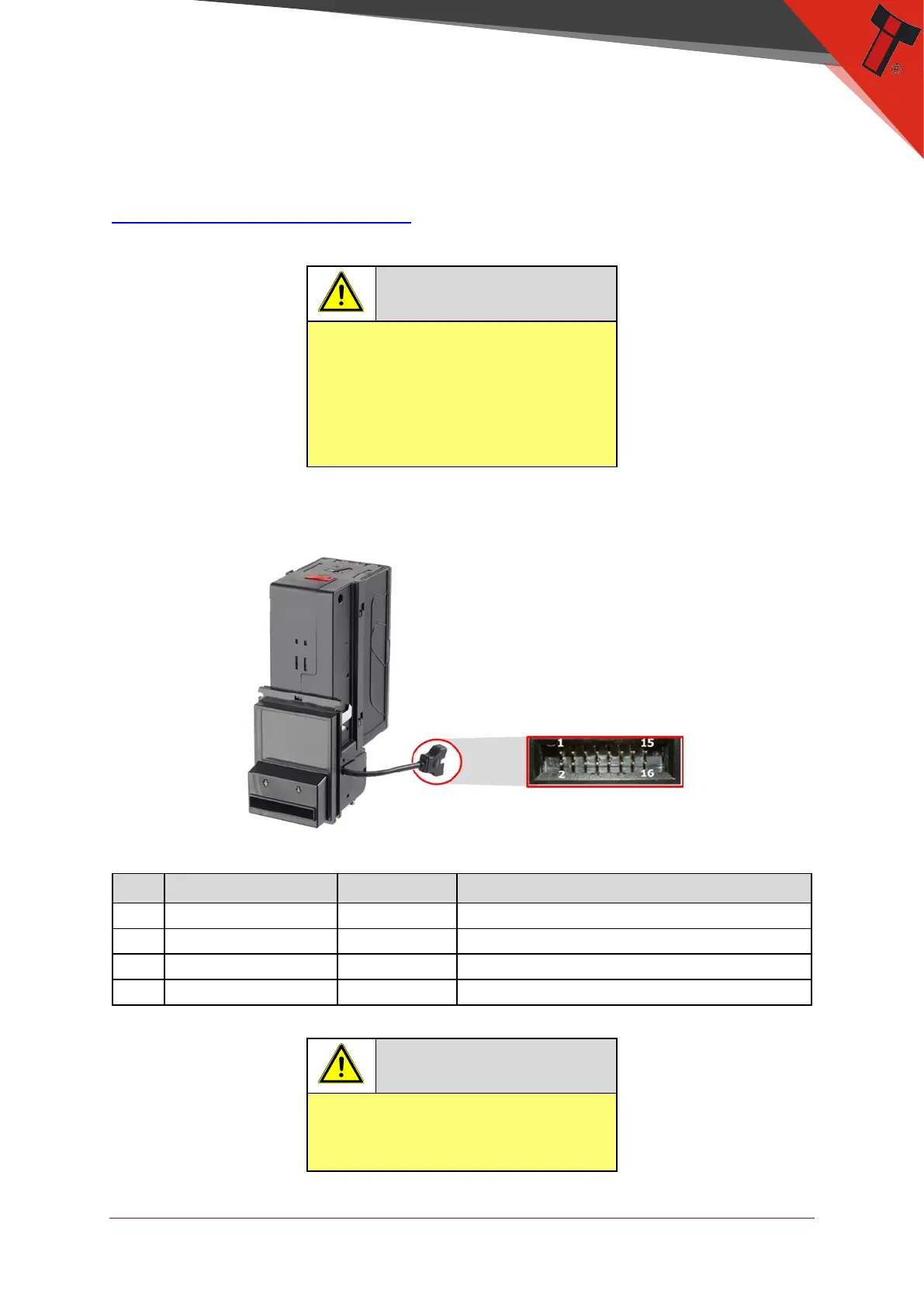

6.3.2 Pin Assignments
Pin
Name
Type
Description
1
Vend 1
Output
Serial Data (optionally link to Pin 5)
5
Inhibit 1
Input
Serial Data (optionally link to Pin 1)
15
+ Vin
Power
+12V DC Supply
16
0V
Power
0V Supply (GND)
Caution!
+12VDC and 0V (GND) must
always be connected, also when
using USB connections.
