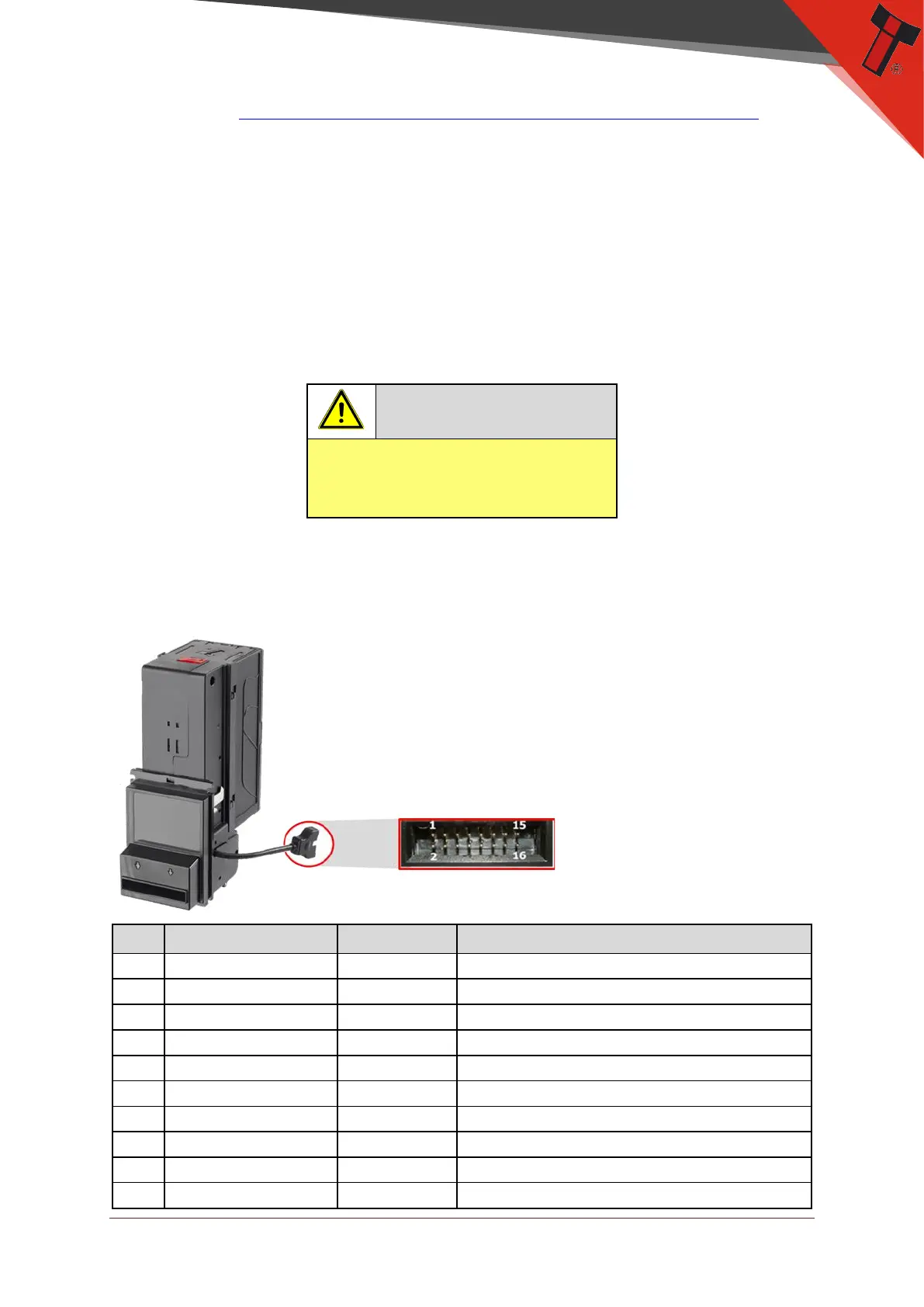

6.6 Parallel
6.6.1 General Description
Parallel is a 4-way output interface. The first 4 channels have their own individual
output which means that only a maximum of 4 channels can be used. If a note is
recognised the relevant Vend line is set to low for a period of 100 ± 3ms. Pulses
outside these limits should be rejected as a precaution against false triggering.
Caution!
Parallel is an unsecure interface
and should not be used for new
developments!
6.6.2 Pin Assignments
Pin
Name
Type
Description
1
Vend 1
Output
Credit Output Channel 1
2
Vend 2
Output
Credit Output Channel 2
3
Vend 3
Output
Credit Output Channel 3
4
Vend 4
Output
Credit Output Channel 4
5
Inhibit 1
Input
Inhibit Input Channel 1
6
Inhibit 2
Input
Inhibit Input Channel 2
7
Inhibit 3
Input
Inhibit Input Channel 3
8
Inhibit 4
Input
Inhibit Input Channel 4
9
Busy
Output
Output Busy Signal
10
Escrow
Input
Input Escrow Control
