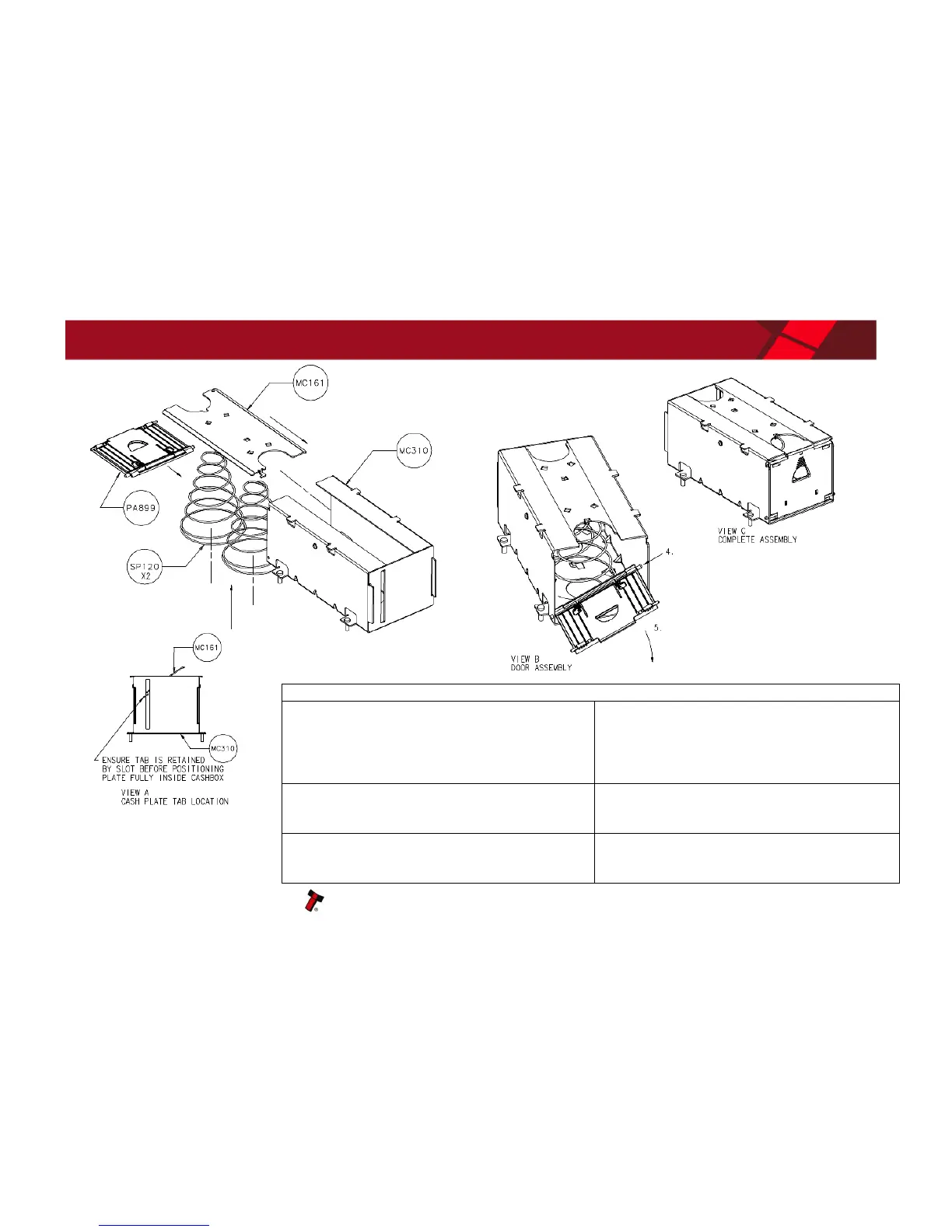

Standard Cashbox:
1. Clip two springs (SP120) to the cash plate
(MC161), then slide the assembly into the cash
box (MC310) making sure the cash plate is above
the cash box slot
4. Fit the cash box door (PA899) to the cash box
by pushing the door shaft flush to the door edge
at one end and inserting the extended part of
the shaft into the pivot hole in the cash box (see
View ‘B’)
2. Secure the springs to the cash box floor using
the 6 tabs in the base of the cash box
5. Twist the cash box door so the free end of
the shaft slides into the other cash box pivot
hole (see View ‘B’)
3. Twist the cash plate and insert the end tab into
the cash box slot (see View ‘A’), then push the
plate fully into the cash box (see View ‘C’)
6. Push the cash box door closed (see View ‘C’)
