1.4 Connector and Pinouts
The NV11 validator has a single connector that is used to allow interfacing and
programming.
Information
Power always required
regardless of connection
type.
Power is always required on pins 15 and 16 of the
16 way connector.

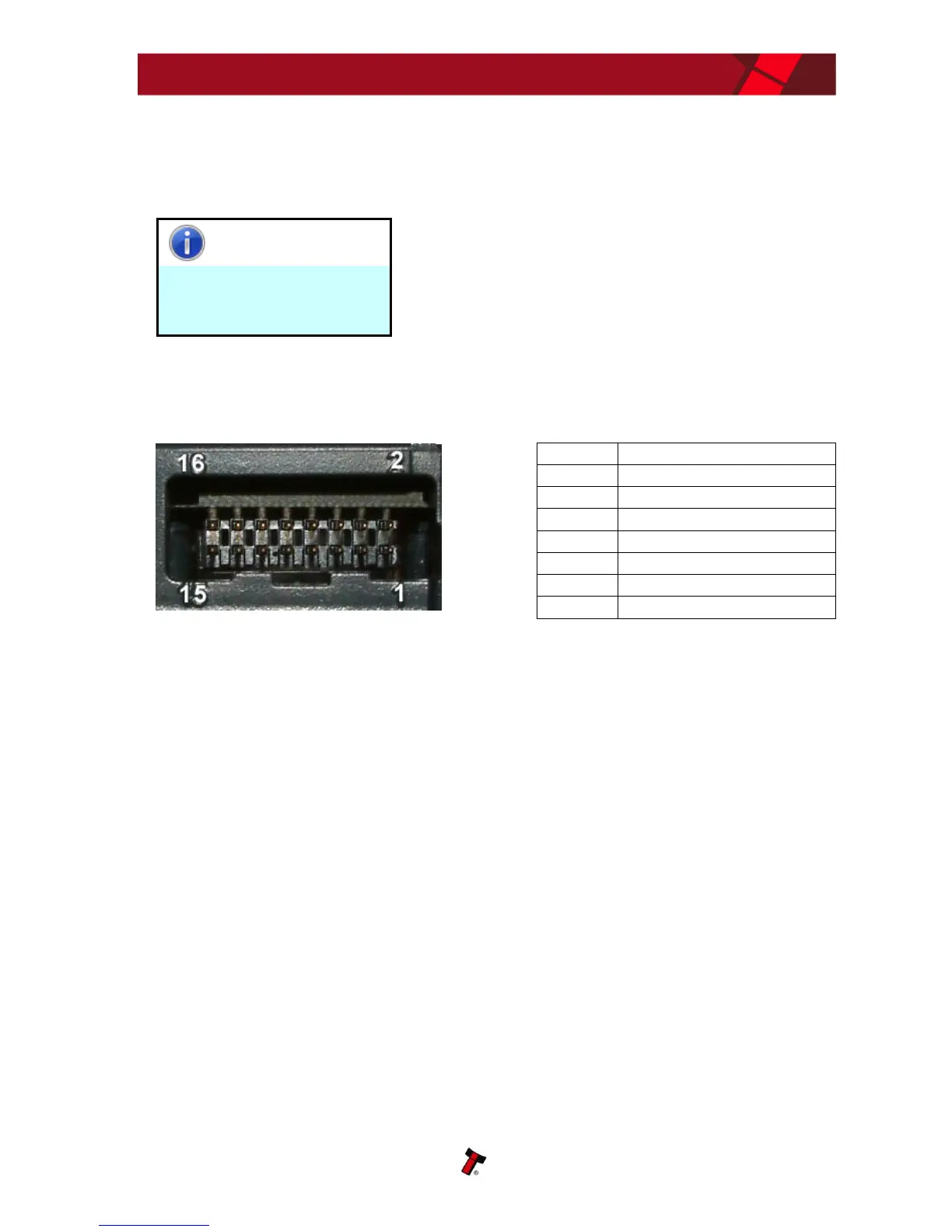

The connector is a 16 pin socket used to interface the NV11 to the host machine. The
pin numbering of the socket is shown below, as well as an overview of the socket
connections:
To use a USB connection with the NV11, a USB cable fitted with a 16 way connector
on one end (ITL Part Number CN392) should be used. The CN392 cable fits into the
16 way connector and allows high speed programming and serial communications
when used in SSP and ccTalk modes.
When using the USB connection, power must be supplied to the NV11 using the
CN392 cable.
Pin
Description
1
Serial Data Out (Tx)
5
Serial Data In (Rx)
11
USB Data +
12
USB Data -
13
USB Power (+5V)
15
+ V
16
0V / Ground Connection
