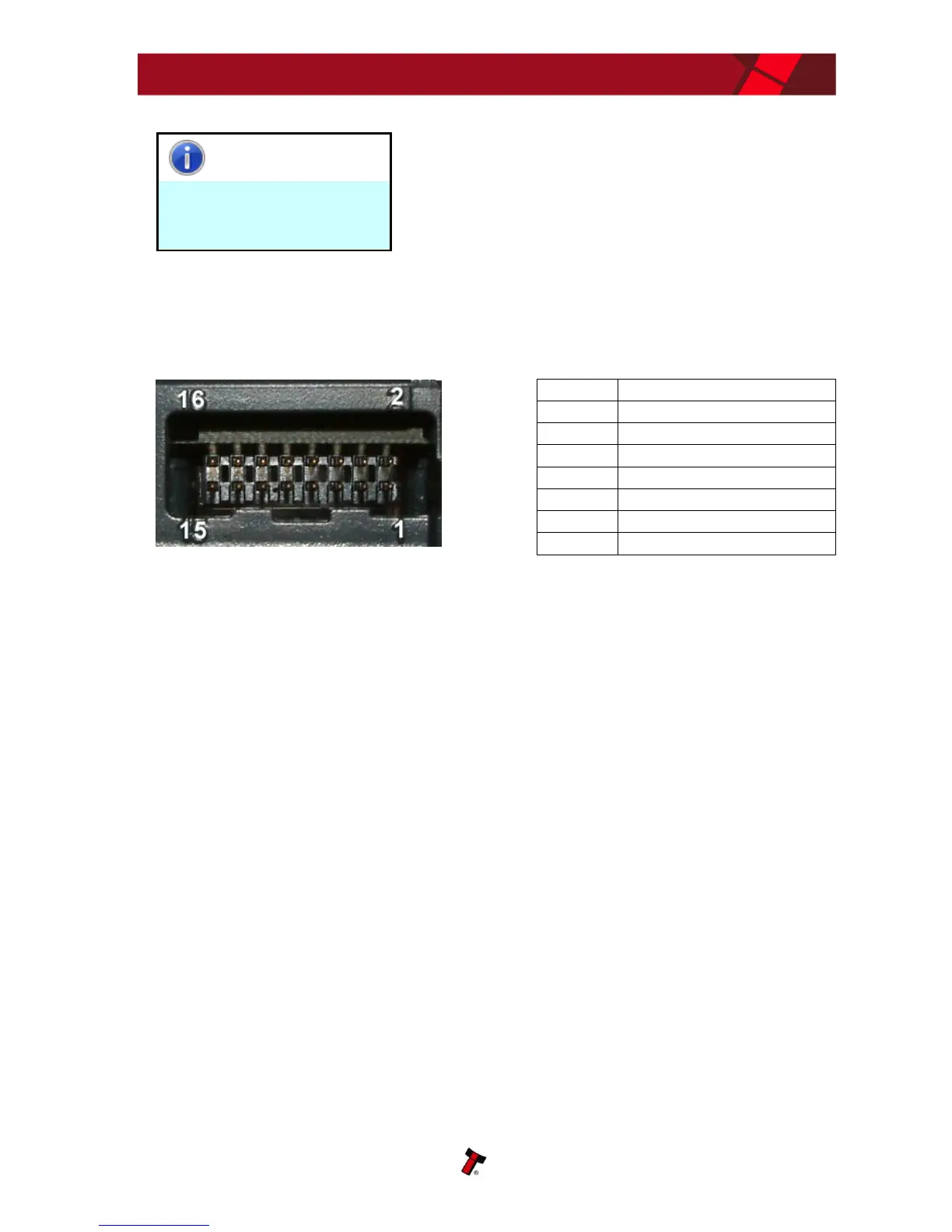

The connector is a 16 pin socket used to interface the NV11 to the host machine. The
pin numbering of the socket is shown below, as well as an overview of the socket
connections:
To use a USB connection with the NV11, a USB cable fitted with a 16 way connector
on one end (ITL Part Number CN392) should be used. The CN392 cable fits into the
16 way connector and allows high speed programming and serial communications
when used in SSP and ccTalk modes.
Further details of the cable needed to interface and program the NV11 validator can
be found in Section 4 of this manual set (subsection 4.9). When using the USB
connection, power must be supplied to the NV11 using the CN392 cable.
