2.4.3 Interface Connectors

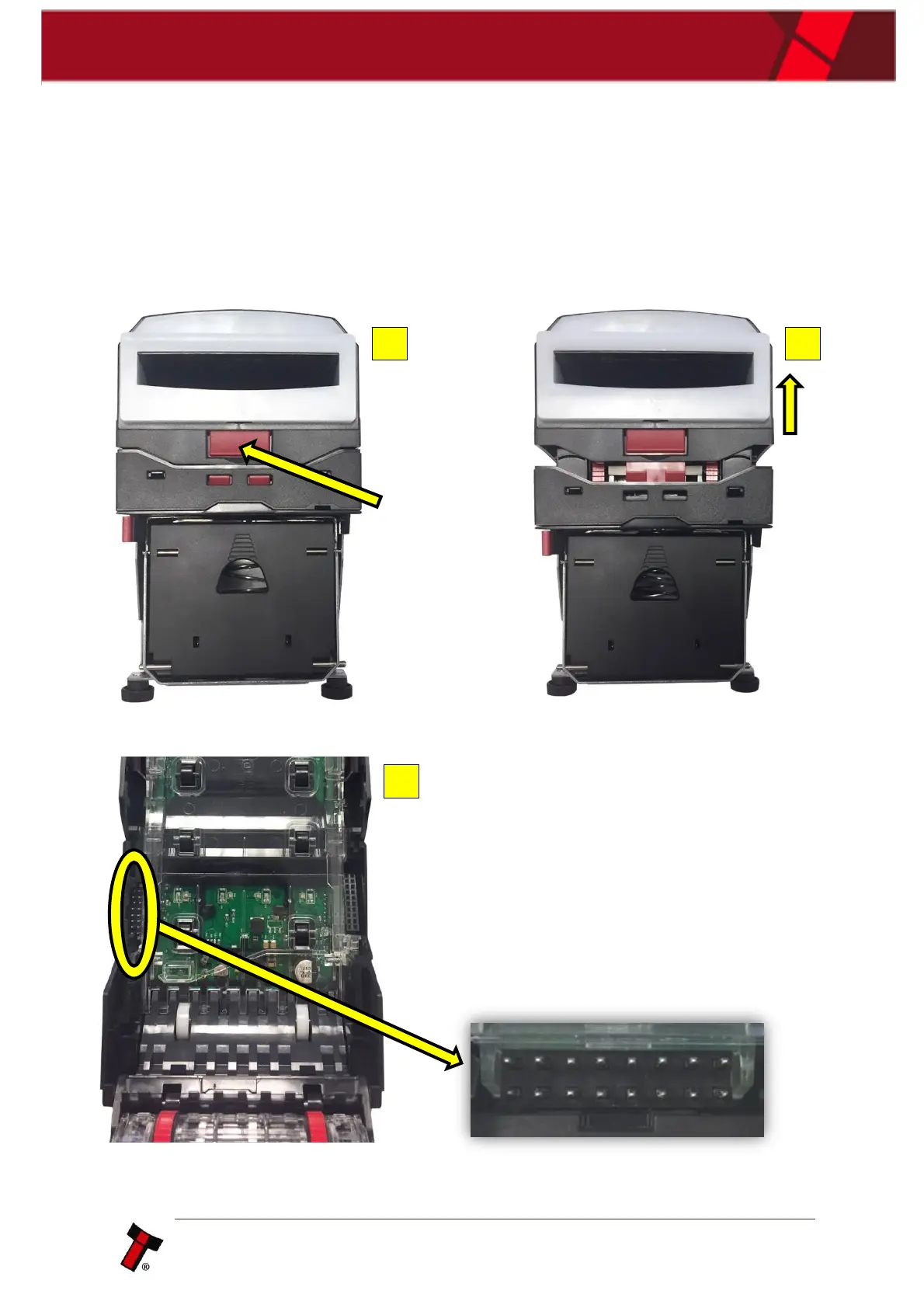

The NV9 Spectral makes use of a 16-pin socket connector to interface the NV9S to
the host machine. The 16-pin socket is located within the housing assembly, the
upper housing assembly will need to be opened before accessing the connector. To
access the interface connector, push the release catch and lift the upper housing
assembly.
Push Release
catch
Once the upper housing assembly is lifted, the
16-pin connector socket can be seen on the
left-hand side.
Lift up
1
2
3
15
1
2
16
