Mounting Multi Notefloat
1. Removing blanking plate
If the blanking plate has not
already been removed follow
4.5 Removing the Blanking
Plate

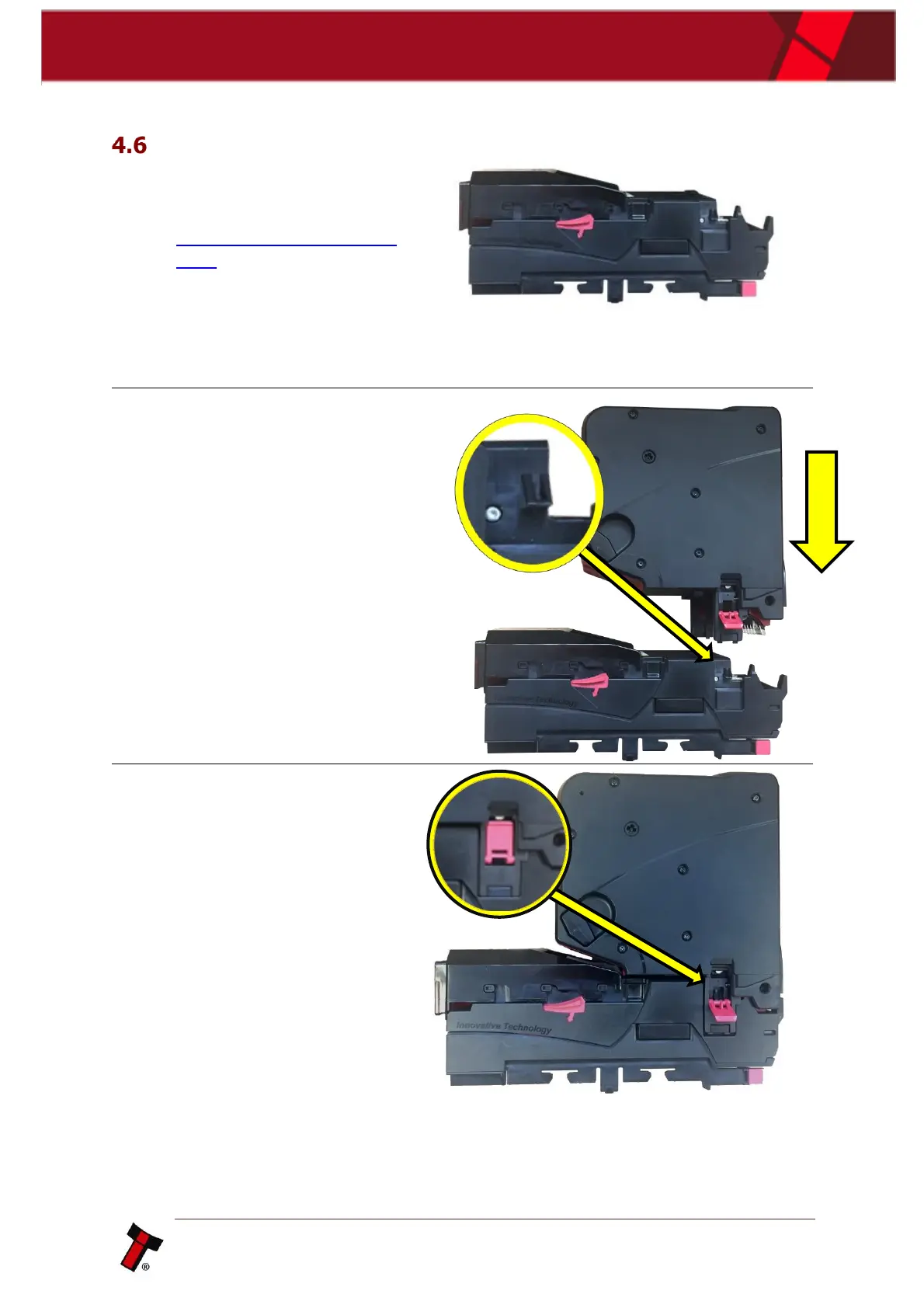

2. Positioning Multi
Notefloat
Make sure the MNF is
aligned with NV9S at the
highlighted position and
slide the MNF in to position.
Make sure the MNF’s locking
tabs are open to make it
easier to fit.
3. Locking Tabs
To Finish fitted the MNF
close the locking tabs on
both sides.
