Bezel Mounting
4.3.1 Bezel Removal

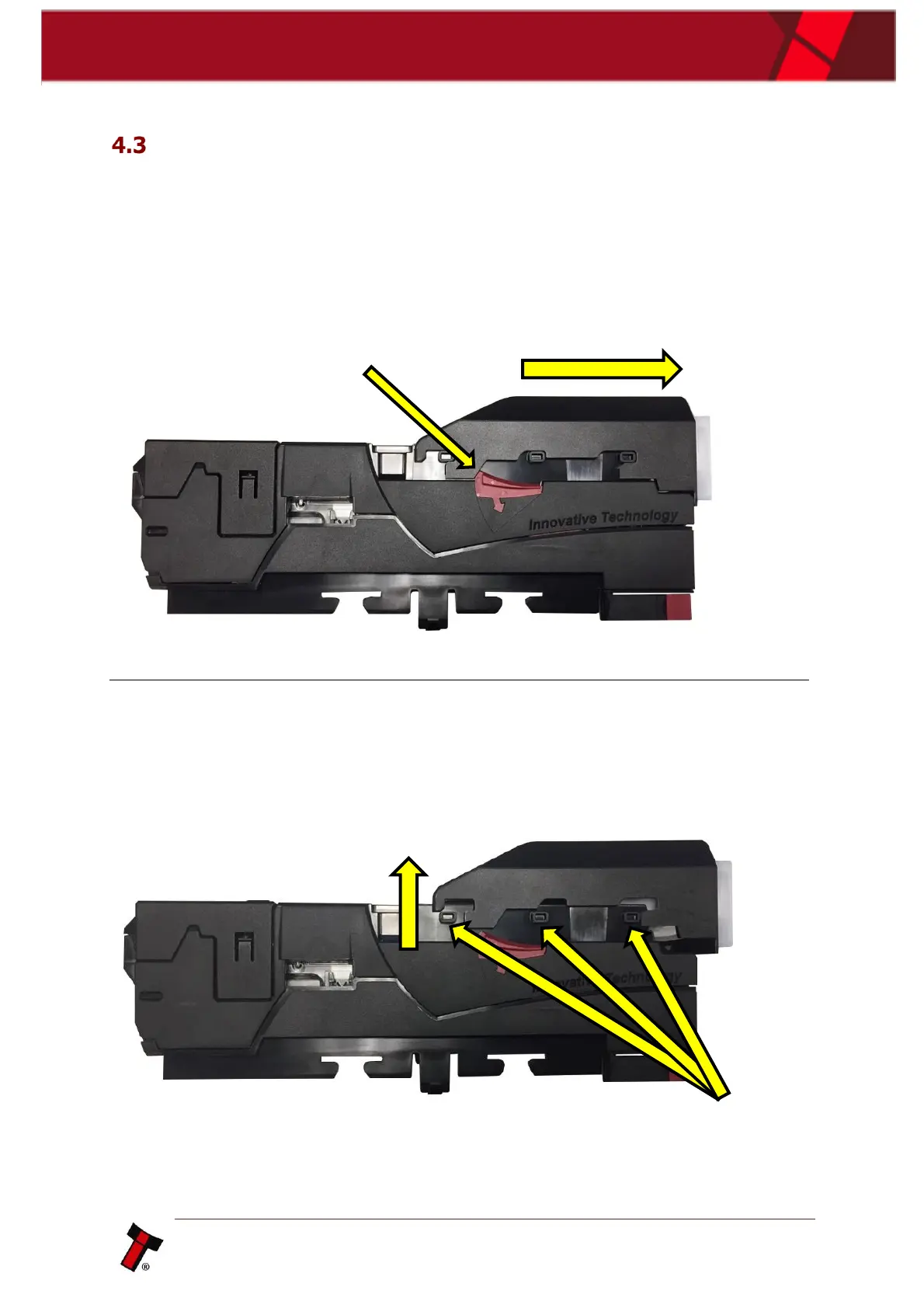

1. Bezel release catch
The bezel is removed by pushing the red bezel latches on both sides of the validator
downwards, and sliding the bezel forwards away from the bezel latches. ensure the
bezel has slid forward enough to clear the steep part of the latch.
2. Dislocating the bezel from locating pins
Lift the bezel upwards once it has been slid forward and is clear of the locating pins, the
process should not be forceful.
