6.2.3 Lozenge removal and cleaning
1. Locking clip removal

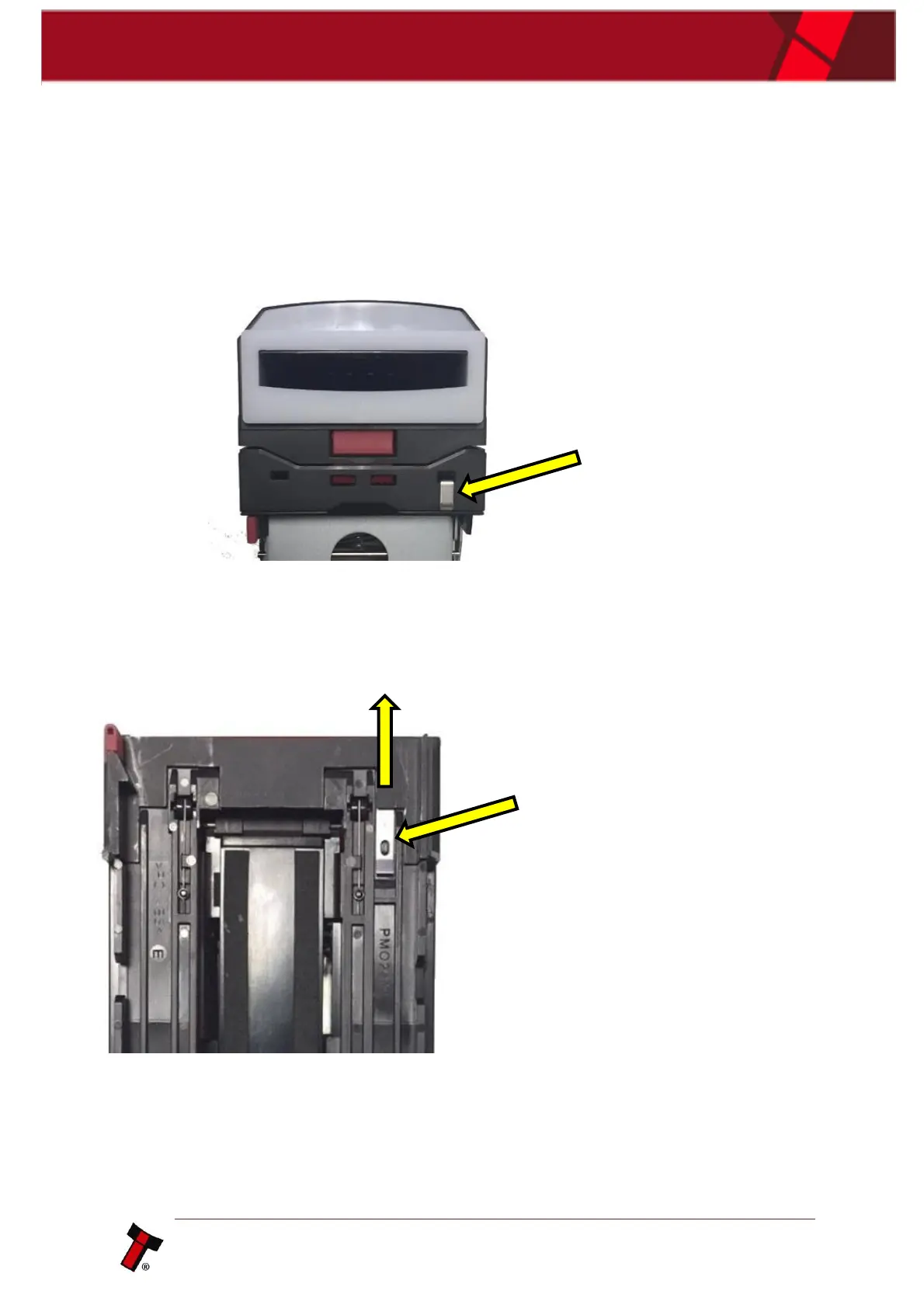

The lozenge is secured into place via a locking clip. To remove the lozenge the
locking clip must be removed. Ensure that the cashbox has been removed initially to
gain access to the locking pin on the underside of the main housing assembly.
After the cashbox is removed the locking pin can be removed by lifting the locking
pin upwards and pushing it towards the bezel.
