2. Detaching the lozenge from the housing assembly

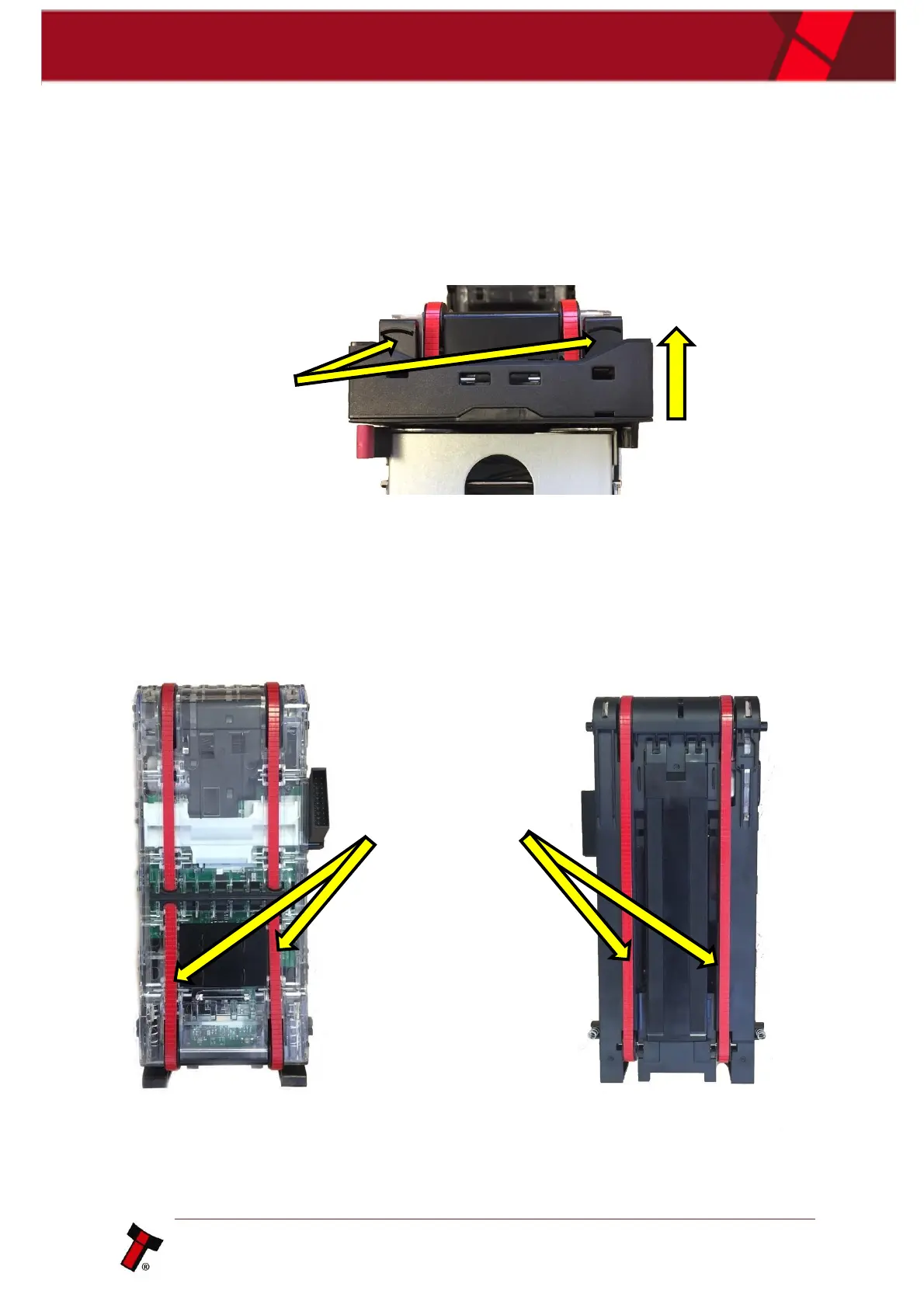

The Lozenge assembly is secured into place via the latches attached to the lozenge.
Pushing the lozenge latches forwards will release the Lozenge out of the housing
assembly, then lift up the lozenge.
3. Cleaning the lozenge
A lint free cloth dampened with water and containing a mild detergent (such as dish
detergent) can be used to clean the belts on the lozenge. ensure both the top and
bottom parts of the lozenge are cleaned.
6.2.4 Lozenge fitting
1. Push
Lozenge latch
2. Lift up
Top
Bottom
Run the cloth
down the belts
