13

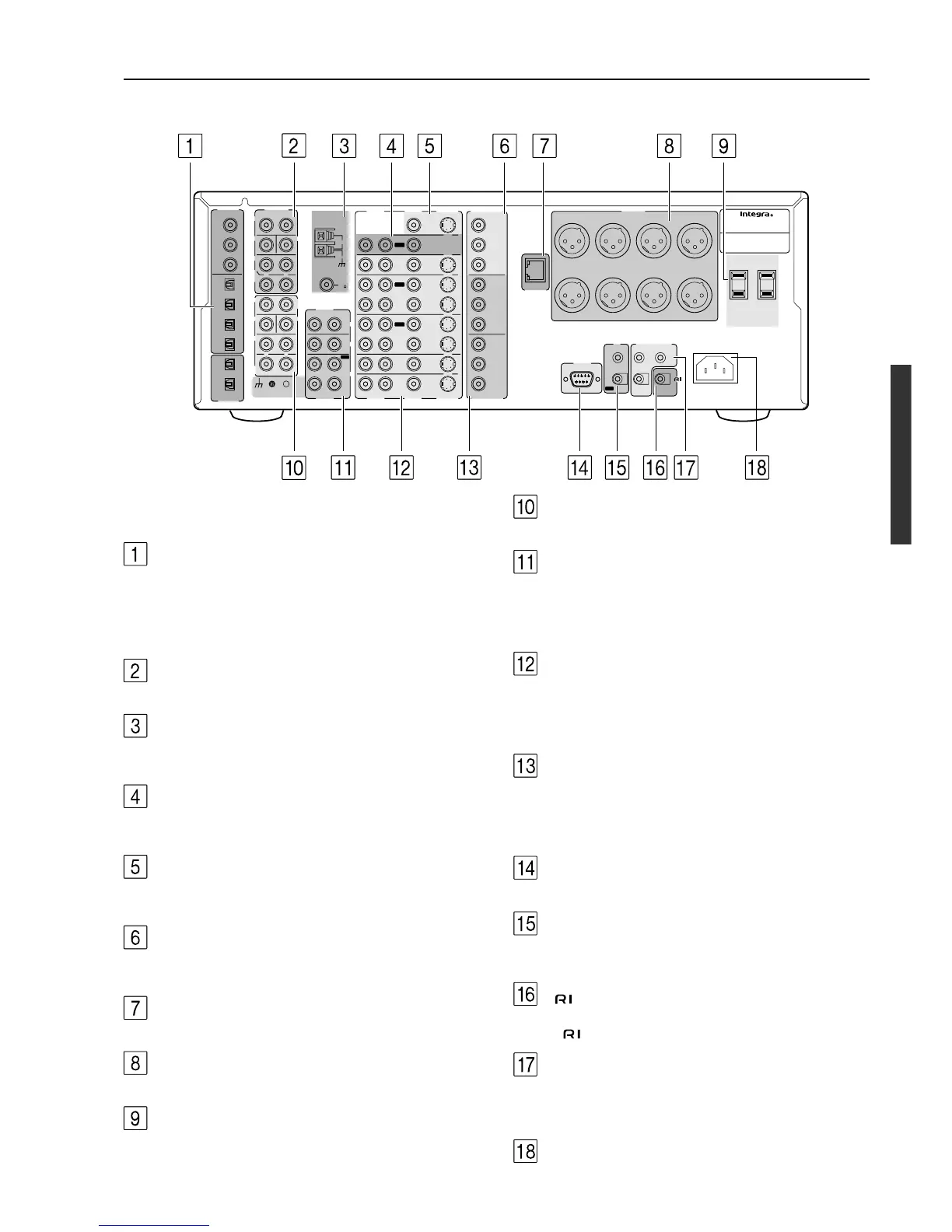

Index parts and facilities
Rear panel
AUDIO
VIDEO
S VIDEO
MONITOR
OUT
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO
VIDEO
S VIDEO
COMPONENT
VIDEO
Y
P
B
P
R
OUTPUT
INPUT 1
Y
P
B
P
R
INPUT 2
Y
P
B
P
R
R
L
OUT
OUT
OUT
PHONO
PRE OUT
FRONT
SUB
SURR
R
L
AUDIO
R
L
CD
TAPE
R
L
AUDIO
GND
SURR
BACK/
ZONE 2
IN
OUT
R
L
MULTI
CH
INPUT
FRONT
SUB
SURR
SURR
BACK
CENTER
R
L
R
L
FM
75
DIGITAL
INPUT
DIGITAL
OUTPUT
OPT
OPT
2
1
2
3
4
1
2
R
L
1
3
COAX
I
R
IN
ZONE 2
REMOTE
CONTROL
A
B
RS232
OUT
AC
120
V 60
Hz
SWITCHED
TOTAL 120W 1A MAX.
AC OUTLETS
AV CONTROLLER
MODEL NO.
DTC
-
9.4
AC
INLET
CENTER
ANTENNA
LEFTRIGHTCENTERSUBWOOFER
SURROUND
LEFT
SURROUND
RIGHT
SURR BACK
/
ZONE 2
LEFT
SURR BACK
/
ZONE 2
RIGHT
12
V
TRIGGER OUT
PRE OUT
COMPONENT
VIDEO
ETHERNET
(
NET
-
TUNE
)
AM
CONTROL
LINK OUT
For more information regarding connection procedures, see pages
indicated in brackets [ ].
DIGITAL INPUT/OUTPUT [17-21]
These jacks are for connecting components with digital input and
output capabilities. To connect a CD player, see page 17; to connect an
MD or CD recorder, see page 17; to connect a DAT deck, see page 17;
to connect a DVD player, see page 18; to connect a DVD recorder, see
page 20; and to connect a digital satellite tuner, see page 21.
PRE OUT (RCA type) [28]
Connect a power amplifier to this jack.
ANTENNA [23, 24]
These jacks are for connecting the FM indoor antenna and AM loop
antenna that are supplied with the DTC-9.4.
ZONE2 AUDIO/VIDEO OUT [25]
These jacks are for connecting the components that will be used in
the remote zone (Zone 2).
MONITOR OUT VIDEO/S VIDEO [19]
These jacks are for connecting to the video input jacks on television
monitors or projectors.
COMPONENT VIDEO OUTPUT [19]
These jacks are for connecting to the component video input jacks on
television monitors or projectors.
ETHERNET (NET-TUNE) [43]
This connector is for connecting to an Ethernet network.
PRE OUT (XLR type) [29]
Connect a power amplifier to this jack.
AC OUTLETS [27]
This AC outlet is provided to plug in the power cord from another
component.
MULTI CH INPUT [28]
This connector is for connecting components with a multi-channel output.
PHONO/CD/TAPE AUDIO IN/OUT [17]
These connectors are for connecting to the audio input and output
jacks on audio components. To connect a turntable, see page 17; to
connect a CD player, see page 17; and to connect a cassette tape
deck, MD recorder, or CD recorder, see page 17.
DVD/VIDEO1-4 IN/OUT [18-21]
These connectors are for connecting to the video input and output
jacks on video components. To connect a DVD player, see page 18;
to connect a DVD recorder, see page 20; to connect a VCR, see page
19; and to connect a Satellite tuner, see page 21.
COMPONENT VIDEO INPUT1/2 [18-20]
These connectors are for connecting to the component video outputs
of video components that have them. To connect a DVD player, see
page 18; to connect a DVD recorder, see page 20; and to connect a
Satellite tuner, see page 21.
RS232 [27]
This connector is for connecting to the RS-232 port of an external device.
IR IN/OUT [26]
These connectors are for connecting the remote sensor of a multi-
room kit (sold separately).
[27]
This jack is for connecting other Onkyo components equipped with
the same terminal.
12V TRIGGER OUT ZONE 2/A/B (CONTROL LINK
OUT) [28]
These connectors are used to connect to the 12V TRIGGER IN
terminal of a component if one has one.
AC INLETS [7]
This connector is for connecting the supplied power cord.
