Connecting to Audio/Video equipment
Be sure to always refer to the instructions that came with the
component that you are connecting.
Do not plug in the power cord until all connections have been
properly made.
For input jacks, red connectors (marked R) are used for the
right channel, white connectors (marked L) are used for the
left channel, and yellow connectors (marked VIDEO) are
used for video connection.
Insert all plugs and connectors securely. Improper
connections can result in noise, poor performance, or
damage to the equipment.
Do not bind audio/video connection cables with power cords
and speaker cables. Doing so may adversely affect the
picture and sound quality.
The optical digital jacks are all of the shutter-type
construction. Connect an optical cable by first making sure
the cable is oriented correctly and then inserting it into the
jack pushing the shutter lid inwards.
Improper connection
Inserted completely
Audio connection cable
Component video
connection cable
Video connection cable
S video connection cable
Coaxial cable
Optical cable
Left (white)
Right (red)
L
R

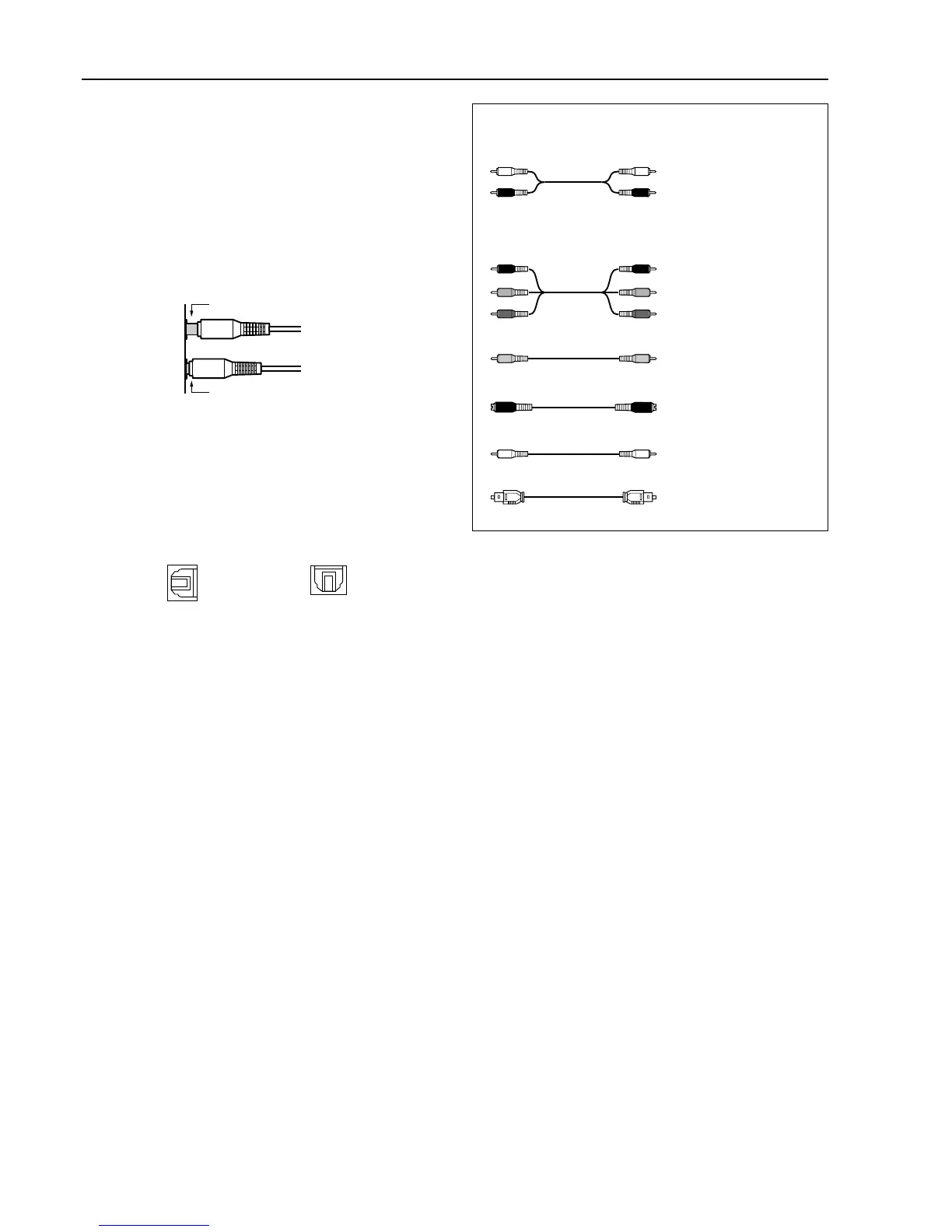

Cables are depicted in the connection diagrams as shown below.
P
R
P
B
Y
P
R
P
B
Y
Rear optical jack Front optical jack
