• Place these speakers so that their height is 3 feet (1 meter) higher
than that of the listener’s ears.
Subwoofer
When bass sound is reproduced, its volume and quality greatly
depend on subwoofer placement. Those characteristics also depends
on the shape of your listening room as well as your listening point.
Generally speaking, good bass sound is obtained when the
subwoofer is placed in the corner of the room or at one-third the
length of the room.
For optimizing the subwoofer placement, we recommend you to:
• Play a movie or music source containing good quality base sound,
• Take some experimenting while changing subwoofer’s position
in the room, and
• Try different positioning until you get the most out of the base
sound while fixing the listening point.
Most dipoles have an arrow on them to indicate their orientation in
which that should be placed. For the correct acoustical phasing in the
room, dipolar surround speakers should be placed so that their
arrows point forward toward the screen.
Speaker configuration and placement
Be aware that for surround playback, the configuration and
placement of your speakers are both very important.
For THX surround EX playback, we recommend that you use a
THX speaker system that is certified by THX Ltd.
Ideal speaker configuration
• Front right and left speakers
• Center speaker
Produces a rich sound image by serving as a sound source for
the front right and left speakers and enhancing the sonic
movement.
• Surround right and left speakers
Adds three-dimensional sonic movement and produces
environmental sound associated with the background and effect
sound for each scene.
• Surround back right and left speakers
Required for enjoying Dolby Digital EX, THX Surround EX,
DTS-ES Matrix 6.1, or DTS-ES Discrete 6.1 audio.
• Subwoofer
Produces powerful and heavy bass.
Minimum speaker configuration for surround
sound playback
• Front right and left speakers
• Surround right and left speakers
The sound recorded for the center speaker and the subwoofer will be
properly distributed to the front right and left speakers for optimized
surround playback.
Speaker placement
Ideal speaker placement varies depending on the size of your room
and the wall coverings. Here, only typical example of speaker
placement and recommendations are shown.
In order to create the optimum conditions for the best sound quality,
be sure to place all the speakers so that the greatest difference
between the distances of each speaker to the listening position is
less than 20 feet (6 meters).
Important points regarding speaker placement
Front left and right speakers and center speaker
• Place these three speakers all at the same height.
• Place each speaker so that it is aimed at the location of the
listener’s ears when at the listening position.
• Place the right and left loudspeakers at an equal distance either
side of the listening point.
Surround left and right speakers
• Place these speakers so that their height is 3 feet (1 meter)
higher than that of the listener’s ears.
Surround back left and right speakers
• For maximum effect of the new THX Ultra2 feature, place these
two speakers as close together as possible. Dipolar speakers,
however, should be placed apart the required amount.

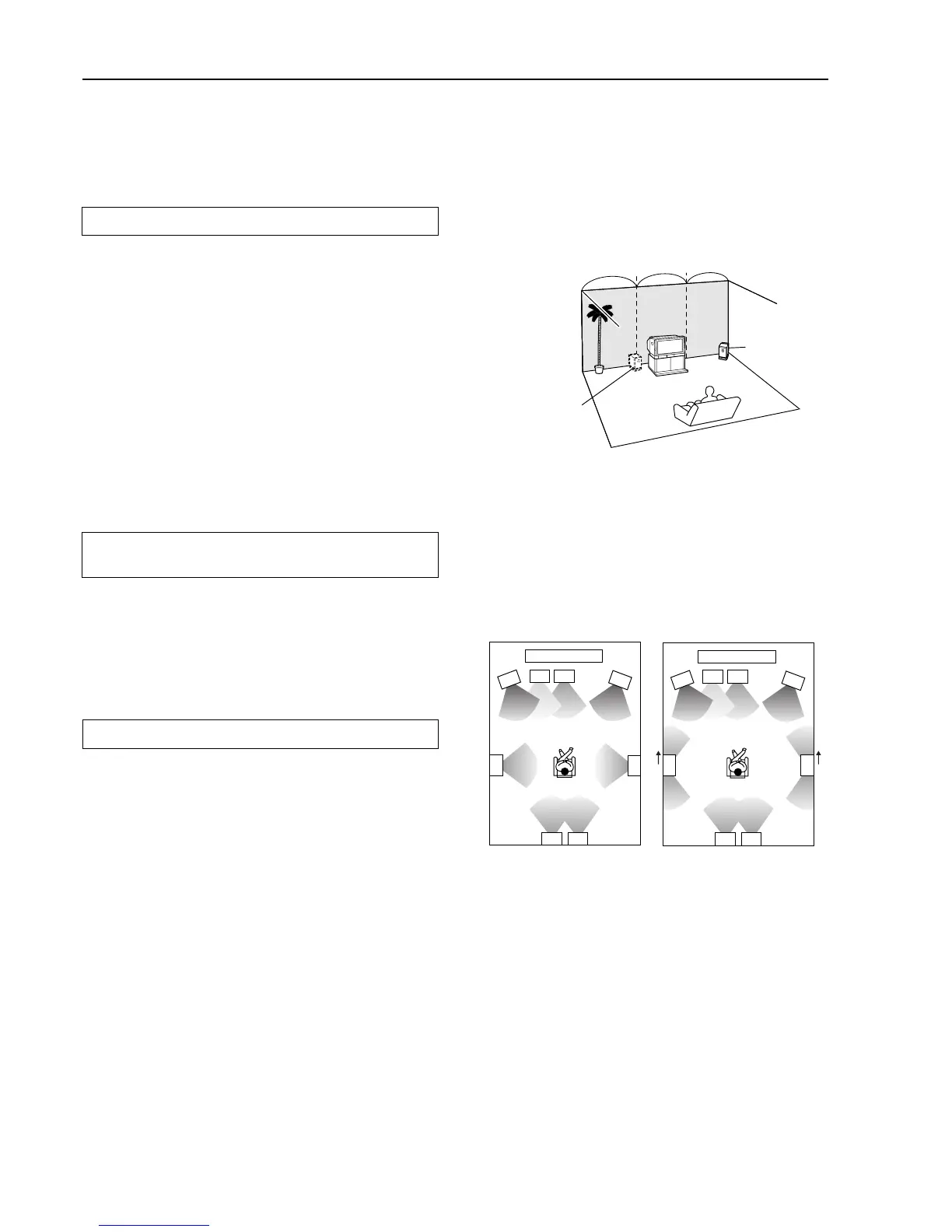

1/3 room length
Corner
6 Surround left speaker
7 Surround right speaker
8 Surround back left speaker
9 Surround back right speaker
10 Listening position
1 TV or screen
2 Front left speaker
3 Subwoofer
4 Center speaker
5 Front right speaker
Layout with speakers
Layout with dipolar
speakers
2
34
5
6
7
10
1
2
34
5
10
1
67
89
89
