Intel BX80623I32100 User Manual

Datasheet, Volume 1 43
Power Management
4 Power Management
This chapter provides information on the following power management topics:
• Advanced Configuration and Power Interface (ACPI) States
• Processor Core
• Integrated Memory Controller (IMC)
• PCI Express*
• Direct Media Interface (DMI)
• Processor Graphics Controller

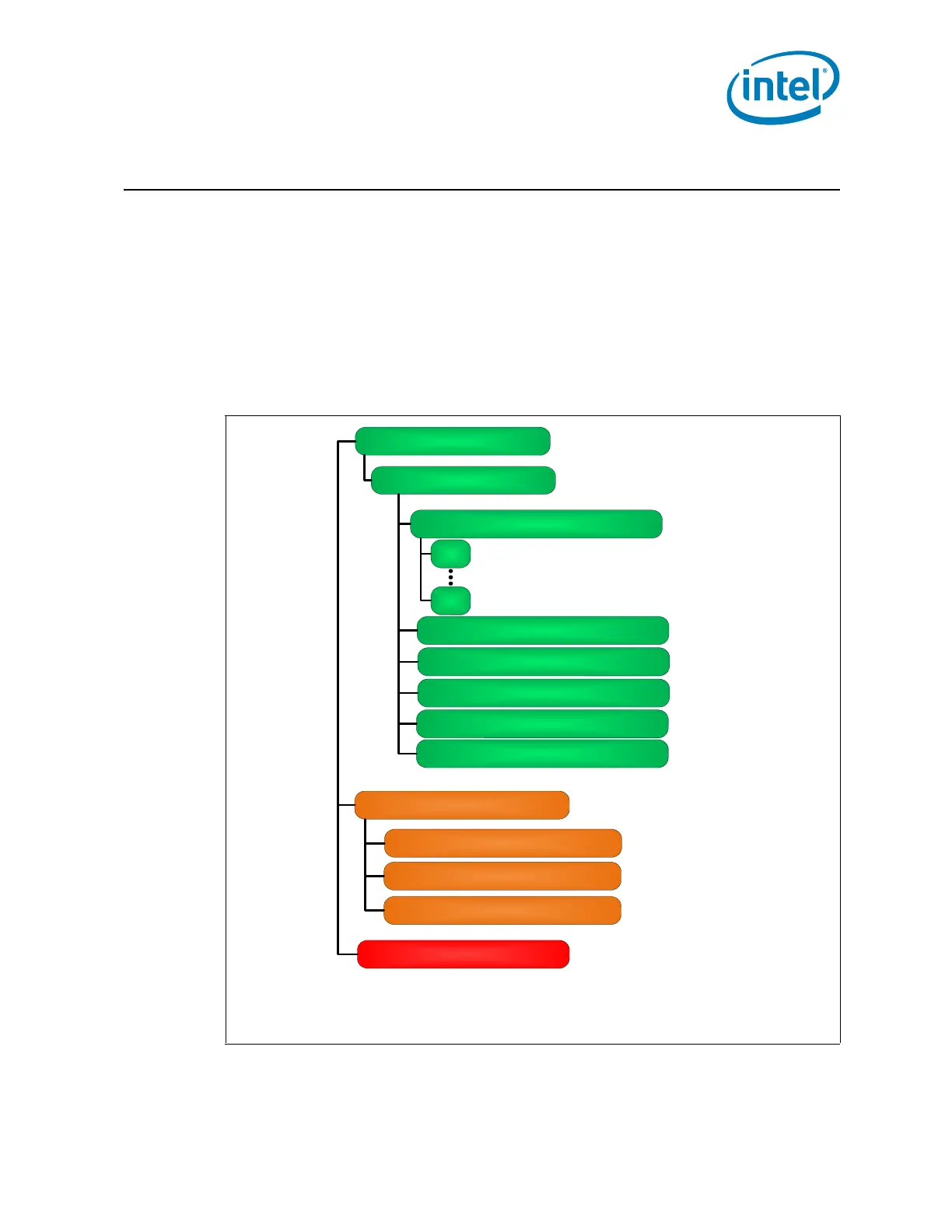

Figure 4-1. Power States
G0 – Working
S0 – CPU Fully powered on
C0 – Active mode
C1 – Auto halt
C1E – Auto halt, low freq, low voltage
C3 – L1/L2 caches flush, clocks off
C6 – save core states before shutdown
C7 – similar to C6, L3 flush
G1 – Sleeping
S3 cold – Sleep – Suspend To Ram (STR)
S4 – Hibernate – Suspend To Disk (STD),
Wakeup on PCH
S5 – Soft Off – no power,
Wakeup on PCH
G3 – Mechanical Off
P0
Pn
* Note: Power states availability may vary between the different SKUs
