Product Description
15

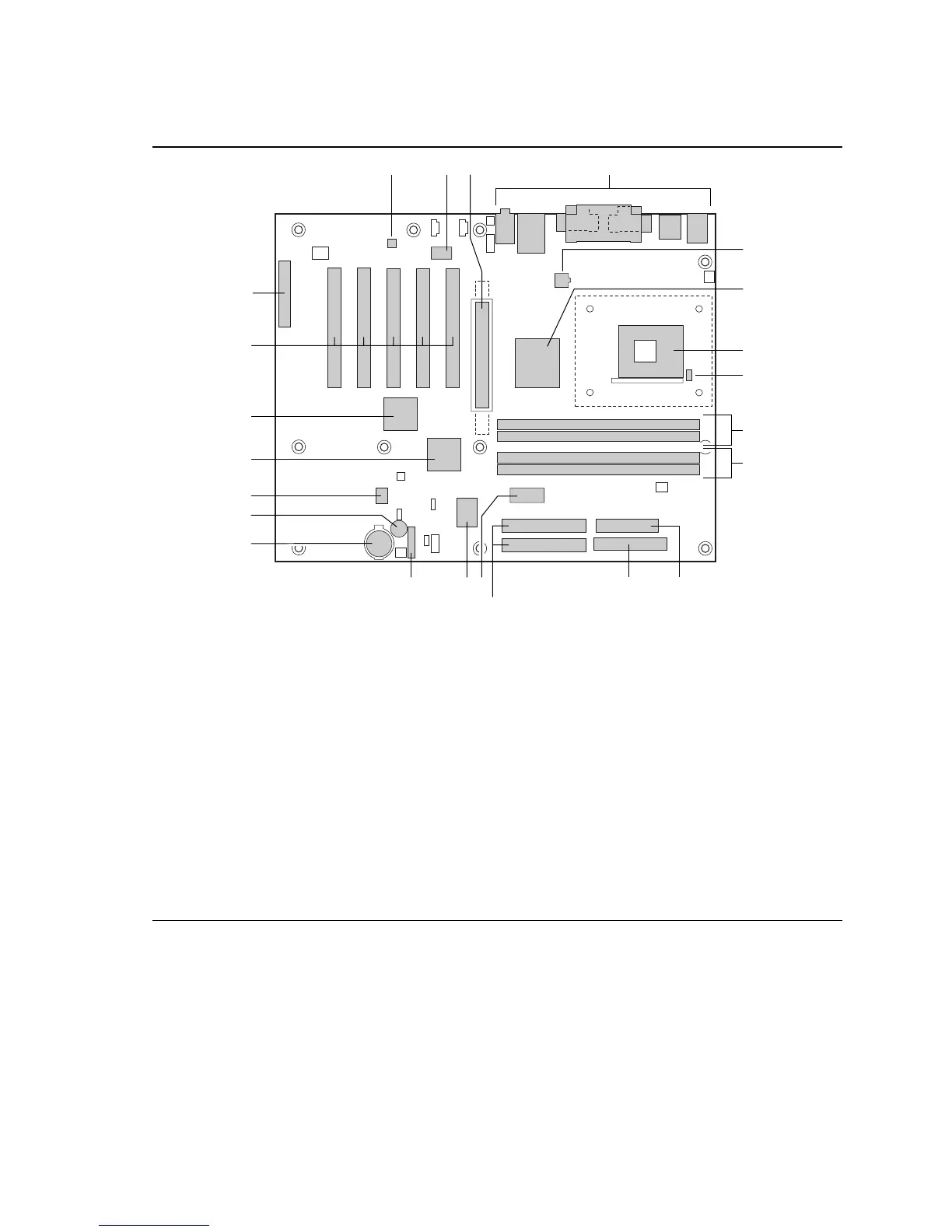

Figure 2 shows the location of the major components on the D850MV board.
OM12321
D
C
G
H
F
E
M
KP L
A
W
S
R
Q
I
J
T
NO
B
U
V
A AD1885 audio codec M IDE connectors
B Intel 82562ET PLC device (optional) N Auxiliary power connector (optional)
C AGP connector
(AGP Pro50 connector optional)
O SMSC
LPC47M142 I/O controller
(SMSC LPC47M132 I/O controller optional)
D Back panel connectors P Front panel connector
E +12 V power connector (ATX12V) Q Battery
F Intel
82850 MCH R Speaker
G mPGA478 processor socket S Intel
82802AB 4 Mbit FWH
H Hardware monitor T Intel
82801BA ICH2
I RAMBUS Bank 0 (RIMM1 and RIMM2) U NEC
µPD720100 USB 2.0 host controller (optional)
J RAMBUS Bank 1 (RIMM3 and RIMM4) V PCI bus add-in card connectors
K Power connector W CNR connector (optional)
L Diskette drive connector
Figure 2. D850MV Board Components
