Intel D850MVSE - Location of the Standby Power Indicator LED

Product Description
45
The standby power indicator LED shows that power is still present at the RIMM, PCI bus, AGP,
and CNR connectors, even when the computer appears to be off. Figure 11 shows the location of
the standby power indicator LED.
CR7F1
OM12322

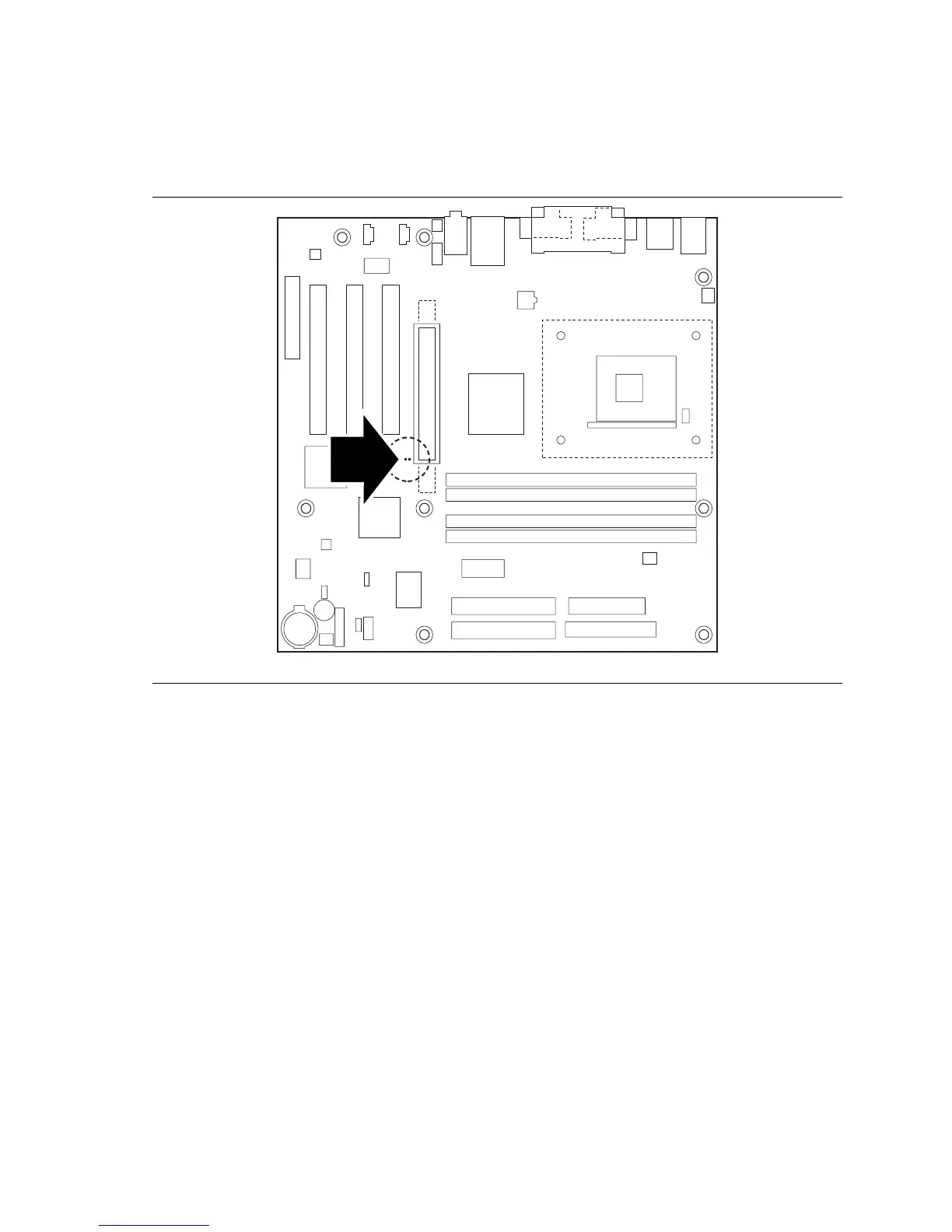

Figure 11. Location of the Standby Power Indicator LED
1.14.2.5 Wake from USB
USB bus activity wakes the computer from an ACPI S1 or S3 state.
✏
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB.
1.14.2.6 Wake from PS/2 Keyboard
PS/2 keyboard activity wakes the computer from an ACPI S1 or S3 state.
1.14.2.7 PME# Wake-up Support
When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI S1, S3, S4,
or S5 state (with BIOS support).
