Technical Reference
77
2.10.2 D850MV Form Factor
The D850MV board is designed to fit into an ATX form factor chassis. Figure 20 illustrates the
mechanical form factor for the D850MV board. Dimensions are given in inches [millimeters].
The outer dimensions are 12.00 inches by 9.60 inches [304.48 millimeters by 243.84 millimeters].
Location of the I/O connectors and mounting holes are in compliance with the ATX specification
(see Section 1.5).
OM12331
6.10[154.94]
3.10[78.74]
0.55[13.97]
0.80
[20.32]
9.05[229.87]
6.50[165.10]
8.80
[223.52]
5.20[132.08]
2.85[72.39]
2.60
[66.04]
0.00
0.00

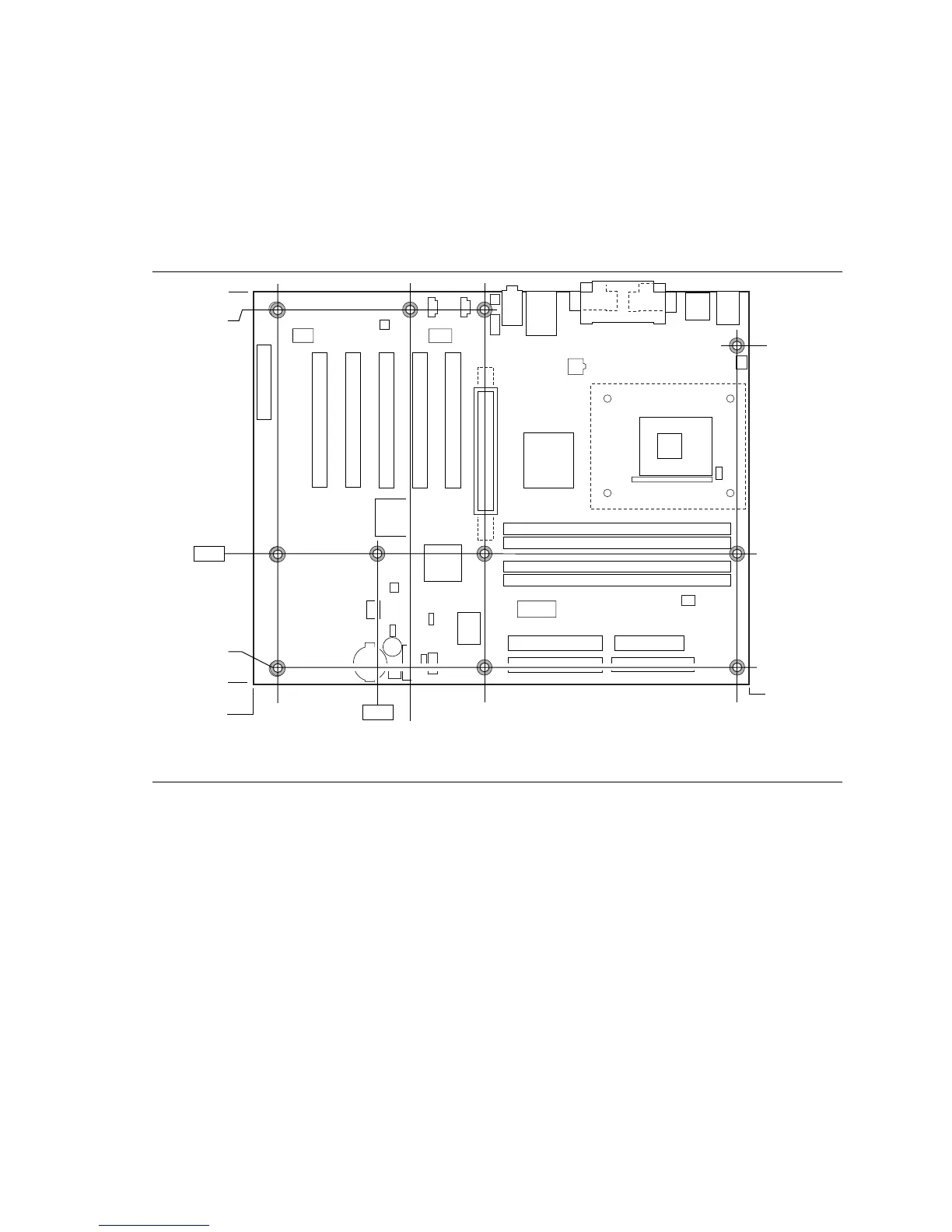

Figure 20. D850MV Board Dimensions
✏
NOTE
There may be mechanical interference with installed RDRAM modules in some combinations of
ATX chassis and peripherals, such as CD-ROM drives.
