Intel Desktop Board D850MD/D850MV Technical Product Specification
54
2.8.1 Back Panel Connectors

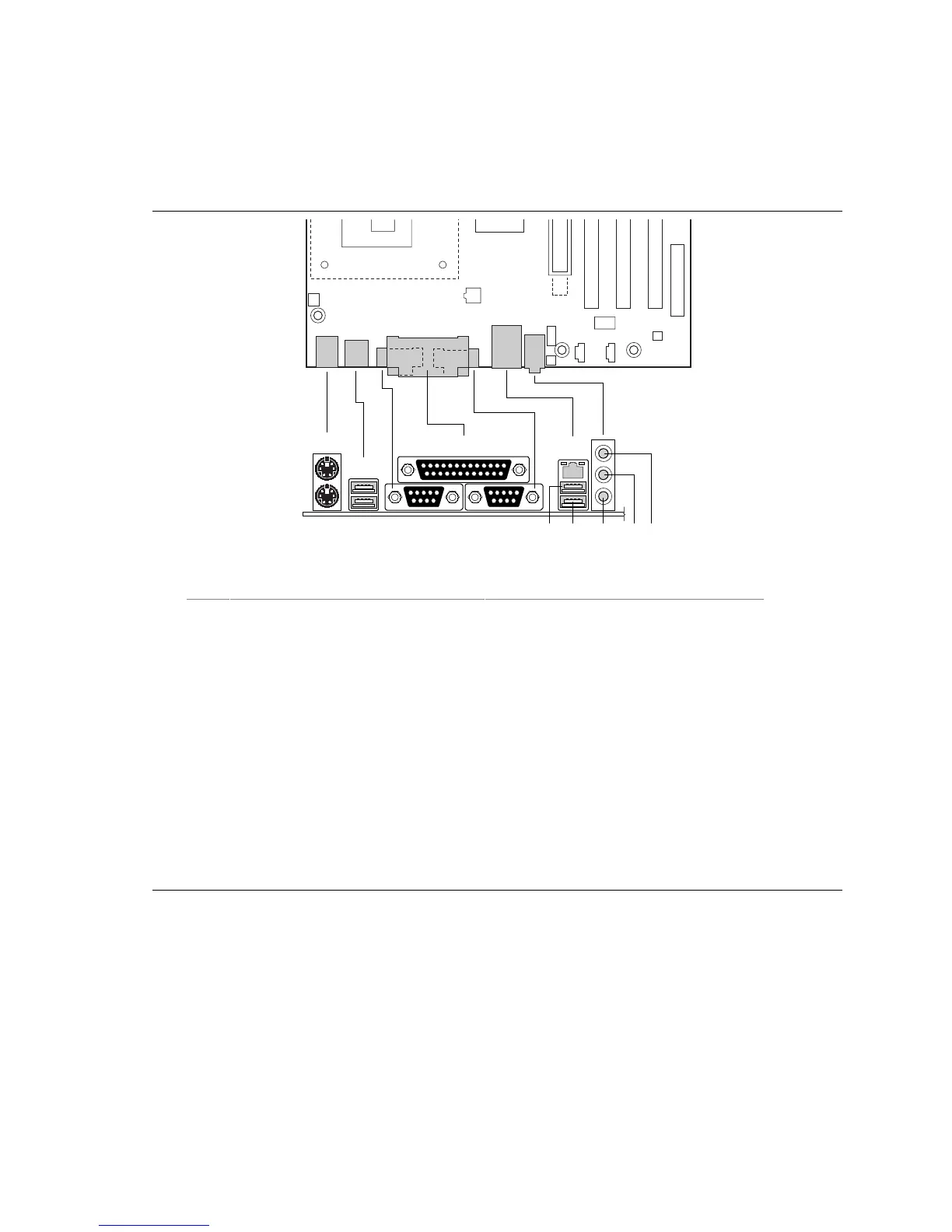

Figure 12 shows the location of the back panel connectors. The back panel connectors are color
coded in compliance with PC 99 recommendations. The figure legend below lists the colors used.
OM12323
A
F
C
H
BEGKJDI
LM
Item Description Color For more information see:
A PS/2 mouse port Green Table 19, page 55
B PS/2 keyboard port Purple Table 19, page 55
C USB port Black Table 20, page 55
D USB port Black Table 20, page 55
E Serial port A Teal Table 22, page 56
F Parallel port Burgundy Table 21, page 55
G Serial port B Teal Table 22, page 56
H LAN (optional) Black Table 23, page 56
I USB port Black Table 20, page 55
J USB port Black Table 20, page 55
K Mic in Pink Table 26, page 56
L Audio line out Lime green Table 25, page 56
M Audio line in Light blue Table 24, page 56
Figure 12. Back Panel Connectors
✏
NOTE
The USB ports adjacent to the PS/2 ports are not populated if the USB 2.0 option is supported.
✏
NOTE
The back panel audio line out connector is designed to power headphones or amplified speakers
only. Poor audio quality occurs if passive (nonamplified) speakers are connected to this output.
