Intel Desktop Board D850MD/D850MV Technical Product Specification
60
2.8.2.3 Power and Hardware Control Connectors

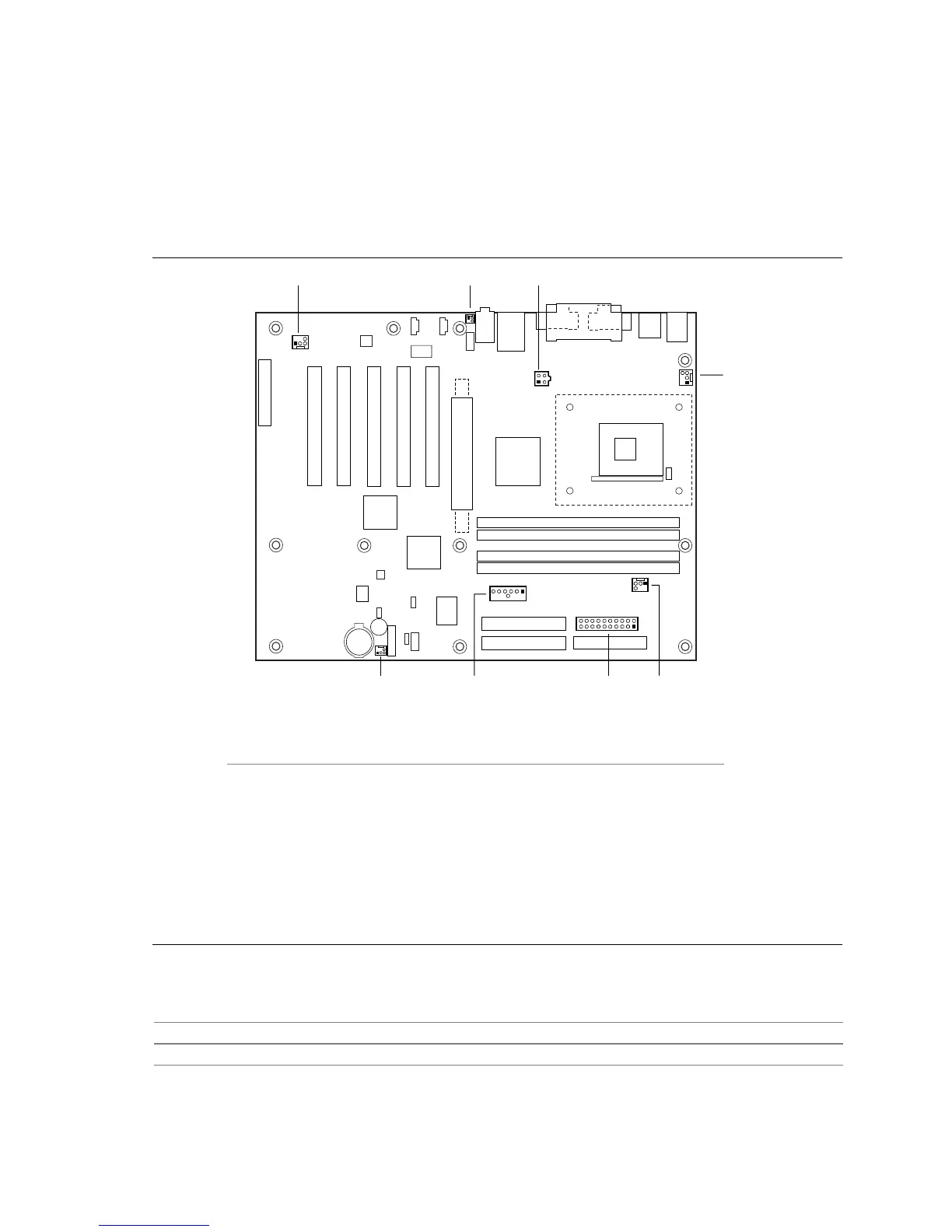

Figure 14 shows the location of the power and hardware control connectors.
✏
NOTE
Figure 14 shows the D850MV board. Fan 3 is not present on the D850MD board.
OM12325
C
D
EH F
A
G
B
1
4
3
2
1
1
3
1
3
1
6
1
Item Description For more information see:
A Fan 3 (D850MV board only) Table 29, page 61
B Chassis intrusion Table 30, page 61
C ATX12V power Table 31, page 61
D Processor fan Table 32, page 61
E Fan 1 Table 33, page 61
F Main power Table 34, page 62
G Auxiliary power (optional) Table 35, page 62
H Fan 2 Table 36, page 62
Figure 14. Power and Hardware Control Connectors
For information about Refer to
The power connector Section 1.14.2.1, page 42
The functions of the fan connectors Section 1.14.2.2, page 43
