Intel D850MVSE - Add-In Board and Peripheral Interface Connectors (D850 MV Board)

Intel Desktop Board D850MD/D850MV Technical Product Specification
64
OM12327
G
J
K
H
A
I
B C D E
F
1
2
33
34
1
2
40
39
1
2
40
39
Item Description For more information see:
A CNR (optional) Table 37, page 65
B PCI bus connector 5 Table 38, page 66
C PCI bus connector 4 Table 38, page 66
D PCI bus connector 3 Table 38, page 66
E PCI bus connector 2 Table 38, page 66
F PCI bus connector 1 Table 38, page 66
G AGP connector Table 39, page 67
H Diskette drive Table 40, page 68
I Primary IDE Table 41, page 69
J Secondary IDE Table 41, page 69
K SCSI hard drive activity LED Table 42, page 69

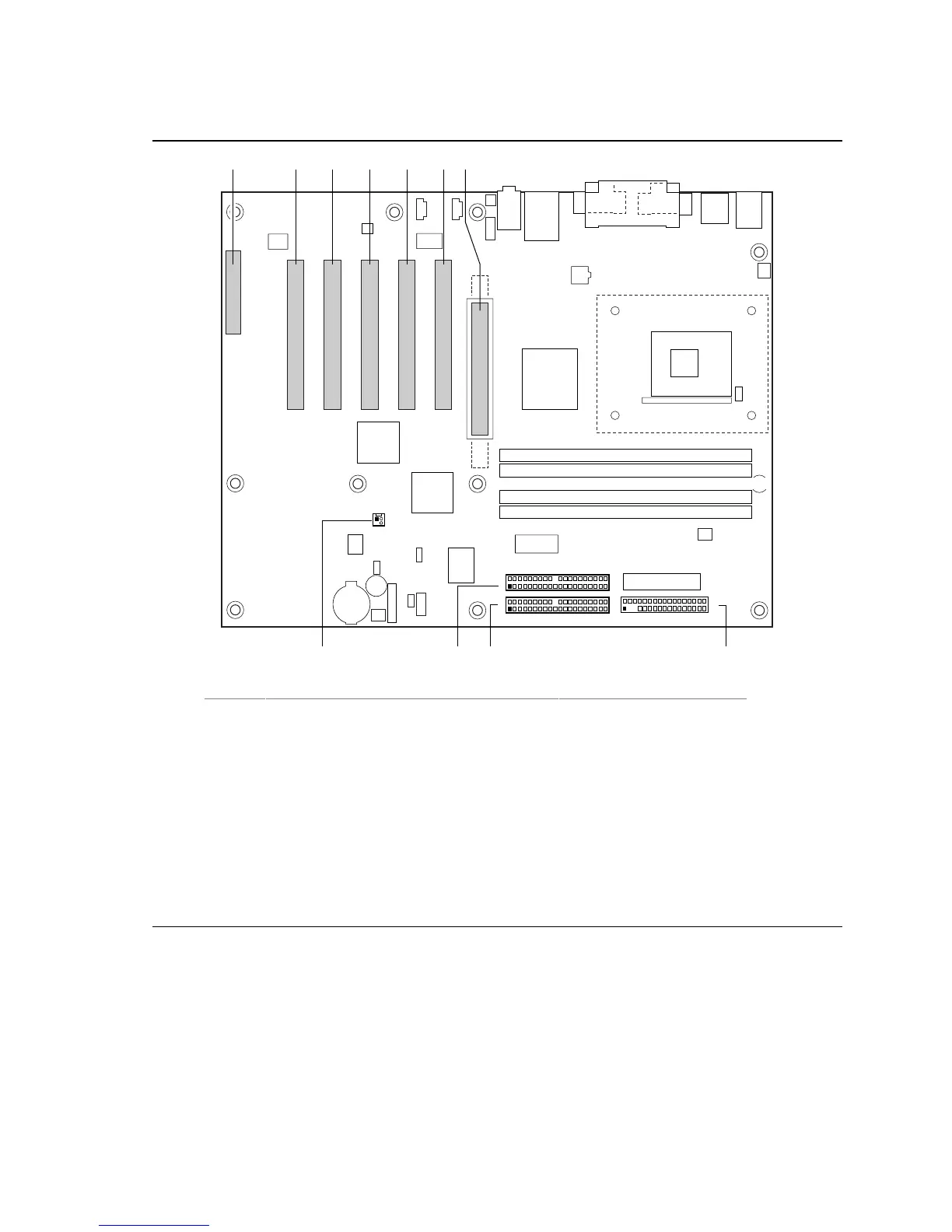

Figure 16. Add-in Board and Peripheral Interface Connectors (D850MV Board)
