Intel D850MVSE - Add-In Board and Peripheral Interface Connectors (D850 MD Board)

Technical Reference
63
OM12326
E
A
DCB
G
1
2
33
34
1
2
40
39
1
2
40
39
FH
1
I
Item Description For more information see:
A CNR (optional) Table 37, page 65
B PCI bus connector 3 Table 38, page 66
C PCI bus connector 2 Table 38, page 66
D PCI bus connector 1 Table 38, page 66
E AGP connector Table 39, page 67
F Diskette drive Table 40, page 68
G Primary IDE Table 41, page 69
H Secondary IDE Table 41, page 69
I SCSI hard drive activity LED Table 42, page 69

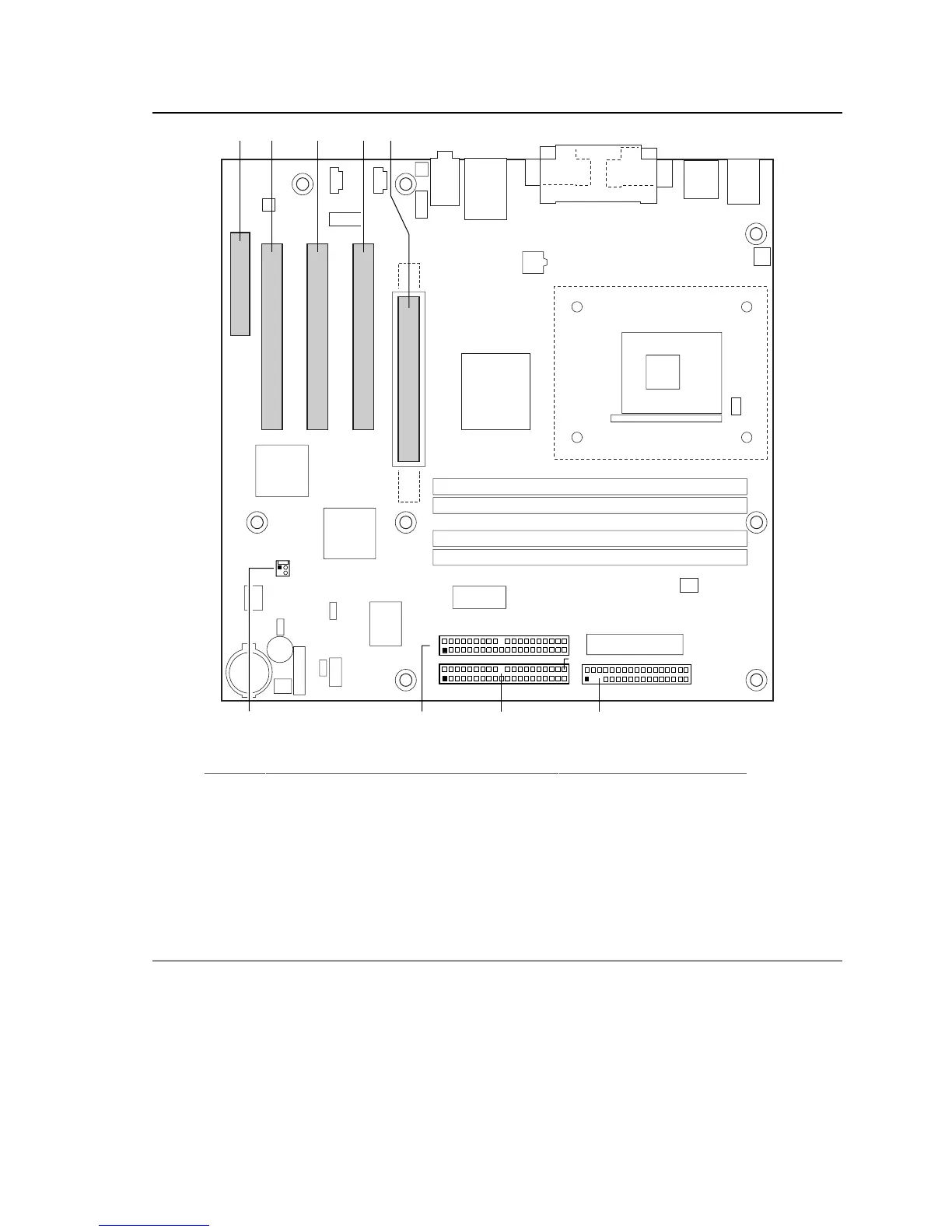

Figure 15. Add-in Board and Peripheral Interface Connectors (D850MD Board)
