Intel Desktop Board D850MD/D850MV Technical Product Specification
58
2.8.2.2 Audio Connectors

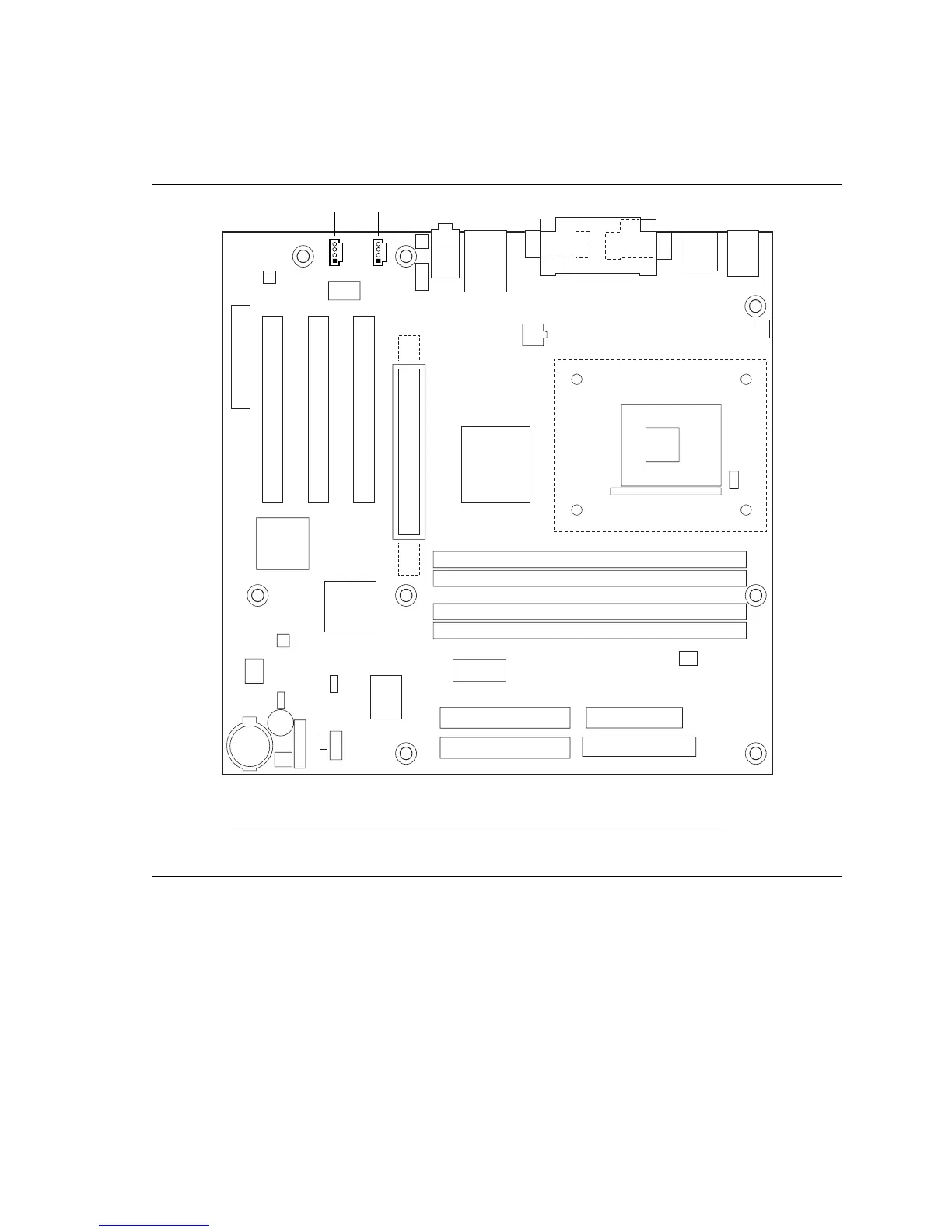

Figure 13 shows the location of the audio connectors.
OM12324
B
1
4
A
1
4
Item Description Color For more information see:
A Auxiliary line in, ATAPI style White Table 27, page 59
B ATAPI CD-ROM Black Table 28, page 59
Figure 13. Audio Connectors
✏
NOTE
The front panel audio connector is described in Section 2.8.3, beginning on page 70.
