6.2.4 CMOS Clear
Table 94. CMOS Clear Jumper Setting
Jumper Description Setting
J2H1 CMOS Clear 1-2: CMOS Clear by BMC (default)
2-3: CMOS Clear Force Erase
Procedure of CMOS Clear by BMC:
Push power botton to power off, and then pressed the reset
botton continually, then push the power botton once.

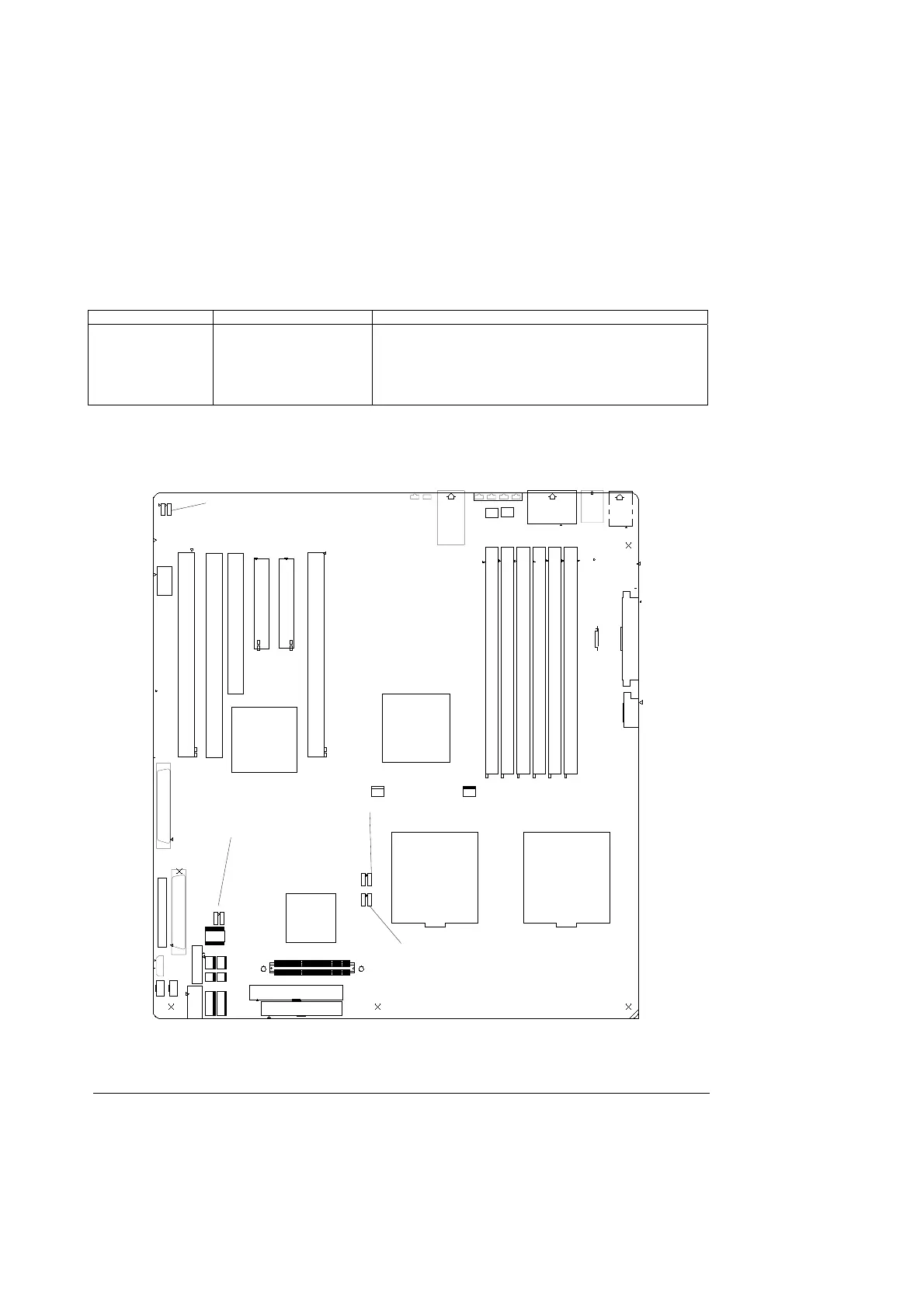

Figure 16. Jumper Locations
U
ATA-100 Primary
Floppy
BATTERY
J1B1
Rolling BIOS
Bank
J2H1
CMOS Clear
J4H1
BIOS
Recovery
J4H3
Password
Clear
