Product Overview Intel® Server Board SE7520BD2 Technical Product Specification
4 Revision 1.3
2.2 Server Board Illustration
The following figure provides a high-level illustration of the Server Board SE7520BD2.

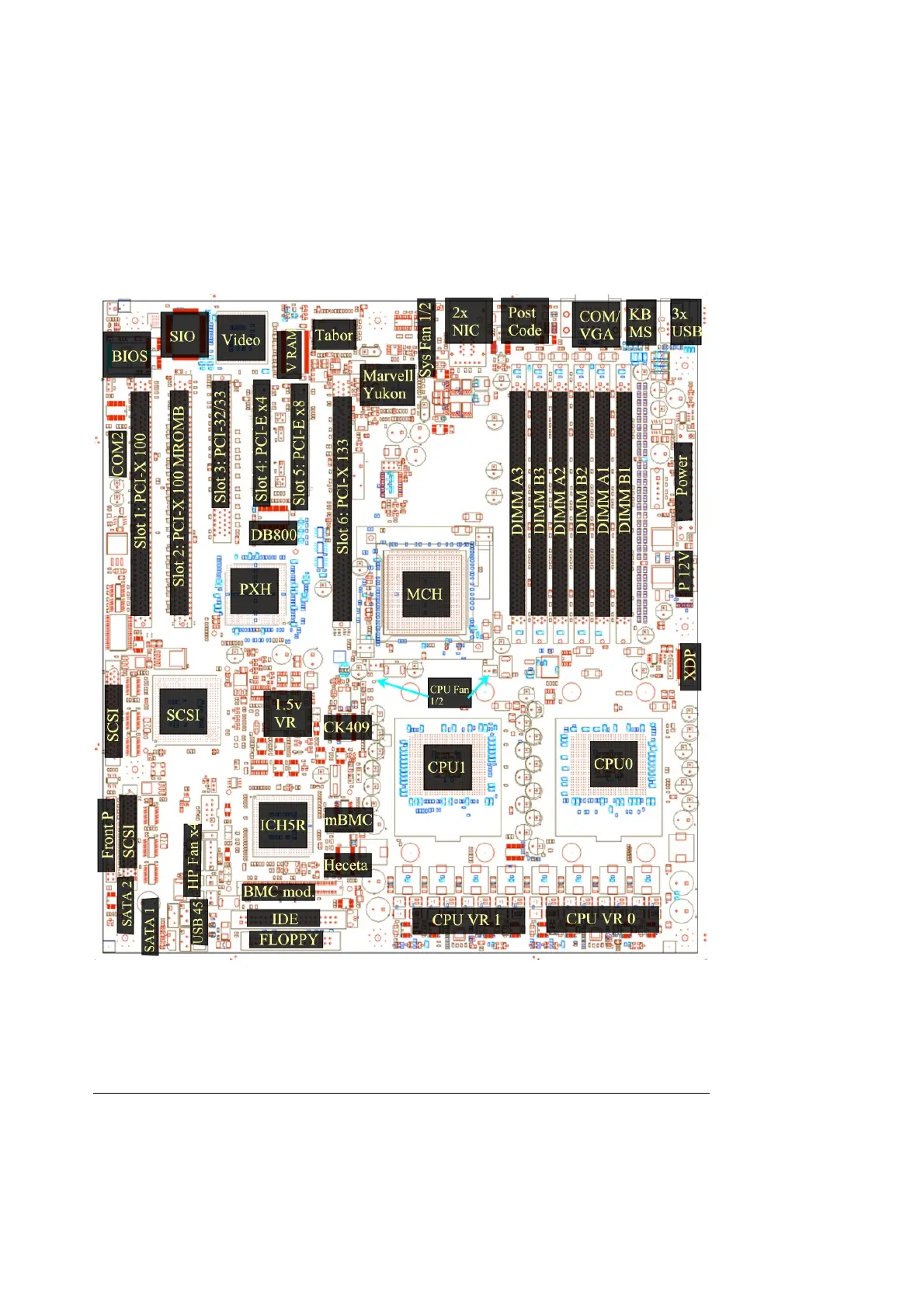

Figure 1. Top Side View of the Intel® Server Board SE7520BD2
