12 i3/i4 Satellite Antenna System – Install and User Manual
Mark of the antenna parking position

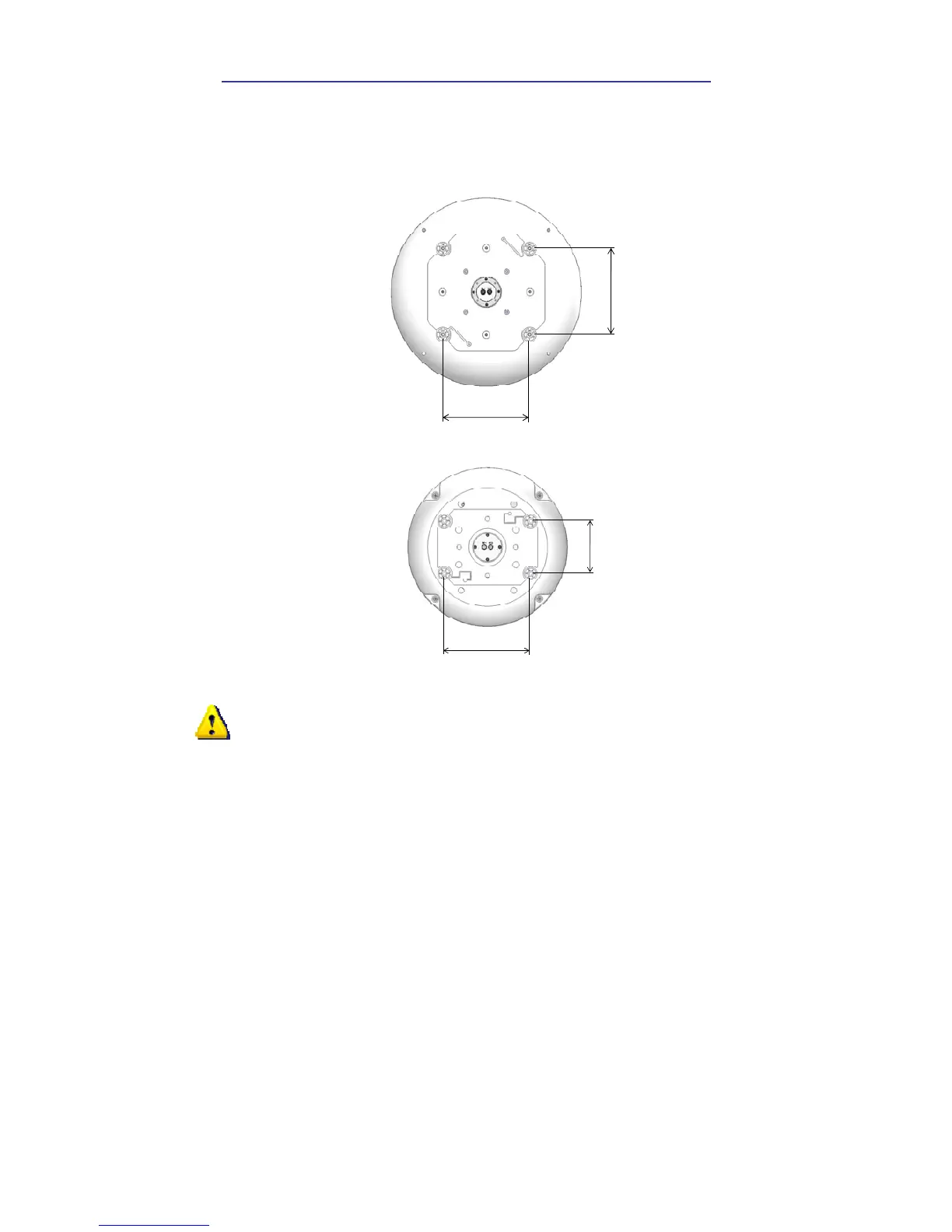

Referring to the size in the drawing, mark where antenna is to be parked on
board the ship (it must be a flat surface) or on a separate power tower by
drawing.
22.86(9”)
22.86 (5.6”)
Unit : cm (inch)
Intellian i4
23.3 (9.2”)
14.15 (5.6”)
Unit : cm (inch)
Intellian i3
In case that power tower is not to be used, a separate cable shock
and water proofing measures shall be taken to protect the RF from
being exposed to the sea water and external shocks. The exposed RF
cable may cause the electric shock and cause serious damage of the
equipments.
