Installation 13

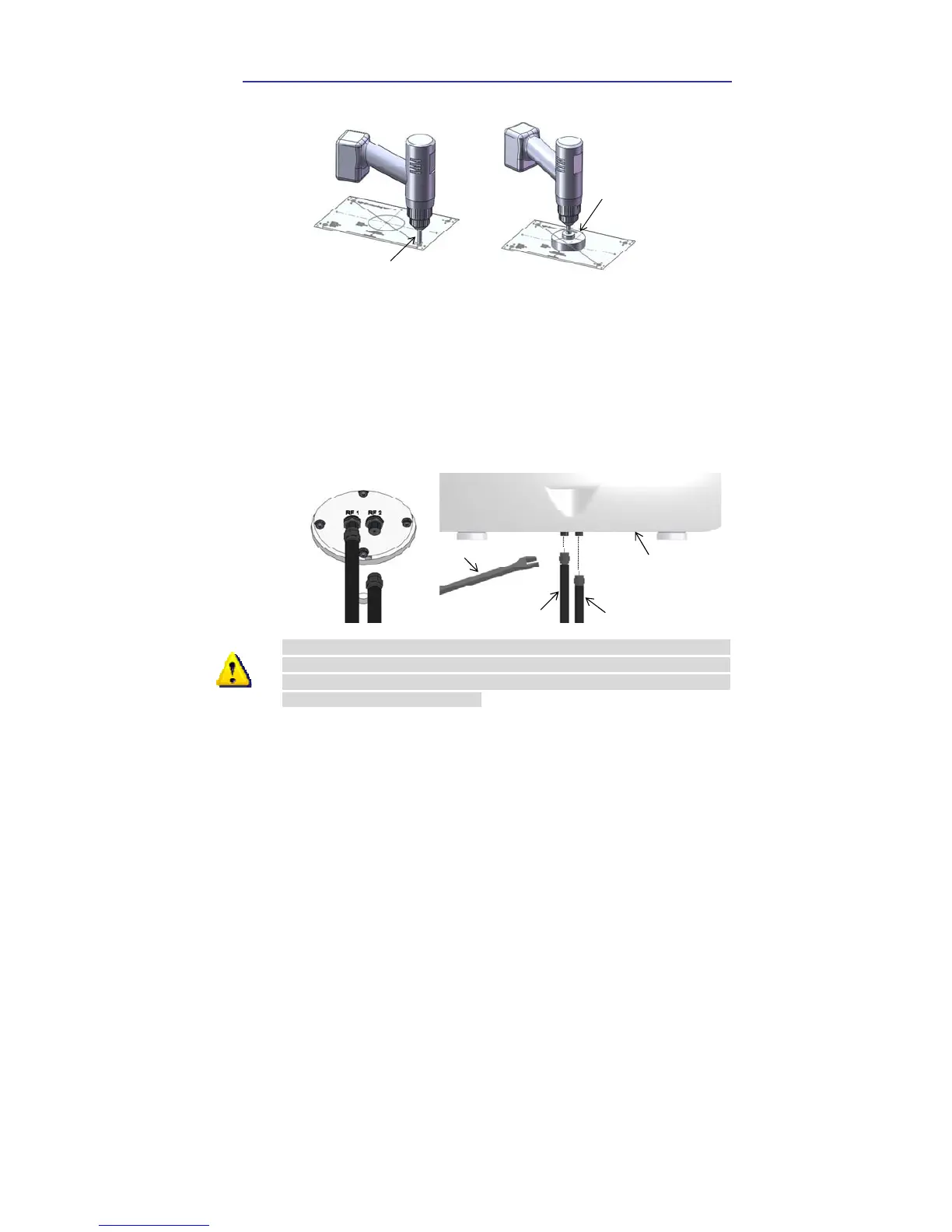

Securing hole for bolts and cable way
ø10mm(3/8”) Bit
ø80mm(3”)
Hole saw
Make 4 bolt holes of 10mm (3/8 “) diameter, one at each corner of a rectangle
drawn as above, and make a circular hole of 80mm (3”) diameter at the
center of the rectangle through which cable may run.
Connection of RF cable
Remove the rubber protector for RF cable connector RF1 at the bottom of the
antenna. Connect the RF Cable to the RF connector under the base plate
through the access hole using the 11mm (7/16 “) spanner. Be careful not to
tighten too much, as you may damage the connector.
RF Cable
Optional
An ten na Un it
11mm Spanner
Do not use excessive force when using the spanner to avoid damage of the
screw part. Be careful so that the connectors do not directly touch to the
mounting surface of the antenna, or it may cause a critical malfunction and a
serious damage to the equipment.
WARNINGWARNING
To Next Page
