62 i3/i4 Satellite Antenna System – Install and User Manual

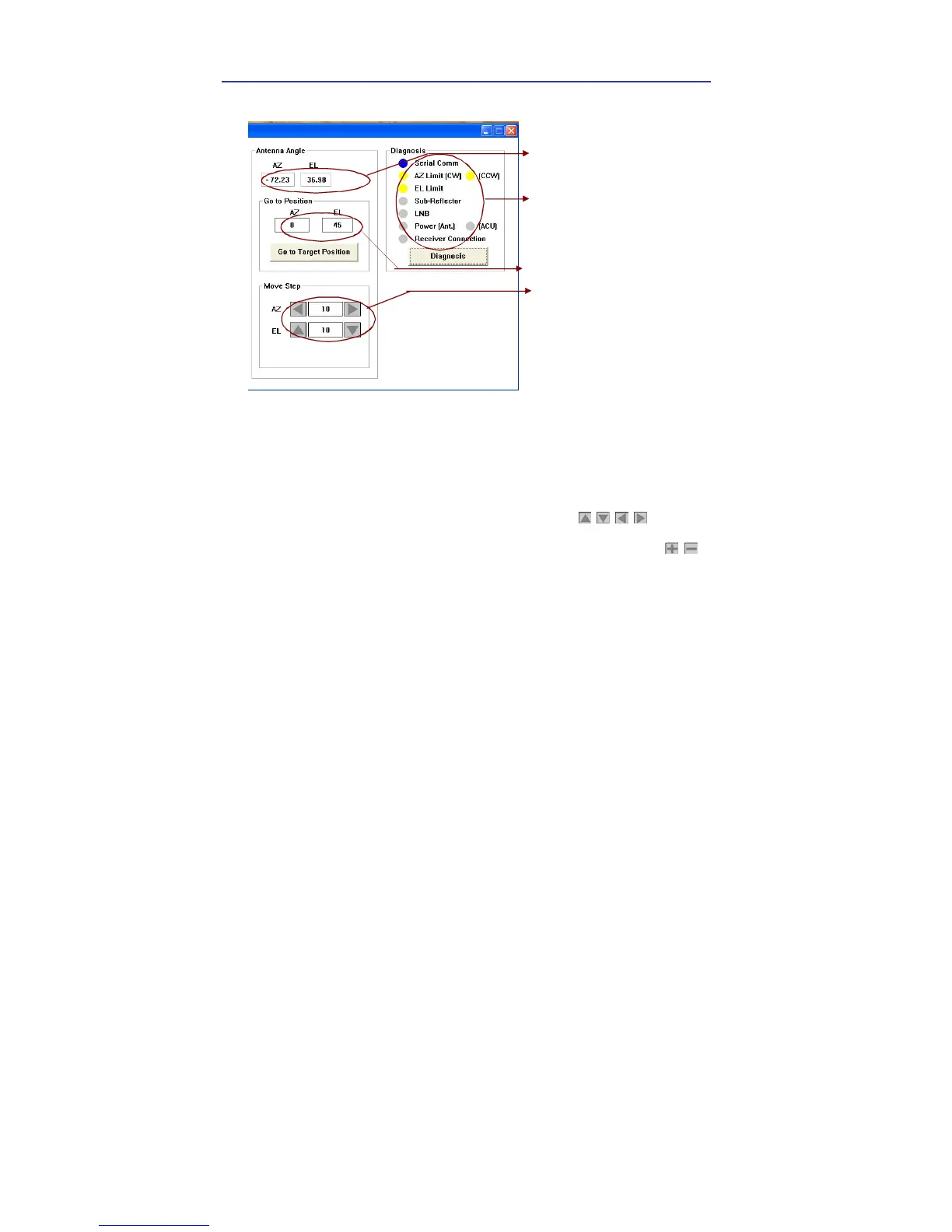

Move Antenna and Execute Antenna Diagnosis
The antenna current position
Move the antenna in f our directions
Diagnosis results
Go to target position
y Angle of Antenna
Two kinds of antenna movement is available. One is to move to
the target position and the other is to move by certain amount of
angle. The current position (angle) of the antenna is displayed as
“Current” and to move to the target position, push “Go to target
Position” button after keying in desired angle into “Target”. To
move to a certain amount of angle only, move antenna to direction
of up or down, and CW or CCW by using buttons
after keying in the desired angle into the AZ and EL in the “Mover
Step” box. Rotate LNB to direct the skew angle by using
button.
y Self-Diagnosis
If “Diagnosis” button is pressed to carry out self- diagnosis of
antenna, itdisplays the result of self-diagnosis after carrying it out.
Blue circle means the antenna is normal; red represents abnormal
and green represents the antenna is under diagnosis.
Command Button
y Go to Target Position – To move the antenna to the present
position.
y Diagnosis – To diagnose the antenna (BLUE – Passed, RED –
Failed, GREEN – Under diagnosis)
