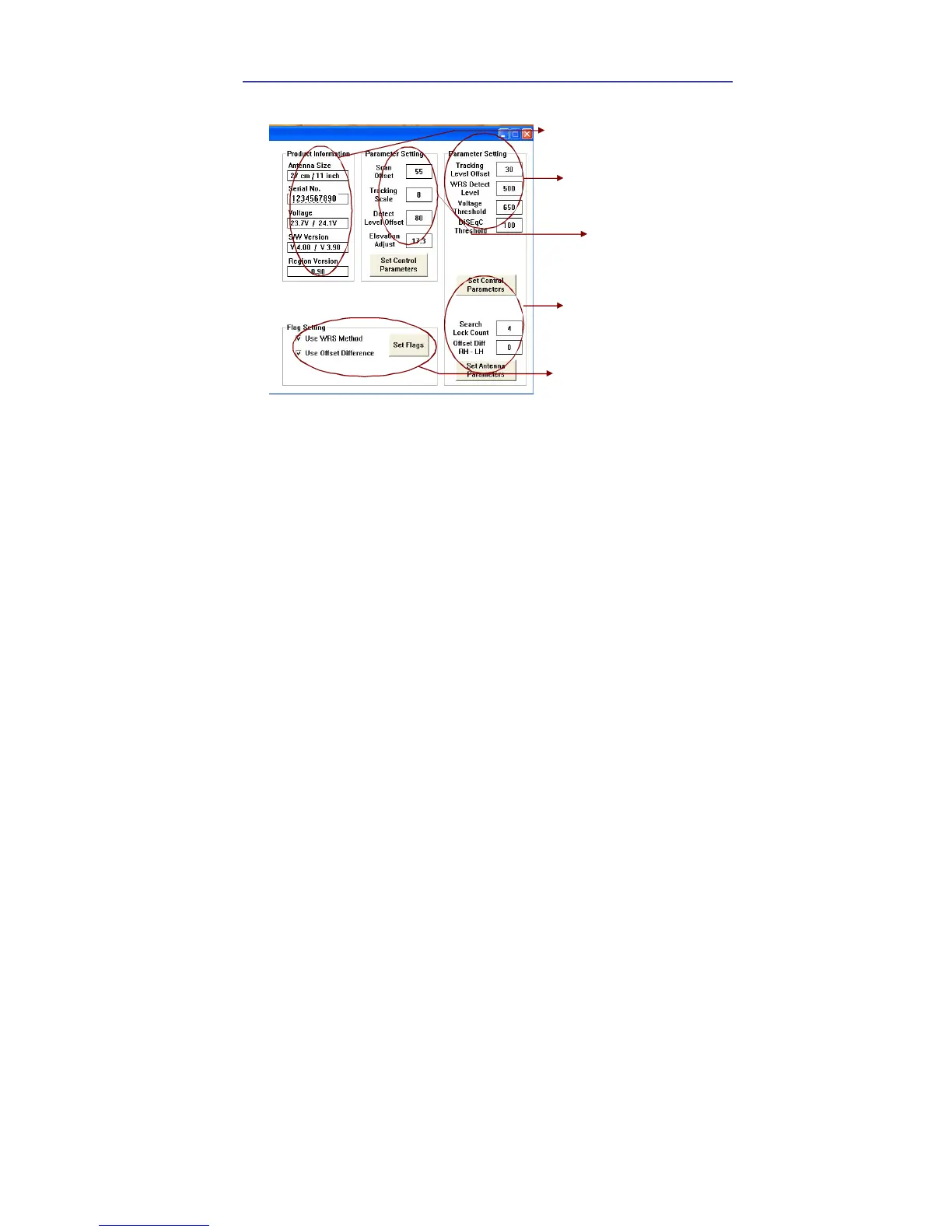

Set Antenna Parameters for Control
Product Information
Flag Setting
Parameter Setting
Parameter Setting
Parameter Setting
Command Buttons
Set Control Parameter– To register parameters values.
Set Flags – To set f lag setting f or WRS Method or Of fset Dif ference.
Product Information – Antenna dish size. Serial NO, Voltage for antenna and ACU, Sof tware
version f or ACU and Control.
Parameter Setting – To set antenna parameter values.
SCAN OFFSET : The actual angle between the marked point on sub-ref lector and the datum.
TRACK SCALE : To control the tracking speed while antenna is tracking the satellite.
High track scale value resulting in high tracking speed.
DETECT LEVEL : The basic single detection level.
TRACKING LEVEL : The basic signal tracking level
EL ADJUST : The mechanical tolerance compensation of elevation limit.
WRS LEVEL : The basic WRS detect ion level.
VOLTAGE THRESHOLD :The value to identif y Vertical/Horizontal or RHCP/LHCP
DISEQC THRESHOLD : The value to identif y 22KHz to ne.
OFFSET DIFFERENCE : The dif ference value between RHCP/LHCP and SCAN OFFSET .
USE WRS : To apply WRS while antenna is searching f or satellite.
USE OFFSET DIFFERENCE : To apply Of f set Difference.
