Note:
Make sure the ribbon runs above the upper media guide. The shiny side of
the ribbon must come in contact with the printhead.
7. Wind the ribbon rewind hub clockwise until the ribbon runs smoothly through the
printhead mechanism and the leader moves past the printhead.
F
ee
d/P
a
u
s
e
P
o
we
r
/
D
a
t
a
A
l
e
rt
E
m
p
ty
/P
a
u
s
e
Interm
ec
In
t
er
me
c
4420

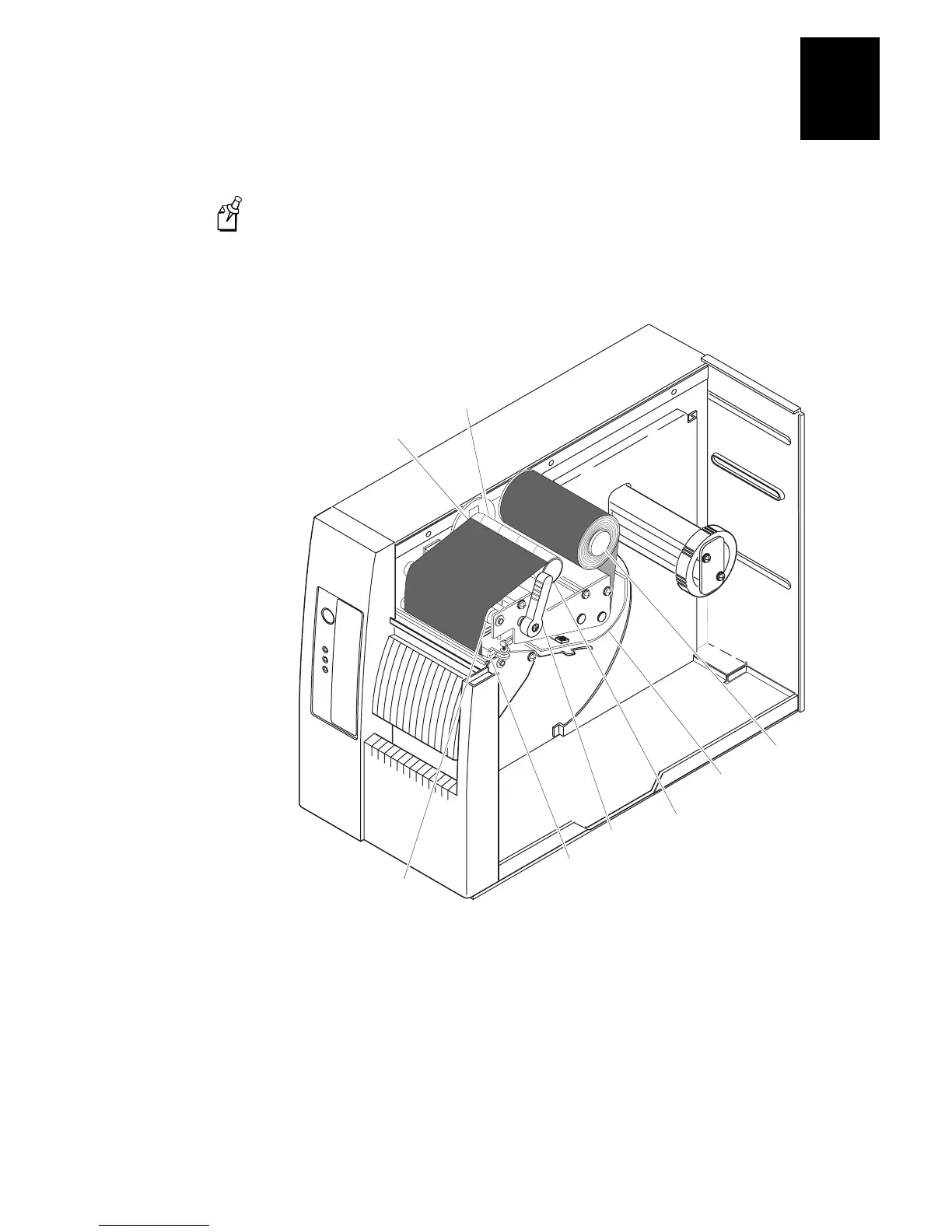

44XXU028.eps
Empty ribbon
roll
Thermal transfer
ribbon
TTR assist
roller
Ribbon supply
hub
Ribbon rewind
hub
Printhead
Upper media
guide
Head
lift lever
8. Engage the printhead by rotating the head lift lever counterclockwise until it locks.
9. Enable thermal transfer printing by setting DIP switch 8 on the bottom bank of
switches to the on position. Refer to “Configuring the Serial Port for
Communications” in Chapter 2 for DIP switch settings.
10. Press the Feed/Pause button to advance the ribbon through the printer. The printer
is now ready to print the hardware configuration test label.
