To adjust the label rest point
1. Turn off the printer.
2. Press and hold the Feed/Pause button while turning on the printer.
The printer prints out a hardware configuration label and then enters Data Line
Print mode.
3. In the top bank of the Test and Service mode DIP switches, turn off switch 1 and
turn on switches 2 and 3.
To adjust the label rest point forward (feed more label), turn off DIP
switch 4.
To adjust the label rest point backward (retract label), turn on DIP switch 4.

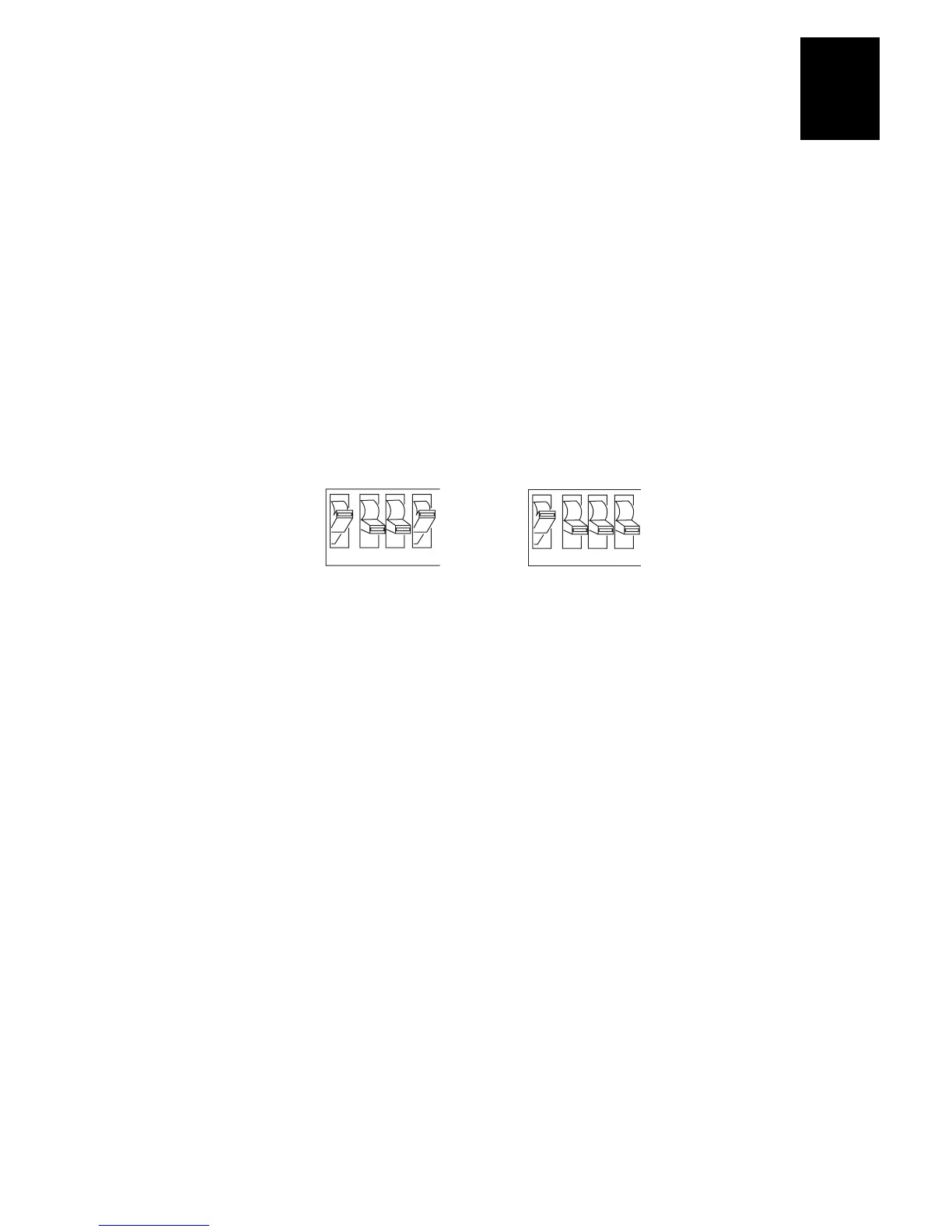

44XXU064.eps
OFF
ON
1 2 3 4
Top Bank
Switch settings
for retracting label
1 2 3 4
Switch settings
for feeding
label forward
Top Bank
OFF
ON
4. In the bottom bank of the Test and Service mode DIP switches, turn on or off the
appropriate DIP switches. See the Dot Increments DIP Switch Settings table on
page 6-9.
5. Press the Feed/Pause button.
The printer prints out the software configuration label and stops at the new
location.
6. Verify that the Label Rest Point number on the software configuration label
matches the number you set in Step 4.
7. Try printing again to see if you need to readjust the DIP switches in the bottom
bank.
8. If you need to readjust the DIP switches in the bottom bank, repeat Steps 4 through
6. If not, exit Test and Service mode by turning off the printer, returning all DIP
switches to their original settings, and turning on the printer.
