Intermec EasyCoder 501 – Service Manual Ed. 7
60
Chapter 8 Print Unit
8.7 Printhead, cont.
EasyCoder 501 S, 501 E, and 501 SA:
11.81 dots/mm (300 dpi) printhead

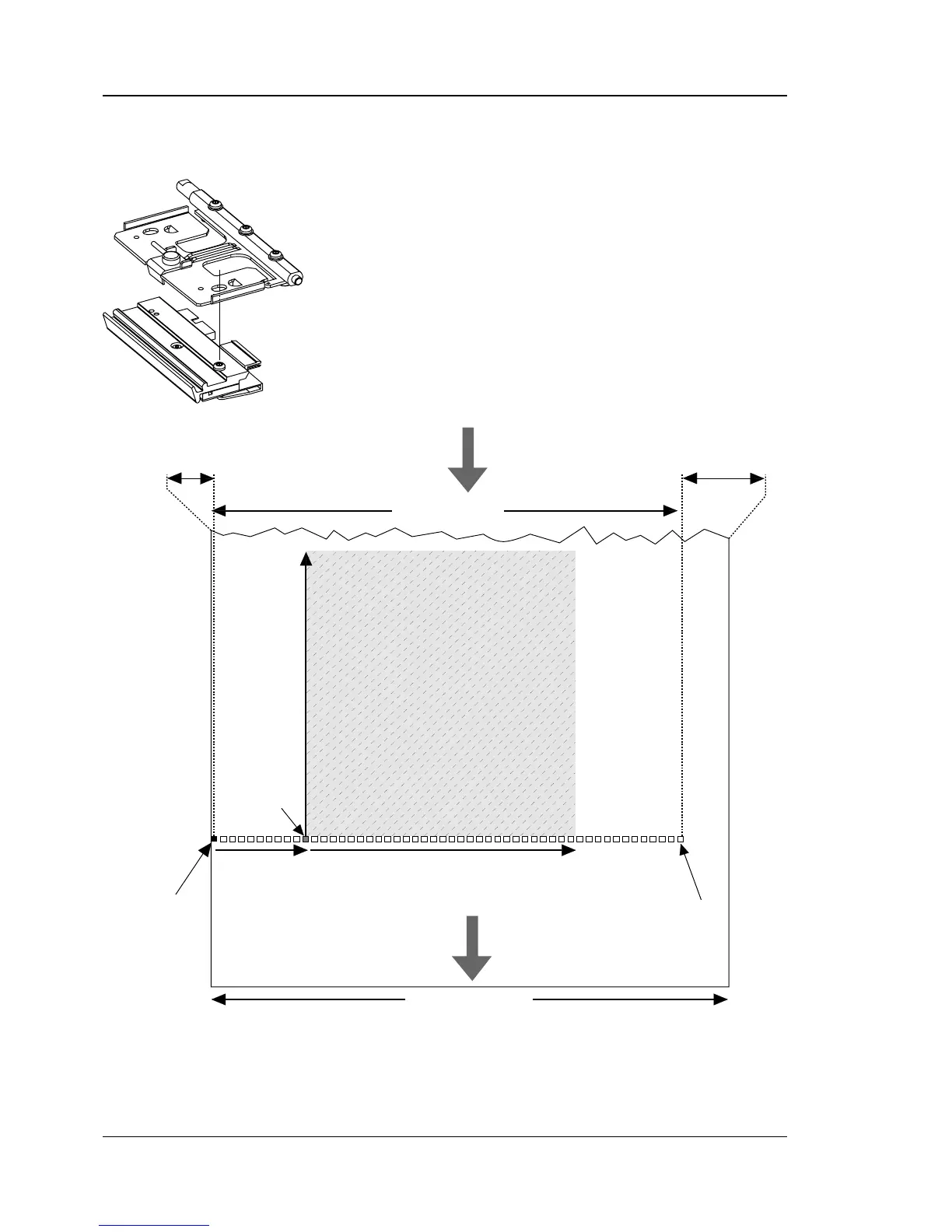

The 11.81 dots/mm printhead should only be fi tted in the right-
hand position (see illustration). Dot No. 0 is situated 0.8 mm (0.03
inches) inwards of the inner edge of the media. Since the maxi-
mum print width is 108.3 mm (4.26 inches) and the maximum
media width is 120 mm (4.7 inches), this leaves a margin of at least
10.9 mm (0.43 inches) along the outer edge of the media, where no
printing can be performed.
Dot 0
X-start Width
Origin
Length
Dot 1279
PRINT
WINDOW
PRINT
WINDOW
FEED
DIRECTION
Dot-line
on printhead
From
media supply
10.9 mm (0.43 in)
max. 120 mm (4.7 in)
108.3 mm (4.26 in)
0.8 mm (0.03 in)
