22 Intermec EasyCoder PD4—User’s Guide
Chapter 4—Loading Media
Tear-Off, cont.

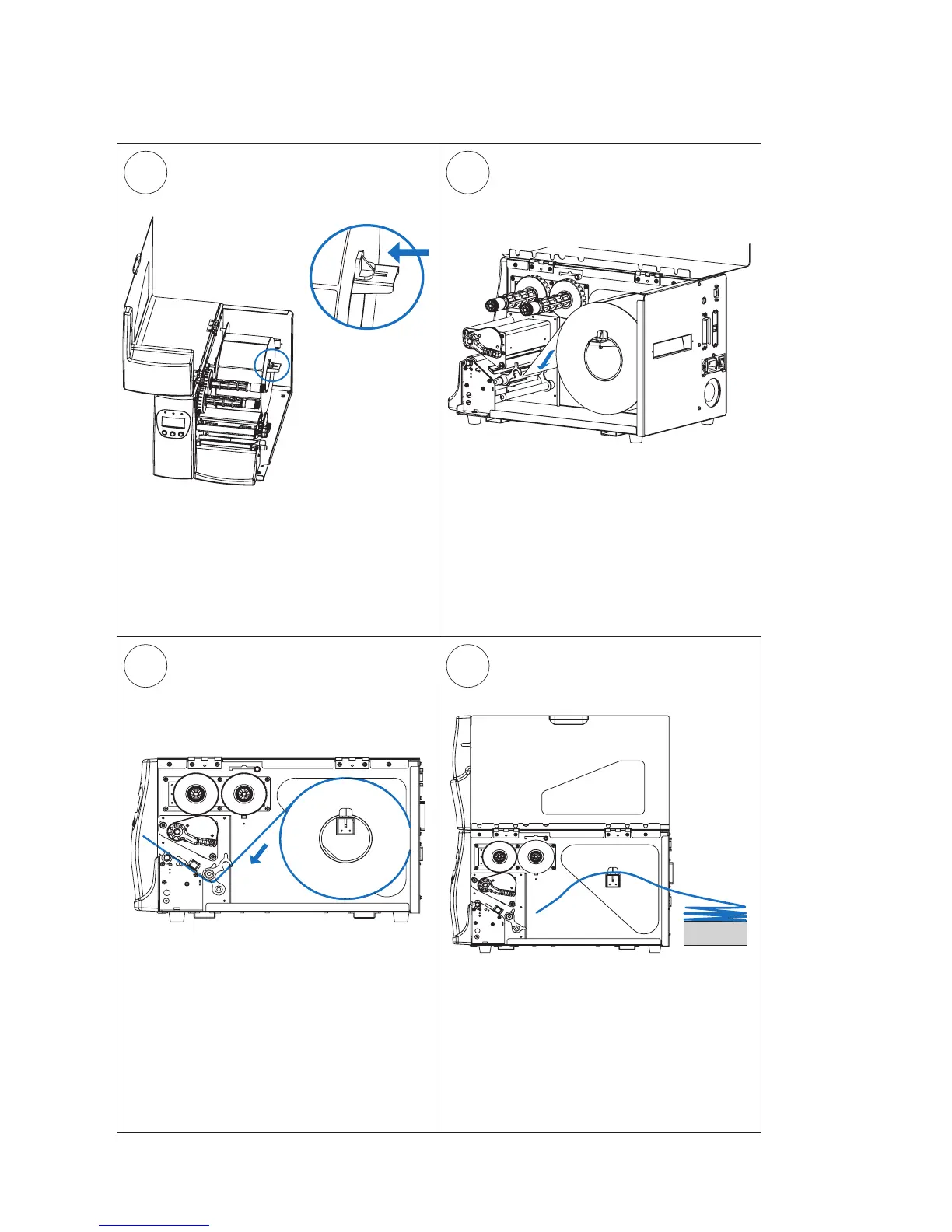

Route the media between the two label
feed rods and under the moveable
sensor to the tear bar.
Align the edge guide with the media roll.
Avoid placing the guide so it breaks the
rotation of the roll.
This diagram shows the media path
when using and internal supply.
This diagram shows the media path
when using an external supply of, for
example, fan-folded tickets.
