41
B
A
C
K

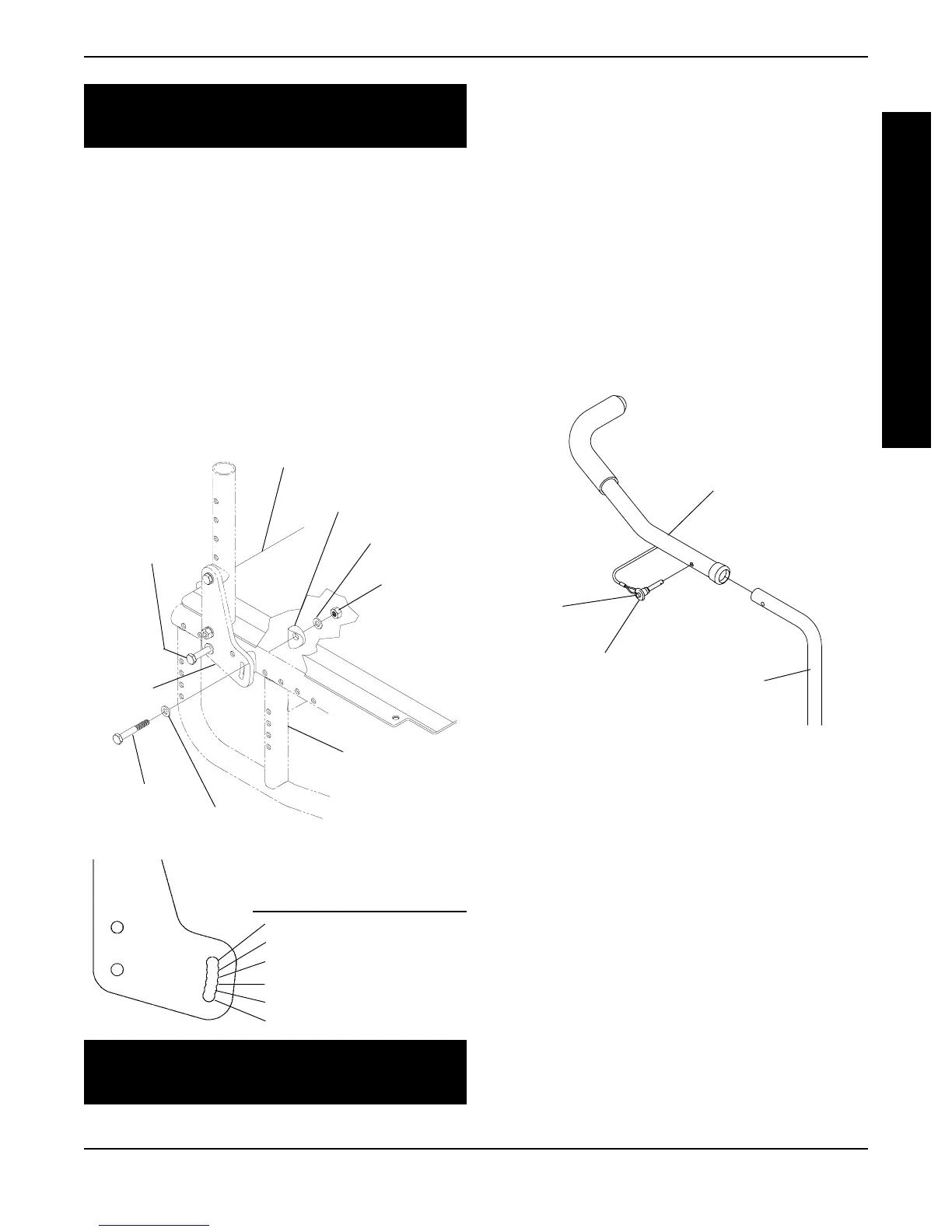

INSTALLING THE STROLLER HANDLES
(FIGURE 17)
1. Slide the stroller handle onto the back cane.
2. Make sure to line up the mounting holes of the
stroller handle and the back cane.
3. Press the button on the quick-release pin and
insert the quick-release pin through the stroller
handle and back cane.
4. Pull on the stroller handle to make sure it is
locked securely in place.
5. Repeat STEPS 1-4 for the opposite stroller
handle.
Back Cane
Stroller
Handle
Quick-
Release Pin
Button
FIGURE 17 - INSTALLING THE STROLLER
HANDLES
Hole Non-Mini Mini
No. Tilt Tilt
186
o
86
o
290
o
90
o
394
o
94
o
498
o
N/A
5 102
o
N/A
6 106
o
N/A
Locknut
Washer
Coved Washer
Front Hex
Screw
Washer
Rear Hex
Screw
(Loosen,
but do not
Remove)
Back
Angle
Plate
Wheelchair
Frame
Seat Pan
5. Reinstall the front hex screw, washers and
coved washer and securely tighten with lock-
nut. Refer to FIGURE 16 for correct hardware
orientation.
6. Securely tighten the rear hex screw that secures
the back adjustment plate to the wheelchair
frame.
7. If wheelchair is equipped with cantilever arms,
adjust the angle of the cantilever arm so they
remain parallel to the ground/floor. Refer to US-
ING/INSTALLING/ADJUSTING CANTILEVER
ARMS in PROCEDURE 2 of this manual.
WARNING
94
o
is the maximum back angle that can be used
with the mini-tilt option.
BACK PROCEDURE 4
FIGURE 16 - CHANGING THE BACK ANGLE
WARNING
94
o
is the maximum back angle that can be used
with mini-tilt option.
B
A
C
K
