67

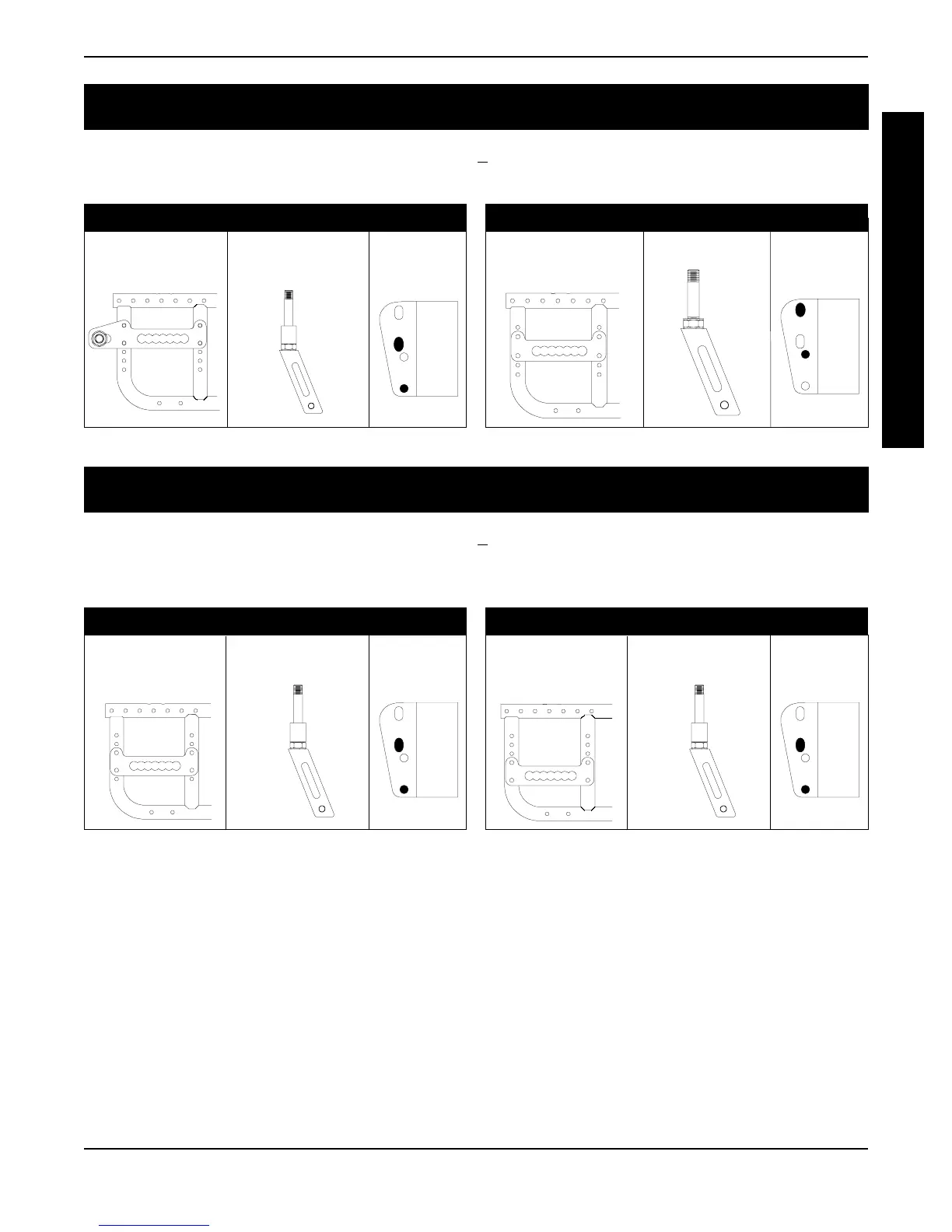

LARGE WHEEL, CASTER SIZE, AXLE PLATE POSITION, CASTER FORK, AND
HEADTUBE POSITION FOR 16-1/2 - INCH SEAT-TO-FLOOR HEIGHT-LONG FRAME
NOTE: Seat-to-Floor heights are approximate to + 1/2 inch.
STANDARD POSITION
24-inch wheel, 5-inch caster
HEAD
TUBE
MINI TILT AXLE
PLATE POSITION
3-INCH FORK
1-INCH SPACER
24-inch wheel, 6-inch caster
HEAD
TUBE
5-INCH FORK
NON-MINI TILT
AXLE PLATE
POSITION
STANDARD POSITION
LARGE WHEEL, CASTER SIZE , AXLE PLATE POSITION, CASTER FORK, AND HEADTUBE
POSITION FOR 17-1/2 - INCH SEAT-TO-FLOOR HEIGHT- LONG FRAME (CONTINUED)
NOTE: Seat-to-Floor heights are approximate to + 1/2 inch.
REVERSED POSITIONSTANDARD POSITION
24-inch wheel, 6-inch caster
HEAD
TUBE
5-INCH FORK
1-INCH SPACER
NON-MINI TILT
AXLE PLATE
POSITION
24-inch wheel, 6-inch caster
HEAD
TUBE
5-INCH FORK
1-INCH SPACER
NON-MINI TILT
AXLE PLATE
POSITION
S
E
A
T
T
O
F
L
O
O
R
SEAT-TO-FLOOR PROCEDURE 8
