Invacare Comet - Inch Seat-To-Floor Height-Long Frame

65

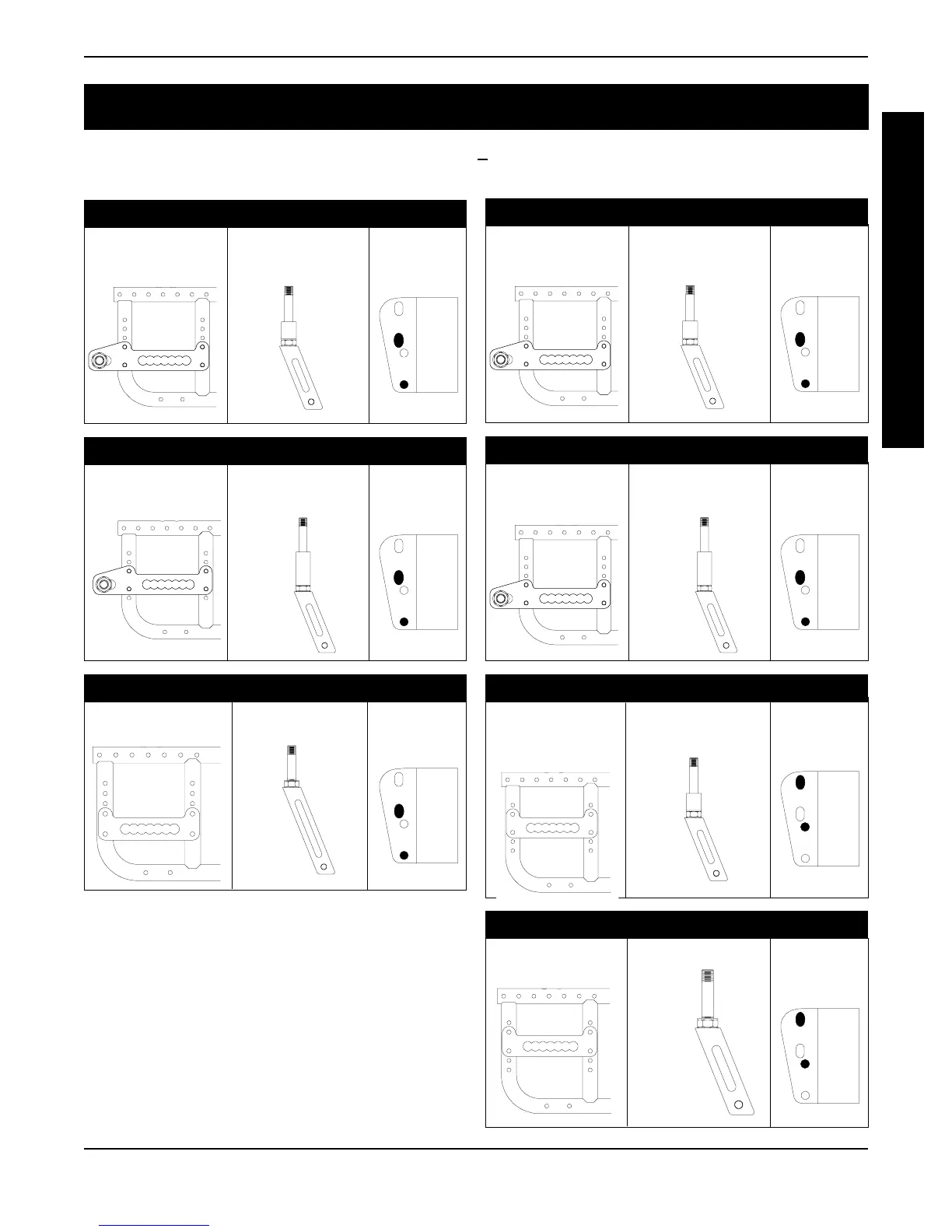

LARGE WHEEL, CASTER SIZE, AXLE PLATE POSITION, CASTER FORK, AND
HEADTUBE POSITION FOR 16-1/2 - INCH SEAT-TO-FLOOR HEIGHT-LONG FRAME
NOTE: Seat-to-Floor heights are approximate to + 1/2 inch.
STANDARD POSITION REVERSED POSITION
20-inch wheel, 5-inch caster
HEAD
TUBE
MINI TILT AXLE
PLATE POSITION
3-INCH FORK
1-INCH SPACER
20-inch wheel, 5-inch caster
HEAD
TUBE
MINI TILT AXLE
PLATE POSITION
3-INCH FORK
1-INCH SPACER
24-inch wheel, 3-inch caster
HEAD
TUBE
3-INCH FORK
1-INCH SPACER
NON-MINI TILT
AXLE PLATE
POSITION
24-inch wheel, 5-inch caster
HEAD
TUBE
AXLE PLATE
POSITION
3-INCH FORK
S
E
A
T
T
O
F
L
O
O
R
20-inch wheel, 5-inch caster
HEAD
TUBE
MINI TILT AXLE
PLATE POSITION
3-INCH FORK
1-INCH SPACER
20-inch wheel, 3-inch caster
HEAD
TUBE
MINI TILT AXLE
PLATE POSITION
3-INCH FORK
2-INCH SPACER
20-inch wheel, 6-inch caster
AXLE PLATE
POSITION
5-INCH FORK
HEAD
TUBE
SEAT-TO-FLOOR PROCEDURE 8
