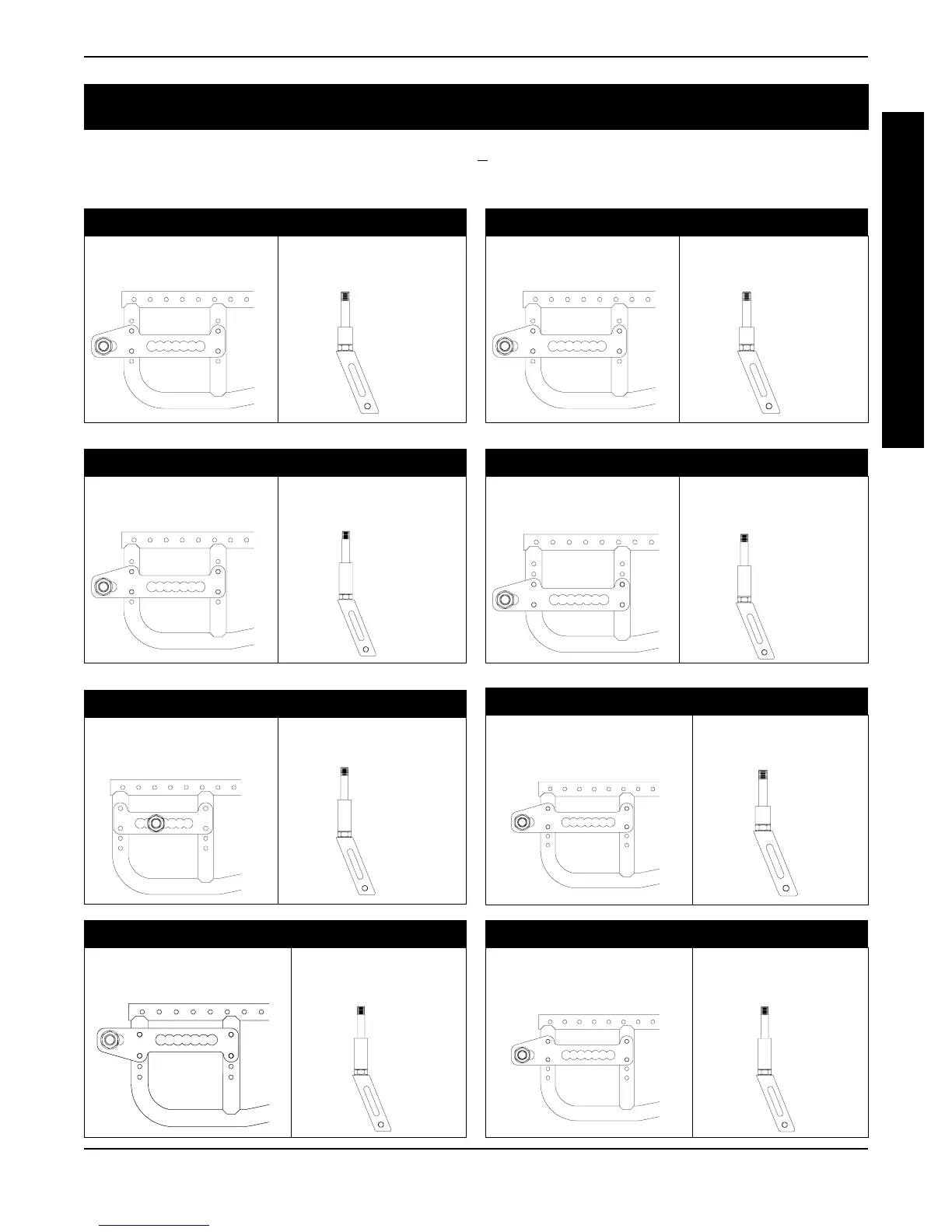

LARGE WHEEL, CASTER SIZE, AXLE PLATE POSITION, AND CASTER FORK FOR
13-3/4 - INCH SEAT-TO-FLOOR HEIGHT-SHORT FRAME
STANDARD POSITION REVERSED POSITION
18-inch wheel, 5-inch caster
MINI TILT AXLE
PLATE POSITION
3-INCH FORK
1-INCH SPACER
18-inch wheel, 5-inch caster
MINI TILT AXLE
PLATE POSITION
3-INCH FORK
1-INCH SPACER
NOTE: Seat-to-Floor heights are approximate to
+ 1/2-inch.
18-inch wheel, 3-inch caster
MINI TILT AXLE
PLATE POSITION
18-inch wheel, 3-inch caster
MINI TILT AXLE
PLATE POSITION
3-INCH FORK
2-INCH SPACER
3-INCH FORK
2-INCH SPACER
20-inch wheel, 5-inch caster
3-INCH FORK
2-INCH SPACER
NON - MINI TILT AXLE
PLATE POSITION
20-inch wheel, 5-inch caster
MINI TILT AXLE PLATE
POSITION
3-INCH FORK
1-INCH SPACER
S
E
A
T
T
O
F
L
O
O
R
PROCEDURE 8SEAT-TO-FLOOR
MINI TILT AXLE PLATE
POSITION
3-INCH FORK
2-INCH SPACER
20-inch wheel, 3-inch caster
MINI TILT AXLE PLATE
POSITION
3-INCH FORK
2-INCH SPACER
20-inch wheel, 3-inch caster
