Invacare Comet - Large Wheel, Caster Size, Axle Plate Position, and Caster Fork for 10-3;4 Inch, Seat-To-Floor Height-Short Frame; Large Wheel, Caster Size, Axle Plate Position, and Caster Fork for 11-3;4 Inch, Seat-To-Floor Height-Short Frame

56
SEAT-TO-FLOORPROCEDURE 8

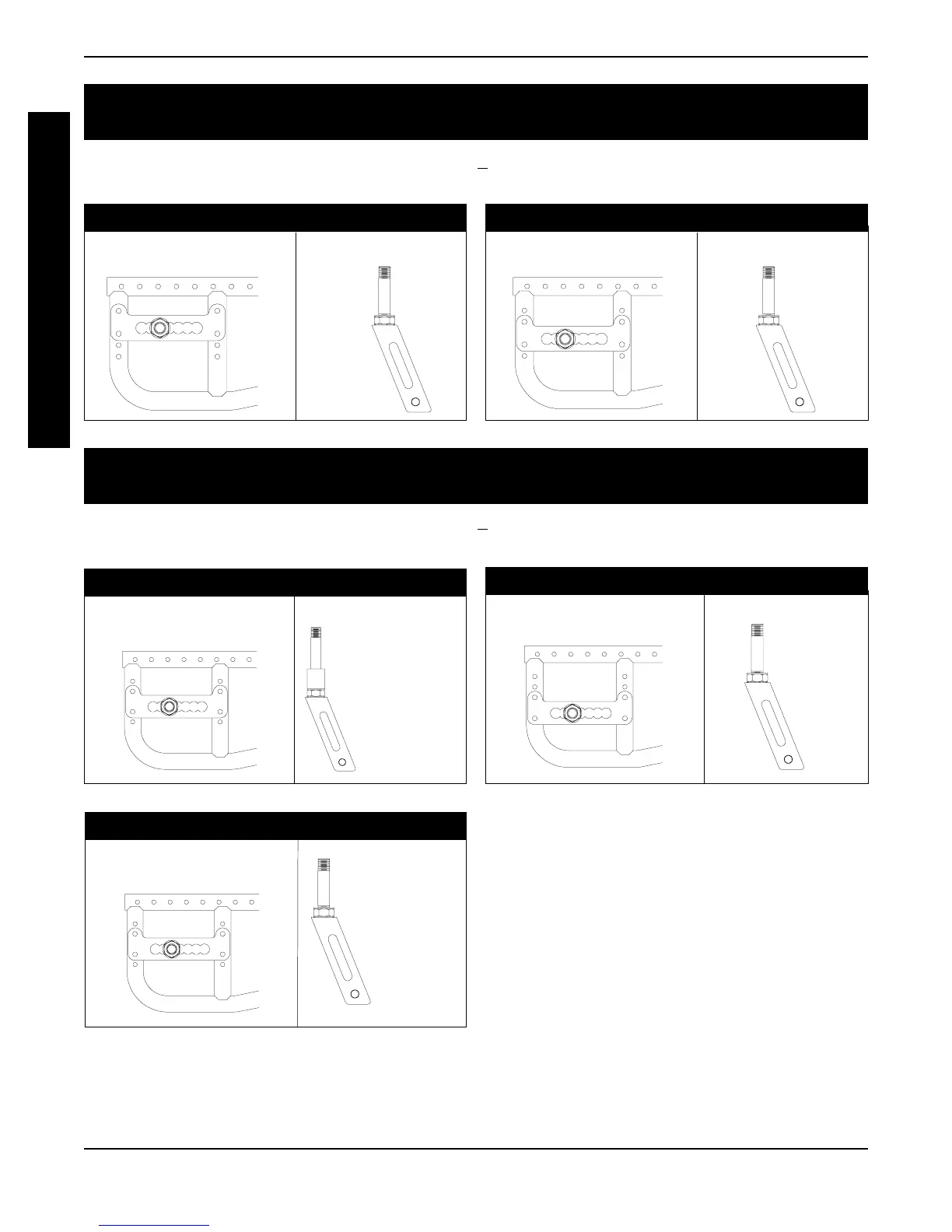

LARGE WHEEL, CASTER SIZE, AXLE PLATE POSITION, AND CASTER FORK FOR
10-3/4 - INCH SEAT-TO-FLOOR HEIGHT-SHORT FRAME
NOTE: Seat-to-Floor heights are approximate to + 1/2 inch.
STANDARD POSITION REVERSED POSITION
NON - MINI TILT AXLE
PLATE POSITION
16-inch wheel, 3-inch caster
16-inch wheel, 3-inch caster
3-INCH FORK1
3-INCH FORK1
NON - MINI TILT AXLE
PLATE POSITION
LARGE WHEEL, CASTER SIZE , AXLE PLATE POSITION, AND CASTER FORK FOR
11-3/4 - INCH SEAT-TO-FLOOR HEIGHT-SHORT FRAME
NOTE: Seat-to-Floor heights are approximate to + 1/2-inch.
STANDARD POSITION REVERSED POSITION
NON - MINI TILT AXLE
PLATE POSITION
16-inch wheel, 3-inch caster
16-inch wheel, 3-inch caster
NON - MINI TILT AXLE
PLATE POSITION
3-INCH FORK
1-INCH SPACER
16-inch wheel, 5-inch caster
NON - MINI TILT AXLE
PLATE POSITION
3-INCH FORK
3-INCH FORK
