Invacare Comet - Suspension Adjustment

57

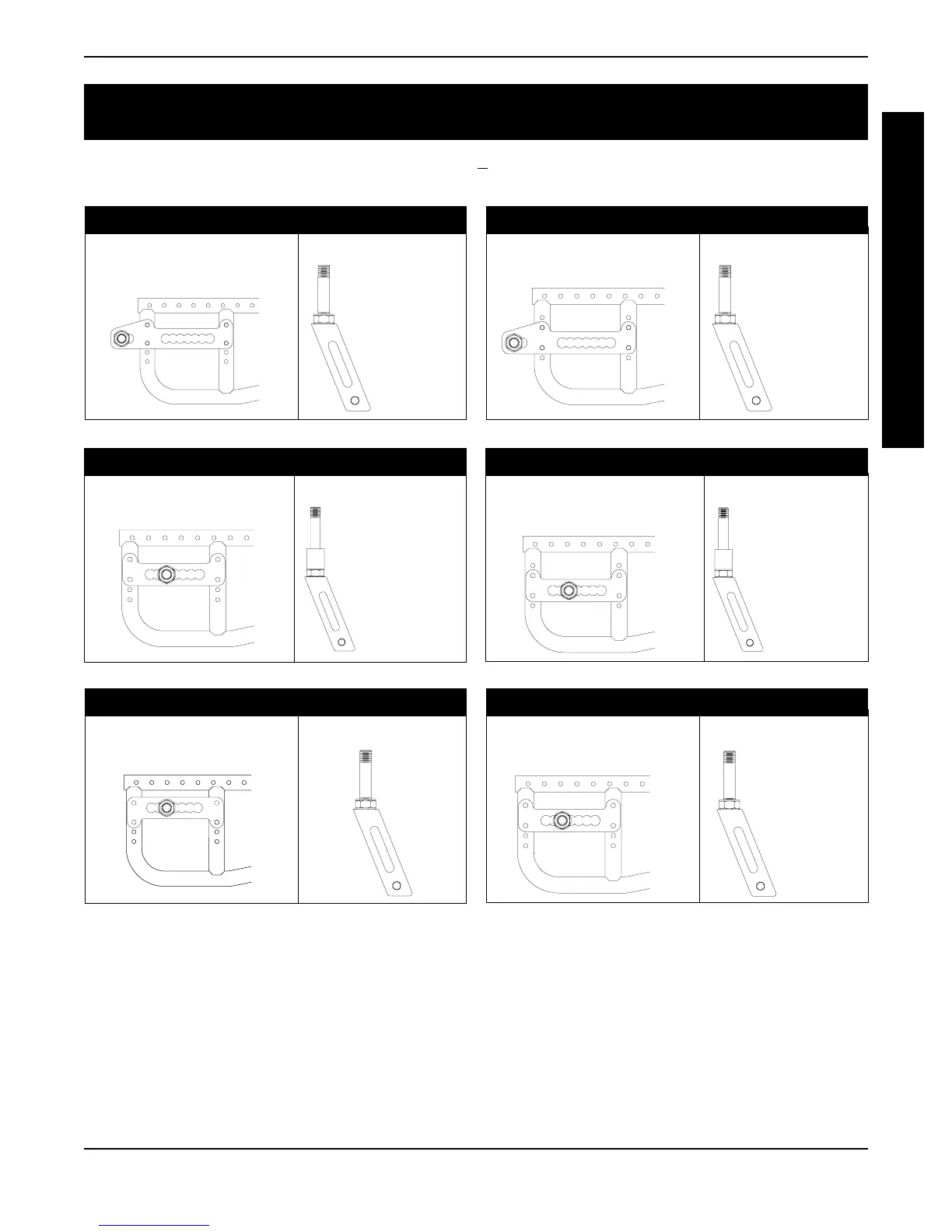

LARGE WHEEL, CASTER SIZE , AXLE PLATE POSITION, AND CASTER FORK FOR
11-3/4 - INCH SEAT-TO-FLOOR HEIGHT-SHORT FRAME
NOTE: Seat-to-Floor heights are approximate to + 1/2 inch.
16-inch wheel, 3-inch caster
MINI TILT AXLE PLATE
POSITION
3-INCH FORK
STANDARD POSITION
18-inch wheel, 5-inch caster
NON - MINI TILT AXLE
PLATE POSITION
3-INCH FORK
REVERSED POSITION
18-inch wheel, 5-inch caster
3-INCH FORK
NON - MINI TILT AXLE
PLATE POSITION
18-inch wheel, 3-inch caster
3-INCH FORK
1-INCH SPACER
NON - MINI TILT AXLE
PLATE POSITION
18-inch wheel, 3-inch caster
3-INCH FORK
1-INCH SPACER
NON - MINI TILT AXLE
PLATE POSITION
16-inch wheel, 3-inch caster
MINI TILT AXLE PLATE
POSITION
3-INCH FORK
S
E
A
T
T
O
F
L
O
O
R
SEAT-TO-FLOOR PROCEDURE 8
