Invacare Comet - Backrest Angle Adjustment

48
7 6 5 4 3 2 1
9 8 7 6 5 4 3 2 1
With a Back
Angle of ...
(in degrees)
Allowable Axle Bushing Mounting Positions Are...
Short Frame Long Frame
7 86 or 90 1-7 4-9 N/A N/A
94 or 98 2-7 4-9 N/A N/A
102 or 106 3-7 * N/A N/A
8 86 or 90 2-7 5-9 N/A N/A
94 or 98 3-7 5-9 N/A N/A
102 or 106 4-7 * N/A N/A
9 86 or 90 3-7 6-9 1-7 3-9
94 or 98 4-7 6-9 1-7 3-9
102 or 106 5-7 * 2-7 *
10 86 or 90 4-7 7-9 2-7 4-9
94 or 98 5-7 7-9 3-7 4-9
102 or 106 6-7 * 3-7 *
11 86 or 90 5-7 8-9 3-7 5-9
94 or 98 6-7 8-9 3-7 5-9
102 or 106 7 ONLY * 4-7 *
12 86 or 90 6-7 8-9 4-7 6-9
94 or 98 7 ONLY 8-9 4-7 6-9
102 or 106 7 ONLY * 5-7 *
13 86 or 90 7 ONLY 8-9 5-7 7-9
94 or 98 ** 8-9 5-7 7-9
102 or 106 ** * 6-7 *
14/15/16 86 or 90 N/A N/A 6-7 8-9
94 or 98 N/A N/A 6-7 8-9
102 or 106 N/A N/A 7 ONLY *
If wheelchair
has Seat Depth
of...(in inches)
*
*
*
*
*
*
*
*
*
*
*
*
*
Non-Mini Mini Non-Mini Mini
Tilt Tilt Tilt Tilt
PROCEDURE 5 LARGE WHEELS
STANDARD POSITION
WARNING
* NEVER use back angles of 98
o
, 102
o
, or 106
o
with the Mini Tilt option.
** SHORT FRAME ONLY-NEVER use back angles of 94
o
, 98
o
, 102
o
or 106
o
when the seat depth is
13-inches.
NON MINI-TILT AXLE PLATE MINI TILT AXLE PLATE

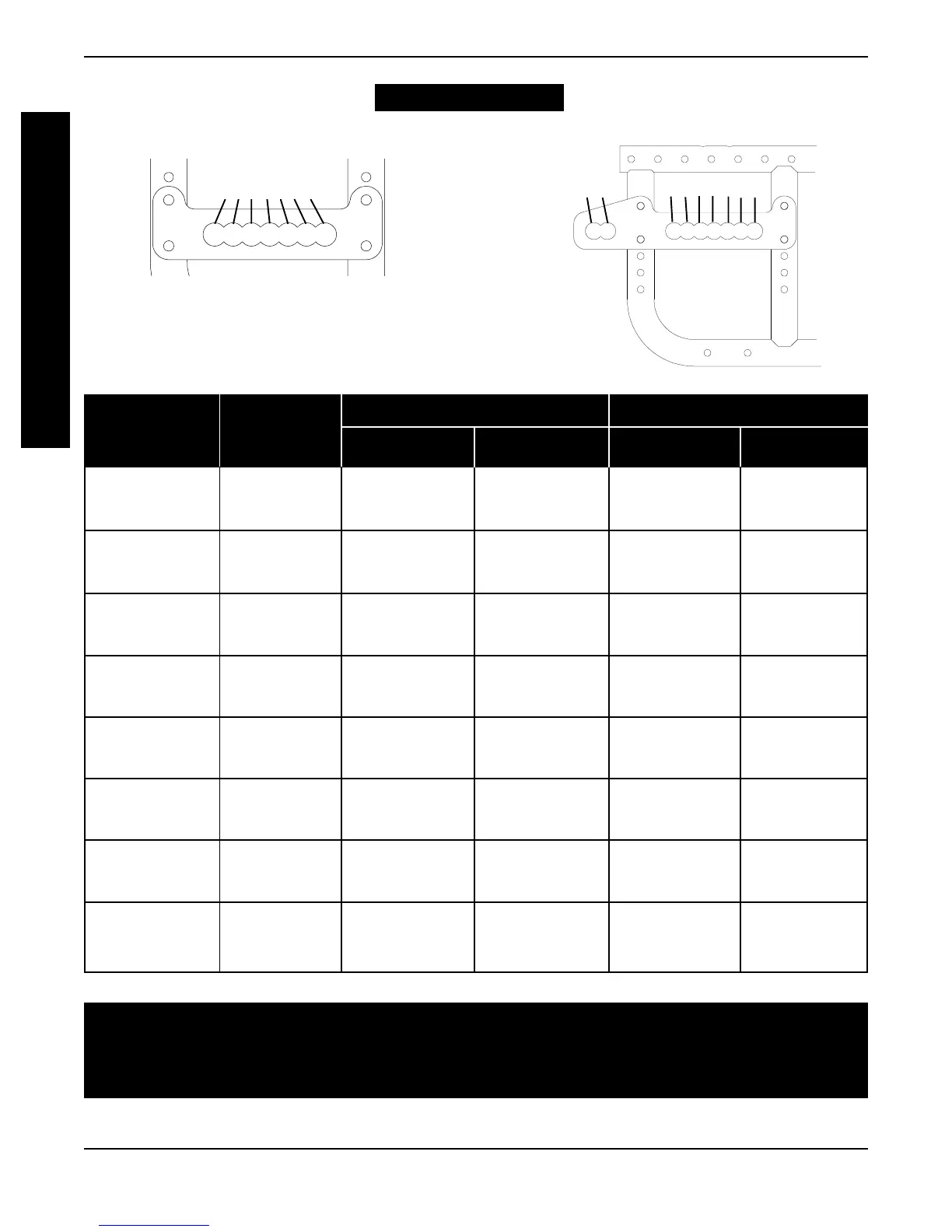

FIGURE 9 - ADJUSTING THE WHEELBASE LENGTH-
STANDARD POSITION
L
A
R
G
E
W
H
E
E
L
S
