54
STANDARD
POSITION
NEVER use the
TOP TWO (2)
mounting holes
Use this mounting
hole if using
16-inch wheels
BOTTOM OF
ANTI-TIPPER
REVERSED
POSITION
Use the TOP
THREE (3)
mounting holes
ONLY
Use this mount-
ing hole if using
20, 22, 24-inch
wheels
NEVER use this
mounting hole
Use this mounting hole
if using 20, 22, 24-inch
wheels
Use this mounting hole
if using 16-inch wheels
ANTI-TIPPER
ENTERS HERE

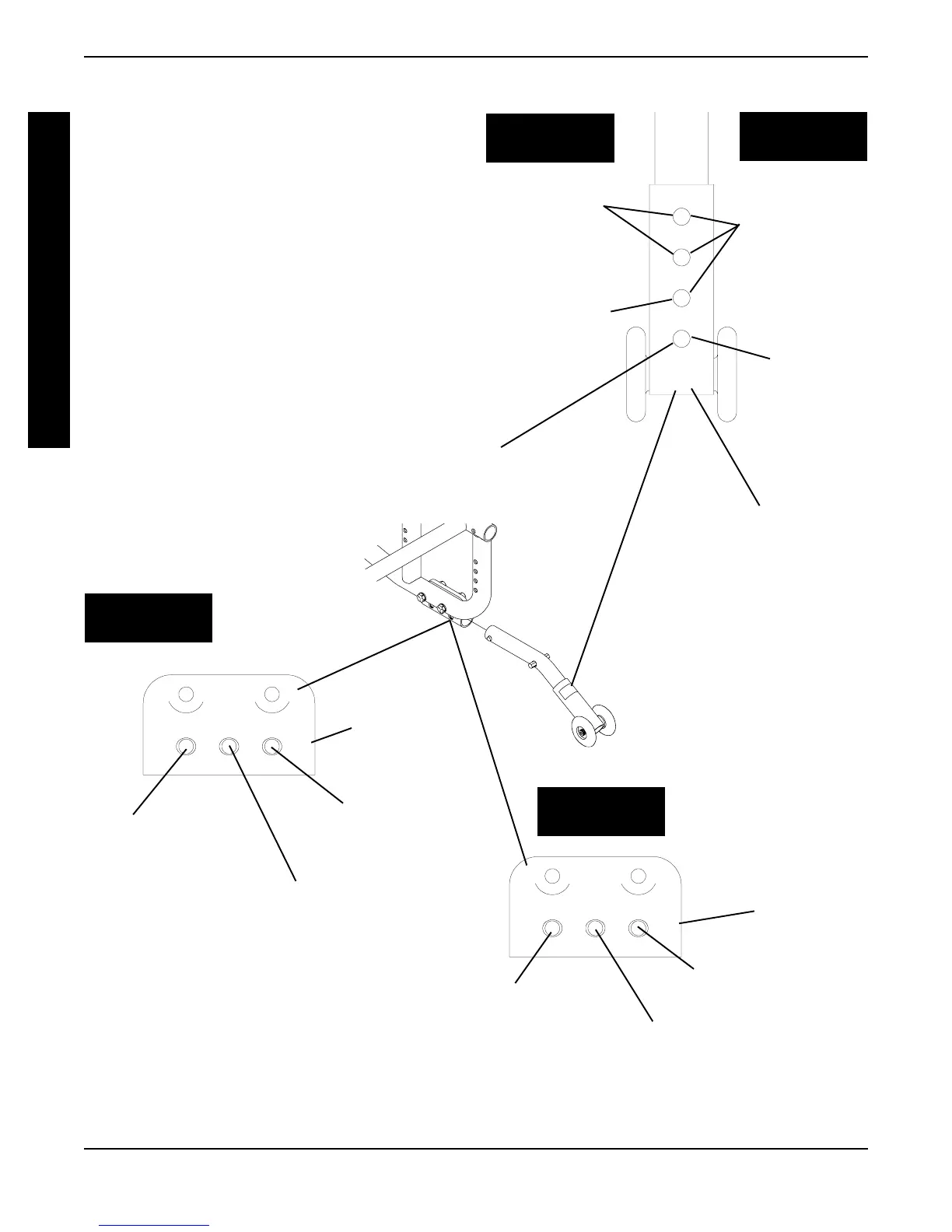

FIGURE 6 - ADJUSTING THE ANTI-TIPPERS
Adjusting the Anti-Tippers
NOTE The anti-tippers need to be adjusted any
time the seat-to-floor height is changed, the
wheelchair is converted from the standard to the
reversed position or vice versa.
1. Refer to FIGURE 6 to determine the mounting
hole that is to be used depending on 16, 20, 22
or 24-inch wheel size and wheelchair position
(standard or reversed).
Use this mounting hole
if using 16-inch wheels
Use this mounting hole
ONLY if 16 or 20-inch
wheels are positioned in
the most forward position
Use this mount-
ing hole if using
20, 22, 24-inch
wheels
ANTI-TIPPER
ENTERS HERE
Anti-tipper
Mount
STANDARD
POSITION
REVERSED
POSITION
Use the
BOTTOM
mounting hole
ONLY with a 10-
3/4-inch seat-to-
floor
PROCEDURE 7 WHEEL LOCKS/ANTI-TIPPERS
