SERVICE INSTRUCTIONS
55

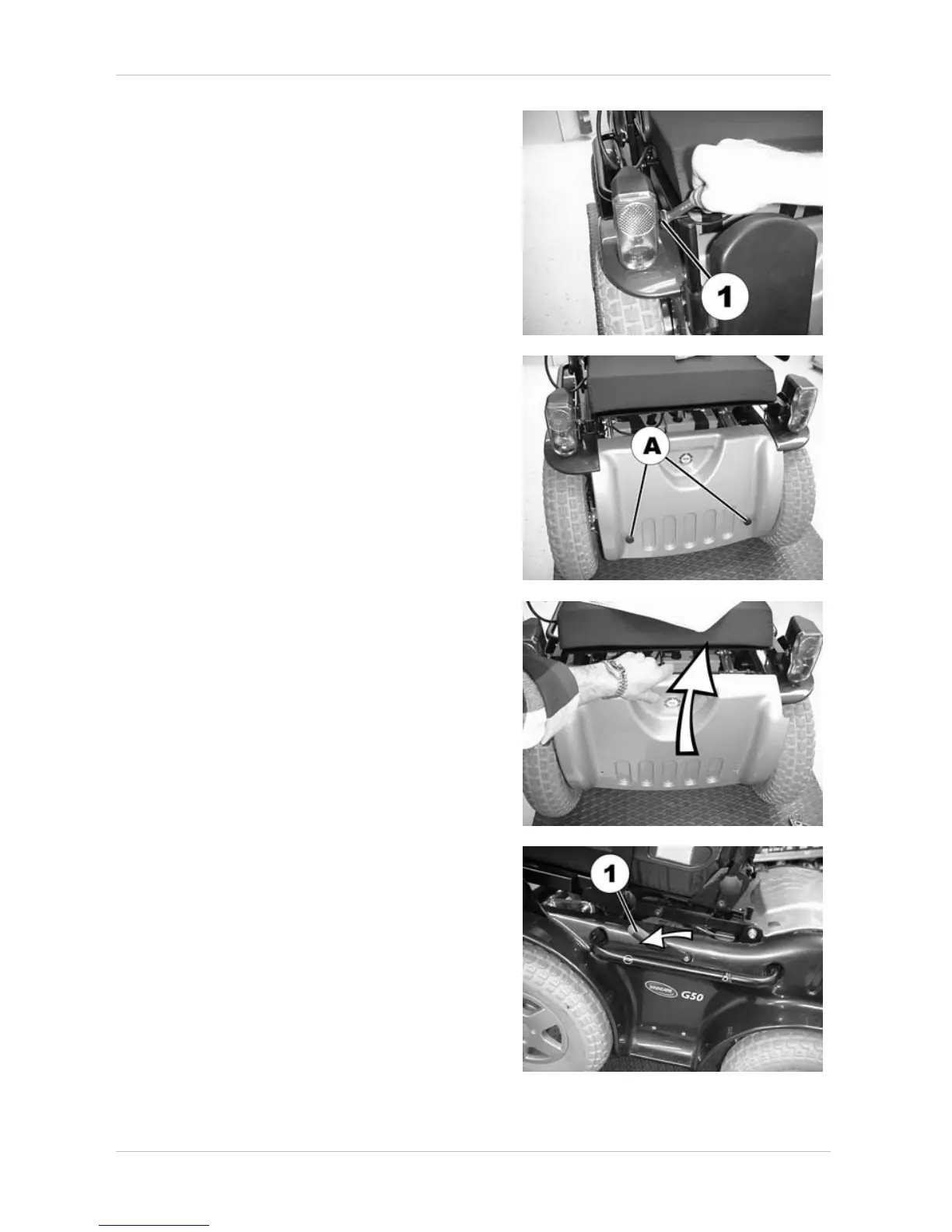

Removing the fixed legrests
• Loosen the fixation screw with open-end
spanner 13 mm.
• Pull legrest out toward the front.
• Loosen and remove the knurled screws (A).
• Pull the cowling upward and forwards and
remove.
• Activate the hand brake (1).
