SERVICE INSTRUCTIONS
Invacare
®
- G50
56

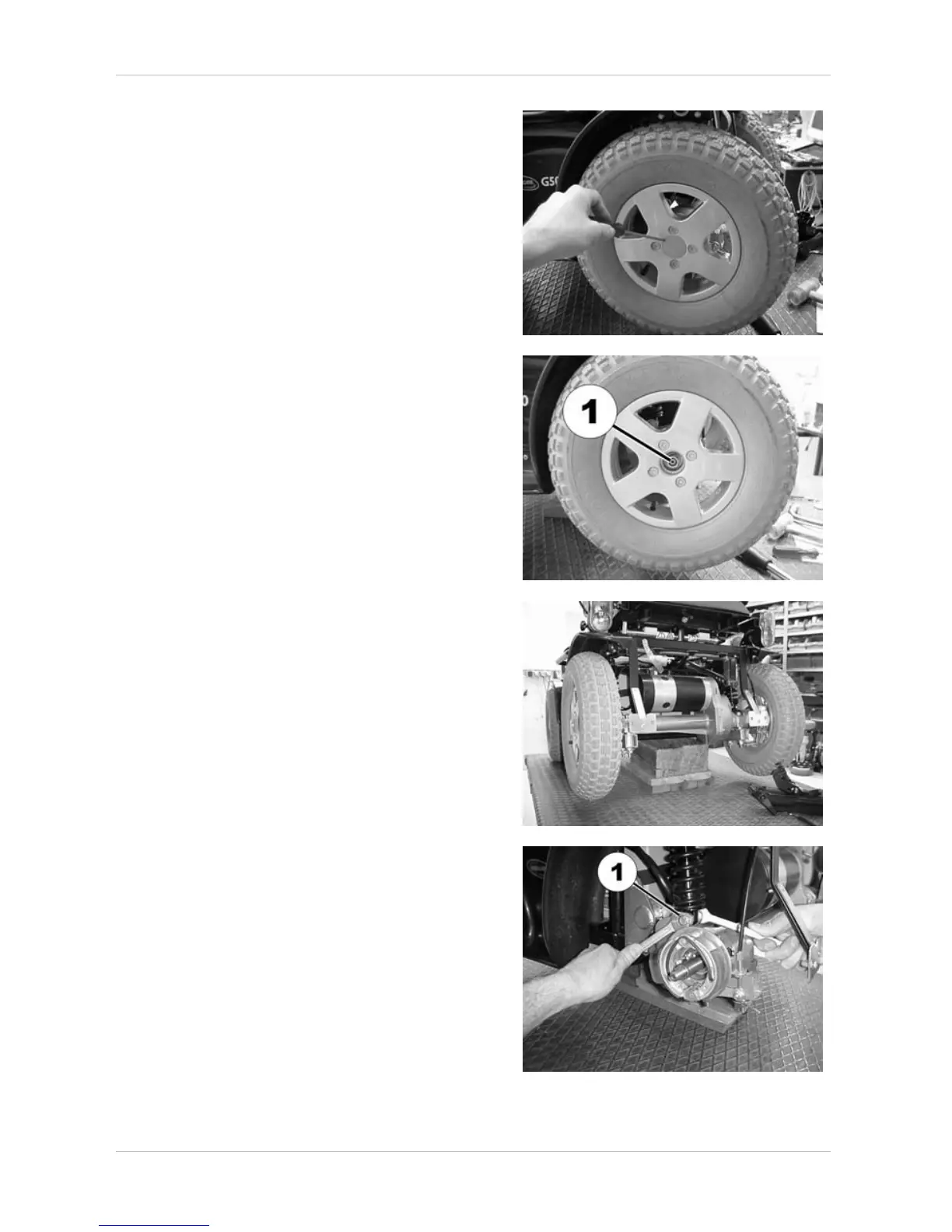

• Carefully pry the hub caps off of the drive
wheels with the small, flat screwdriver.
• Remove the fixation bolt of the wheel hubs
with the socket spanner 19 mm.
• Jack up wheelchair with wooden blocks under
the battery compartment.
• Loosen and remove the lower fixation bolt of
the shock absorber with two open-end
spanners 13 mm.
