SERVICE INSTRUCTIONS
67

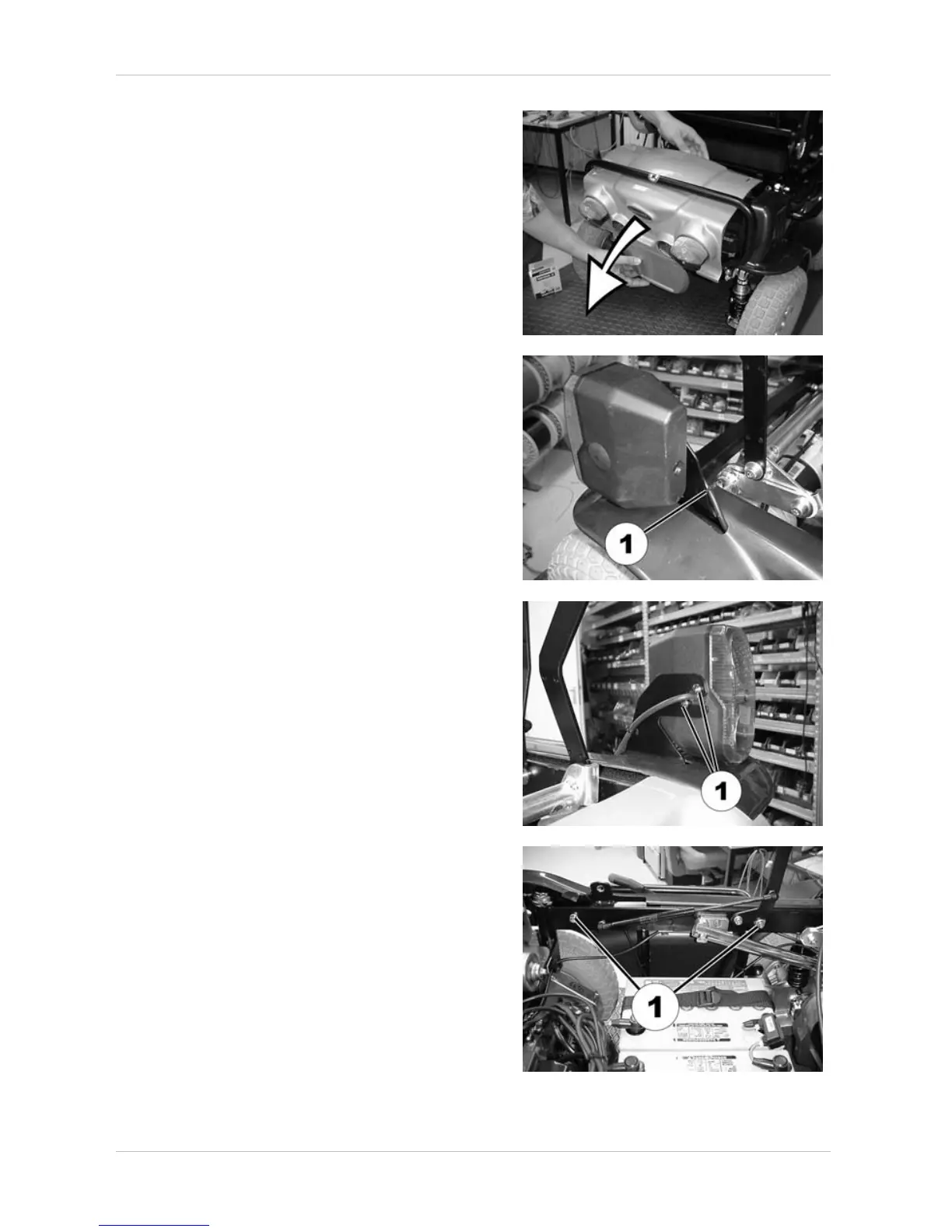

• Pull cowling upwards and backwards.
To be able to access the Bowden cable of the
declutching mechanism, the side cowling on the
side where the declutching lever is located needs
to be removed.
• Cut the cable binder (1) of the headlight cable
with the pair of diagonal-nosed cutting pliers.
• Loosen and remove the fixation screws (1)
that hold the headlight, using the crosstip
screwdriver.
• Use the Allen key 6 mm to loosen and remove
the lateral fixation bolts (1) of the side handle.
