SERVICE INSTRUCTIONS
Invacare
®
- G50
68

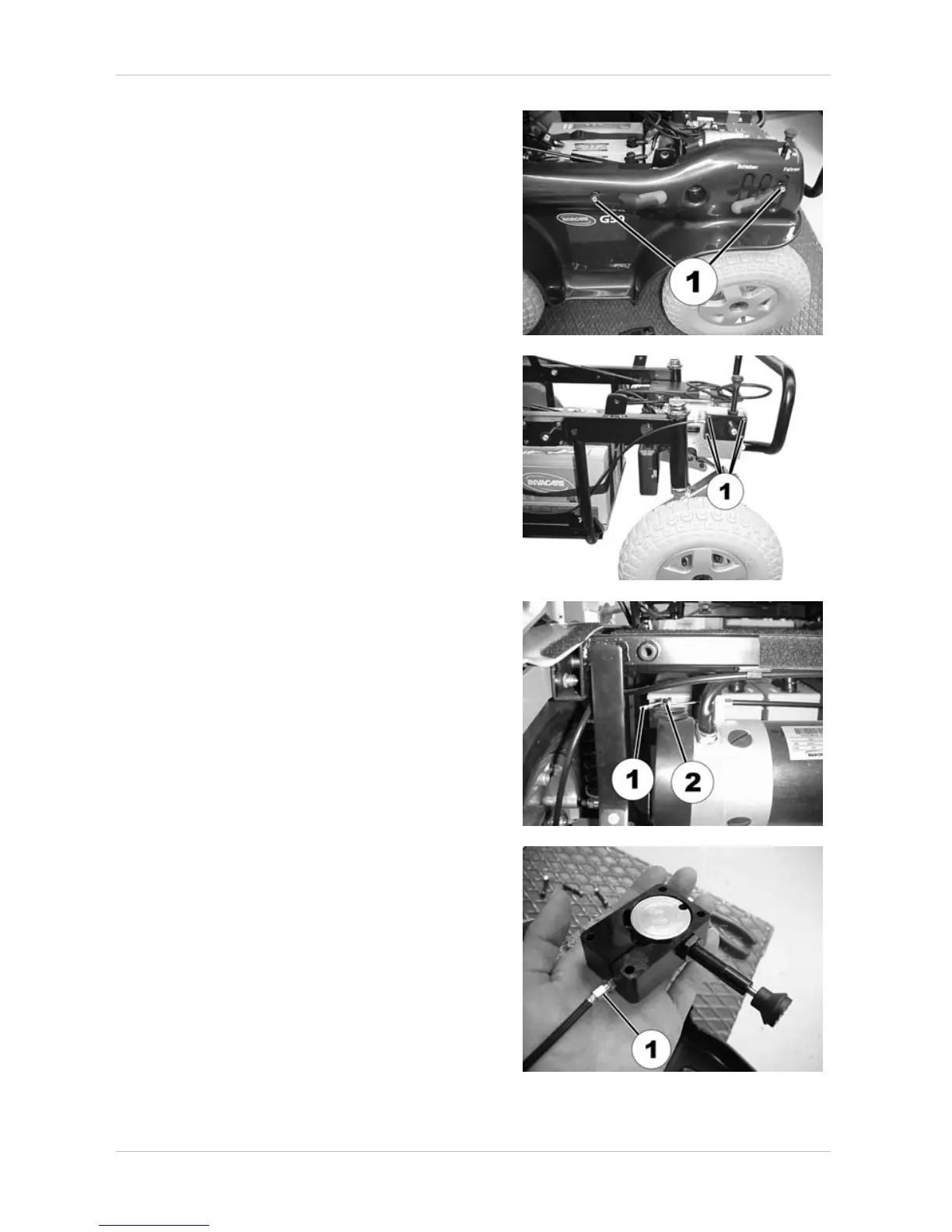

• Loosen and remove the fixation screws (1) of
the brake and declutching levers, using the
cross-tip screwdriver .
• The declutching lever mechanism is held by
four screws. Loosen and remove the screws
using the 3 mm Allen key and the 8 mm open-
end spanner.
• Remove.the declutching lever mechanism.
• To replace the Bowden cable of the
declutching mechanism, the Bowden cable
needs to be detached from the drive unit.
• Pull off the protective cap (1) of the
declutching bowden cable, or cut it off with the
side cutters.
• Loosen the fixation screw of the adjustment
sleeve (2) of the declutching bowden cable
with the small, flat screwdriver and the open-
end spanner 6 mm. Pull off ajustment sleeve.
• Loosen the counter nut of the adjustment
screw, using an open-end spanner 8 mm.
• Completely loosen and remove the
adjustment screw.
