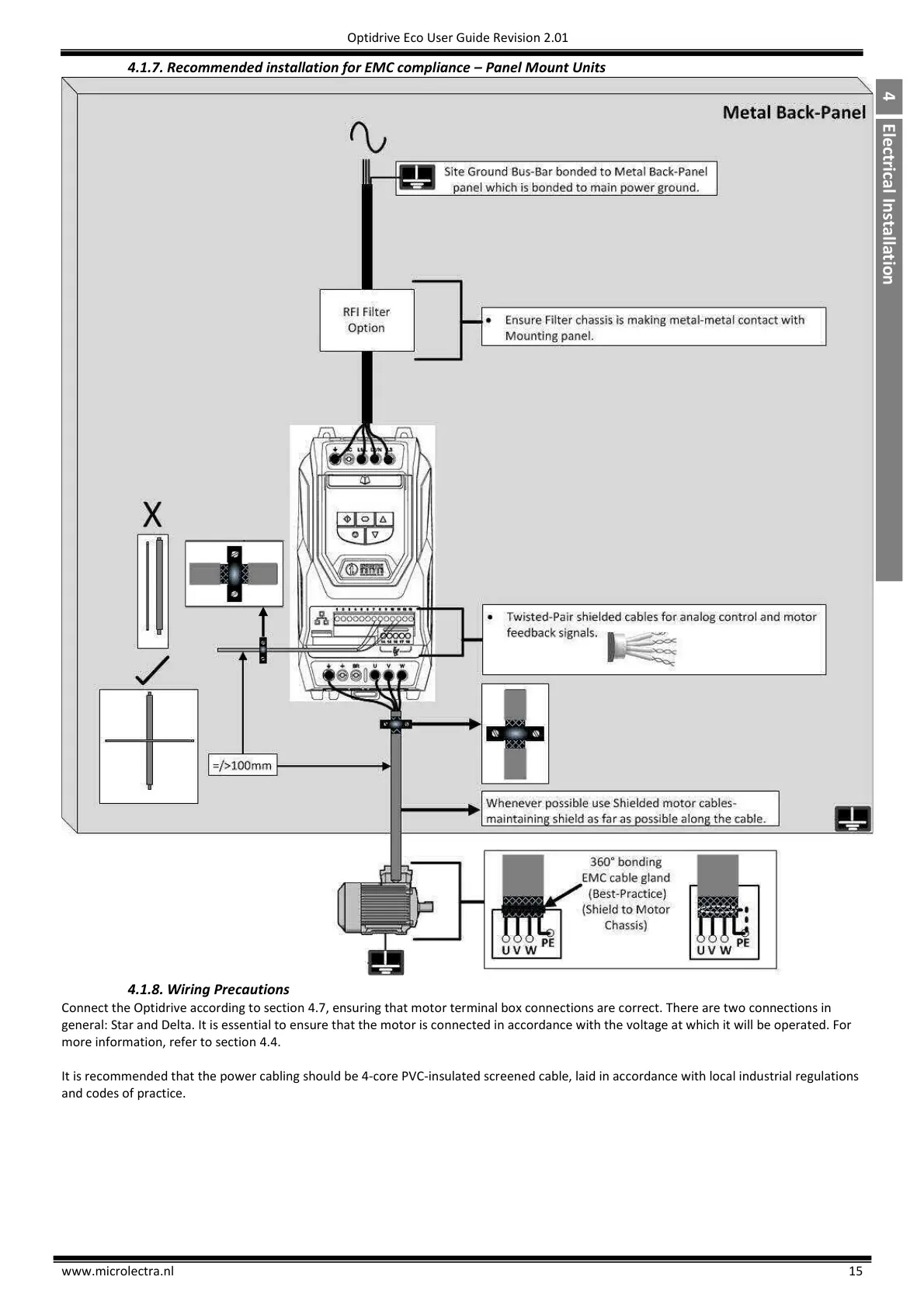

4.1.7. Recommended installation for EMC compliance – Panel Mount Units
4.1.8. Wiring Precautions
Connect the Optidrive according to section 4.7, ensuring that motor terminal box connections are correct. There are two connections in
general: Star and Delta. It is essential to ensure that the motor is connected in accordance with the voltage at which it will be operated. For
more information, refer to section 4.4.
It is recommended that the power cabling should be 4-core PVC-insulated screened cable, laid in accordance with local industrial regulations
and codes of practice.
