Mechanical Installation
3
3. Mechanical Installation
3.1. Before Installation
 Carefully Unpack the Optidrive and check for any signs of damage. Notify the shipper immediately if any exist.
 Check the drive rating label to ensure it is of the correct type and power requirements for the application.
 To prevent accidental damage always store the Optidrive in its original box until required. Storage should be clean and dry and
within the temperature range –40°C to +60°C
3.2. General
 The Optidrive should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting using the integral
mounting holes.
 Do not mount flammable material close to the Optidrive
 Ensure that the minimum cooling air gaps, as detailed in sections 3.4, 3.6 and 3.7 are left clear
 Ensure that the ambient temperature range does not exceed the permissible limits for the Optidrive given in section 12.1
 Provide suitable clean, moisture and contaminant free cooling air sufficient to fulfil the cooling requirements of the Optidrive

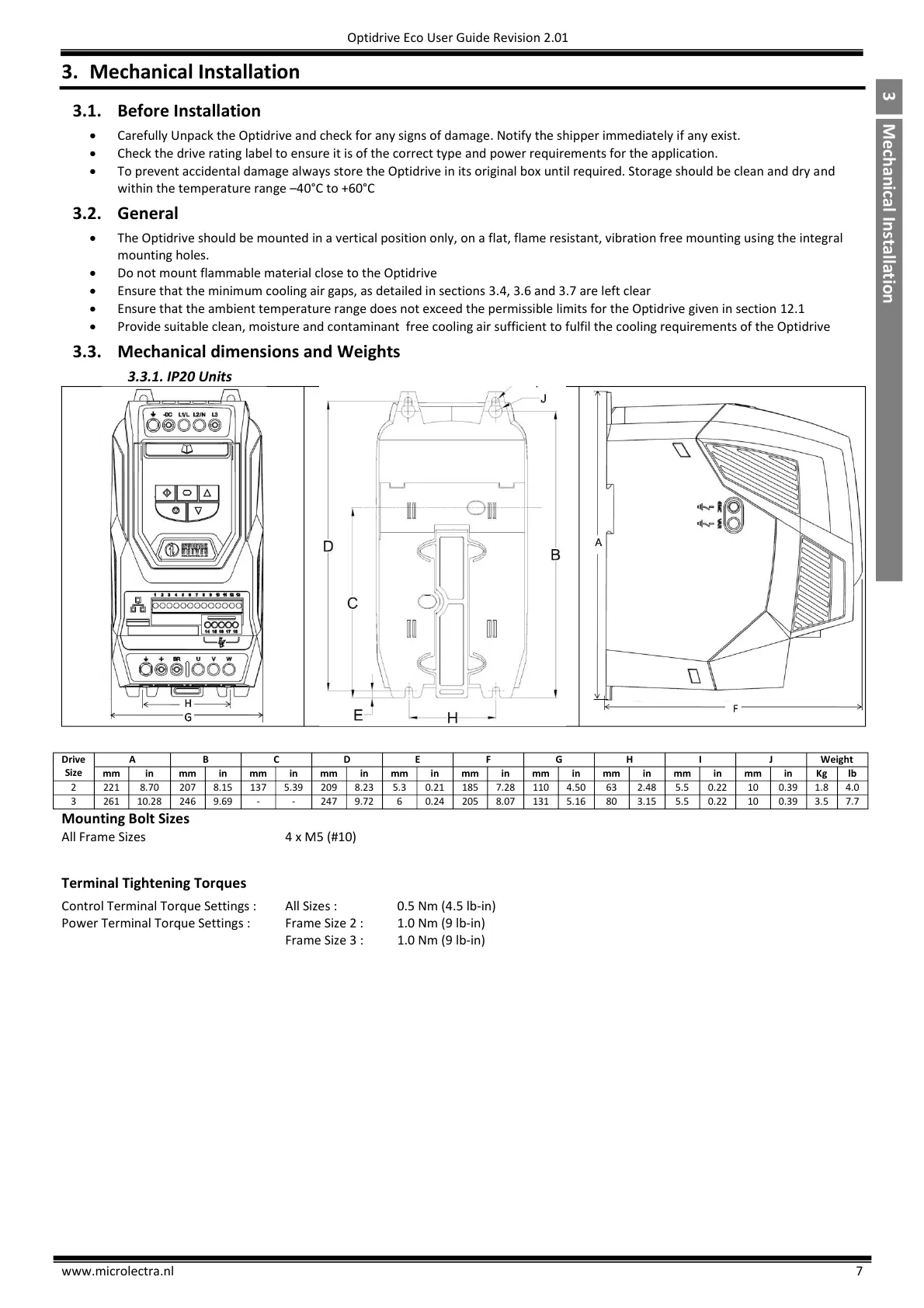

3.3. Mechanical dimensions and Weights
3.3.1. IP20 Units
Drive
Size
A
B
C
D
E
F
G
H
I
J
Weight
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
Kg
lb
2
221
8.70
207
8.15
137
5.39
209
8.23
5.3
0.21
185
7.28
110
4.50
63
2.48
5.5
0.22
10
0.39
1.8
4.0
3
261
10.28
246
9.69
-
-
247
9.72
6
0.24
205
8.07
131
5.16
80
3.15
5.5
0.22
10
0.39
3.5
7.7
Mounting Bolt Sizes
All Frame Sizes 4 x M5 (#10)
Terminal Tightening Torques
Control Terminal Torque Settings : All Sizes : 0.5 Nm (4.5 lb-in)
Power Terminal Torque Settings : Frame Size 2 : 1.0 Nm (9 lb-in)
Frame Size 3 : 1.0 Nm (9 lb-in)
