Invertek Drives Eco Optidrive Series User Manual

Optidrive Eco User Guide Revision 2.01
8
www.microlectra.nl
Mechanical Installation
3

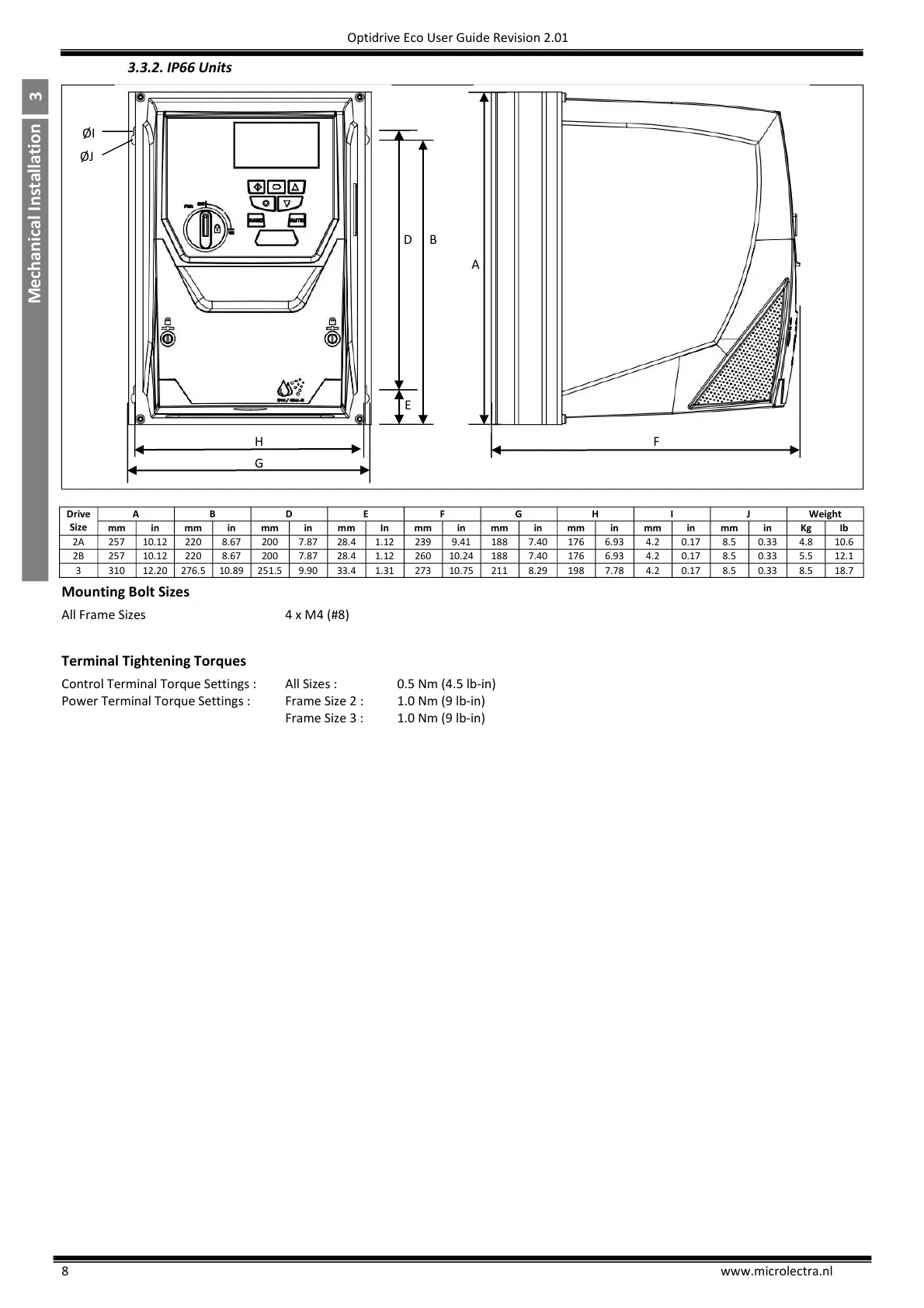

3.3.2. IP66 Units
Drive
Size
A
B
D
E
F
G
H
I
J
Weight
mm
in
mm
in
mm
in
mm
In
mm
in
mm
in
mm
in
mm
in
mm
in
Kg
Ib
2A
257
10.12
220
8.67
200
7.87
28.4
1.12
239
9.41
188
7.40
176
6.93
4.2
0.17
8.5
0.33
4.8
10.6
2B
257
10.12
220
8.67
200
7.87
28.4
1.12
260
10.24
188
7.40
176
6.93
4.2
0.17
8.5
0.33
5.5
12.1
3
310
12.20
276.5
10.89
251.5
9.90
33.4
1.31
273
10.75
211
8.29
198
7.78
4.2
0.17
8.5
0.33
8.5
18.7
Mounting Bolt Sizes
All Frame Sizes 4 x M4 (#8)
Terminal Tightening Torques
Control Terminal Torque Settings : All Sizes : 0.5 Nm (4.5 lb-in)
Power Terminal Torque Settings : Frame Size 2 : 1.0 Nm (9 lb-in)
Frame Size 3 : 1.0 Nm (9 lb-in)
A
F
G
H
D
B
E
ØJ
ØI
