General Information and Ratings
2

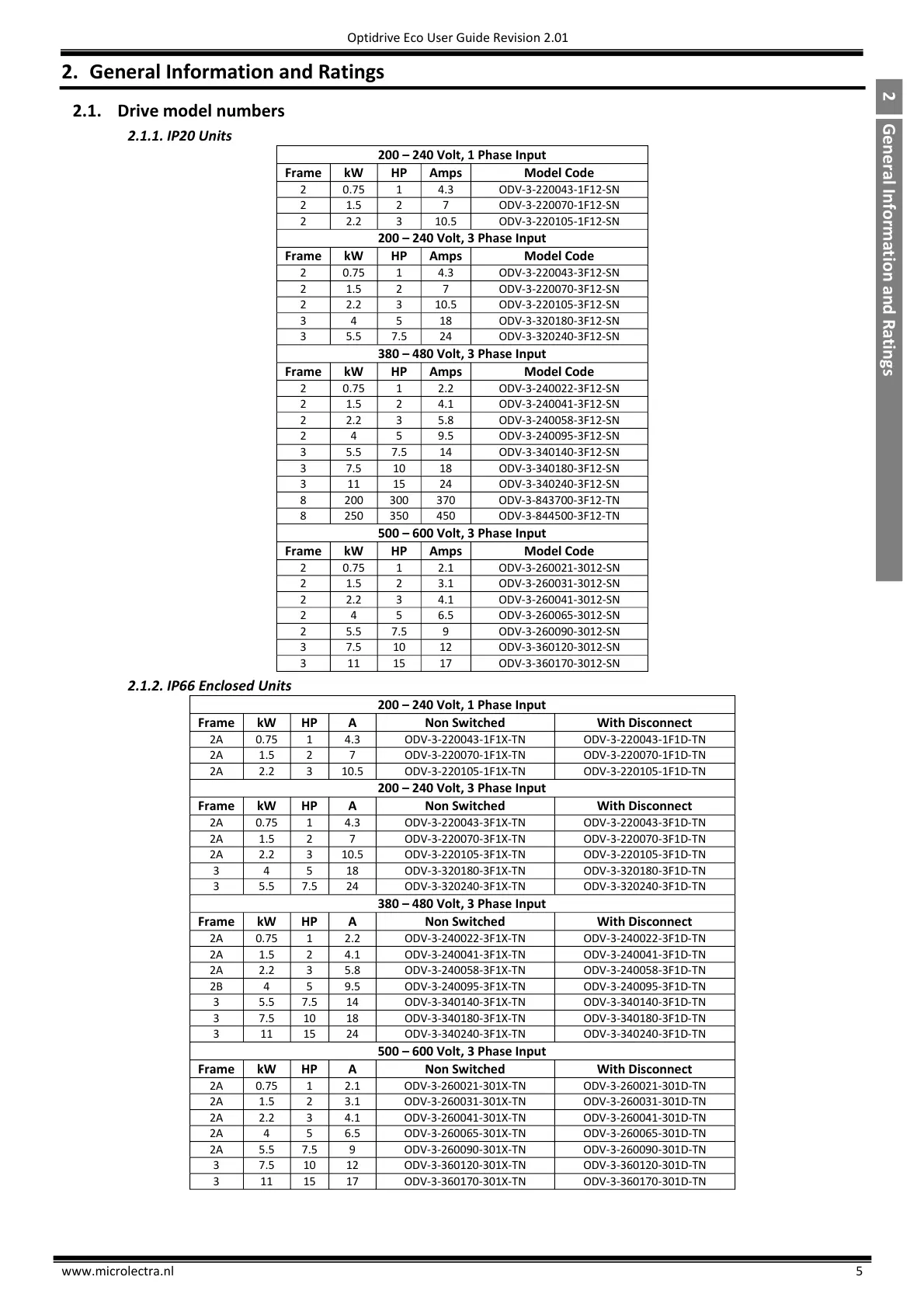

2. General Information and Ratings
2.1. Drive model numbers
2.1.1. IP20 Units
200 – 240 Volt, 1 Phase Input
Frame
kW
HP
Amps
Model Code
2
0.75
1
4.3
ODV-3-220043-1F12-SN
2
1.5
2
7
ODV-3-220070-1F12-SN
2
2.2
3
10.5
ODV-3-220105-1F12-SN
200 – 240 Volt, 3 Phase Input
Frame
kW
HP
Amps
Model Code
2
0.75
1
4.3
ODV-3-220043-3F12-SN
2
1.5
2
7
ODV-3-220070-3F12-SN
2
2.2
3
10.5
ODV-3-220105-3F12-SN
3
4
5
18
ODV-3-320180-3F12-SN
3
5.5
7.5
24
ODV-3-320240-3F12-SN
380 – 480 Volt, 3 Phase Input
Frame
kW
HP
Amps
Model Code
2
0.75
1
2.2
ODV-3-240022-3F12-SN
2
1.5
2
4.1
ODV-3-240041-3F12-SN
2
2.2
3
5.8
ODV-3-240058-3F12-SN
2
4
5
9.5
ODV-3-240095-3F12-SN
3
5.5
7.5
14
ODV-3-340140-3F12-SN
3
7.5
10
18
ODV-3-340180-3F12-SN
3
11
15
24
ODV-3-340240-3F12-SN
8
200
300
370
ODV-3-843700-3F12-TN
8
250
350
450
ODV-3-844500-3F12-TN
500 – 600 Volt, 3 Phase Input
Frame
kW
HP
Amps
Model Code
2
0.75
1
2.1
ODV-3-260021-3012-SN
2
1.5
2
3.1
ODV-3-260031-3012-SN
2
2.2
3
4.1
ODV-3-260041-3012-SN
2
4
5
6.5
ODV-3-260065-3012-SN
2
5.5
7.5
9
ODV-3-260090-3012-SN
3
7.5
10
12
ODV-3-360120-3012-SN
3
11
15
17
ODV-3-360170-3012-SN
2.1.2. IP66 Enclosed Units
200 – 240 Volt, 1 Phase Input
Frame
kW
HP
A
Non Switched
With Disconnect
2A
0.75
1
4.3
ODV-3-220043-1F1X-TN
ODV-3-220043-1F1D-TN
2A
1.5
2
7
ODV-3-220070-1F1X-TN
ODV-3-220070-1F1D-TN
2A
2.2
3
10.5
ODV-3-220105-1F1X-TN
ODV-3-220105-1F1D-TN
200 – 240 Volt, 3 Phase Input
Frame
kW
HP
A
Non Switched
With Disconnect
2A
0.75
1
4.3
ODV-3-220043-3F1X-TN
ODV-3-220043-3F1D-TN
2A
1.5
2
7
ODV-3-220070-3F1X-TN
ODV-3-220070-3F1D-TN
2A
2.2
3
10.5
ODV-3-220105-3F1X-TN
ODV-3-220105-3F1D-TN
3
4
5
18
ODV-3-320180-3F1X-TN
ODV-3-320180-3F1D-TN
3
5.5
7.5
24
ODV-3-320240-3F1X-TN
ODV-3-320240-3F1D-TN
380 – 480 Volt, 3 Phase Input
Frame
kW
HP
A
Non Switched
With Disconnect
2A
0.75
1
2.2
ODV-3-240022-3F1X-TN
ODV-3-240022-3F1D-TN
2A
1.5
2
4.1
ODV-3-240041-3F1X-TN
ODV-3-240041-3F1D-TN
2A
2.2
3
5.8
ODV-3-240058-3F1X-TN
ODV-3-240058-3F1D-TN
2B
4
5
9.5
ODV-3-240095-3F1X-TN
ODV-3-240095-3F1D-TN
3
5.5
7.5
14
ODV-3-340140-3F1X-TN
ODV-3-340140-3F1D-TN
3
7.5
10
18
ODV-3-340180-3F1X-TN
ODV-3-340180-3F1D-TN
3
11
15
24
ODV-3-340240-3F1X-TN
ODV-3-340240-3F1D-TN
500 – 600 Volt, 3 Phase Input
Frame
kW
HP
A
Non Switched
With Disconnect
2A
0.75
1
2.1
ODV-3-260021-301X-TN
ODV-3-260021-301D-TN
2A
1.5
2
3.1
ODV-3-260031-301X-TN
ODV-3-260031-301D-TN
2A
2.2
3
4.1
ODV-3-260041-301X-TN
ODV-3-260041-301D-TN
2A
4
5
6.5
ODV-3-260065-301X-TN
ODV-3-260065-301D-TN
2A
5.5
7.5
9
ODV-3-260090-301X-TN
ODV-3-260090-301D-TN
3
7.5
10
12
ODV-3-360120-301X-TN
ODV-3-360120-301D-TN
3
11
15
17
ODV-3-360170-301X-TN
ODV-3-360170-301D-TN
