Optidrive Eco User Guide Revision 2.01
www.microlectra.nl
25
Using the Keypad & LED Display on IP20 Frame Size 2 & 3
6

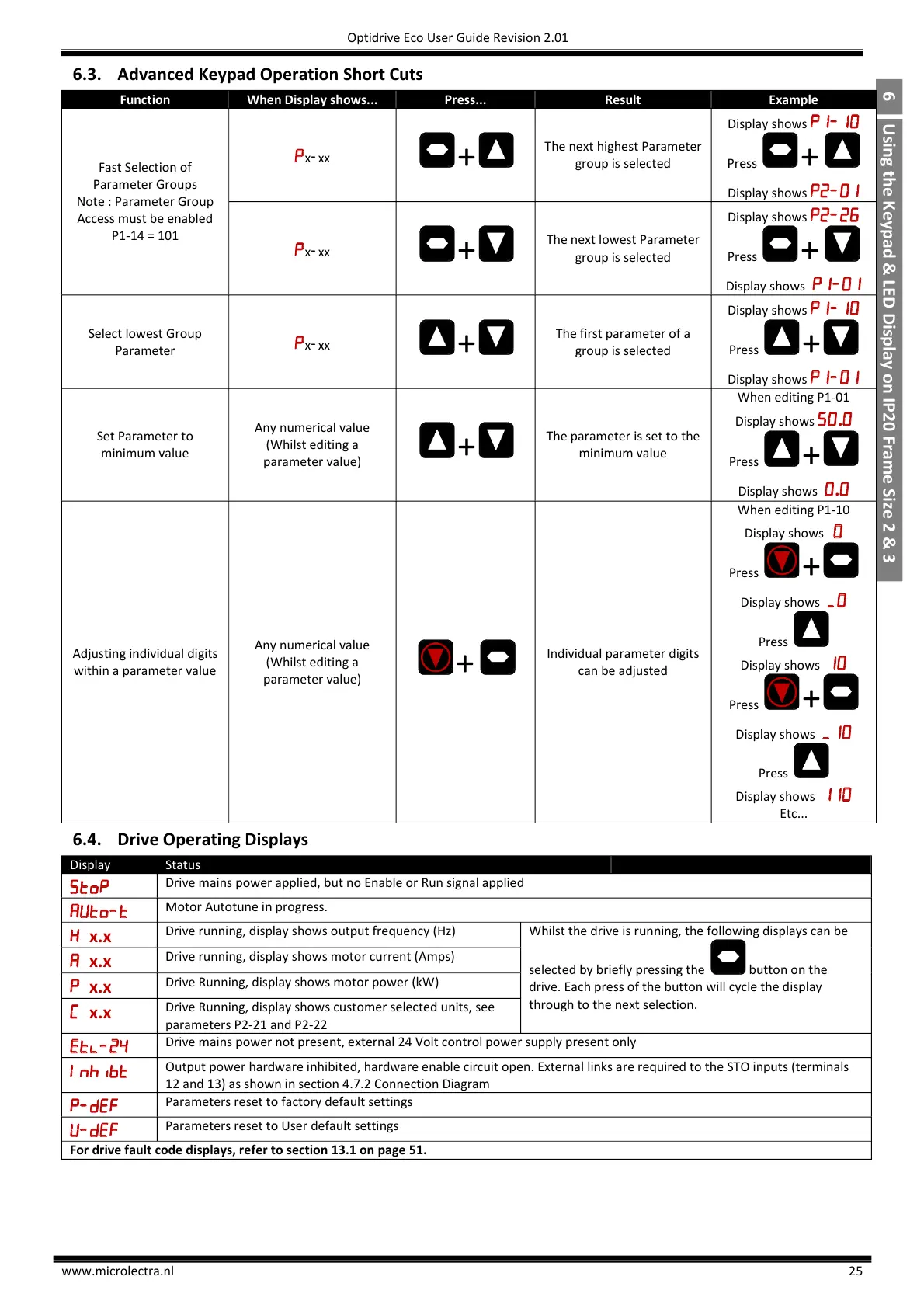

6.3. Advanced Keypad Operation Short Cuts
Function
When Display shows...
Press...
Result
Example
Fast Selection of
Parameter Groups
Note : Parameter Group
Access must be enabled
P1-14 = 101
xxx
+
The next highest Parameter
group is selected
Display shows
Press
+
Display shows
xxx
+
The next lowest Parameter
group is selected
Display shows
Press
+
Display shows
Select lowest Group
Parameter
xxx
+
The first parameter of a
group is selected
Display shows
Press
+
Display shows
Set Parameter to
minimum value
Any numerical value
(Whilst editing a
parameter value)
+
The parameter is set to the
minimum value
When editing P1-01
Display shows
.
Press +
Display shows .
Adjusting individual digits
within a parameter value
Any numerical value
(Whilst editing a
parameter value)
+
Individual parameter digits
can be adjusted
When editing P1-10
Display shows
Press
+
Display shows
Press
Display shows
Press
+
Display shows
Press
Display shows
Etc...
6.4. Drive Operating Displays
Display
Status
Drive mains power applied, but no Enable or Run signal applied
Motor Autotune in progress.
x.x
Drive running, display shows output frequency (Hz)
Whilst the drive is running, the following displays can be
selected by briefly pressing the button on the
drive. Each press of the button will cycle the display
through to the next selection.
x.x
Drive running, display shows motor current (Amps)
x.x
Drive Running, display shows motor power (kW)
x.x
Drive Running, display shows customer selected units, see
parameters P2-21 and P2-22
Drive mains power not present, external 24 Volt control power supply present only
Output power hardware inhibited, hardware enable circuit open. External links are required to the STO inputs (terminals
12 and 13) as shown in section 4.7.2 Connection Diagram
Parameters reset to factory default settings
Parameters reset to User default settings
For drive fault code displays, refer to section 13.1 on page 51.
