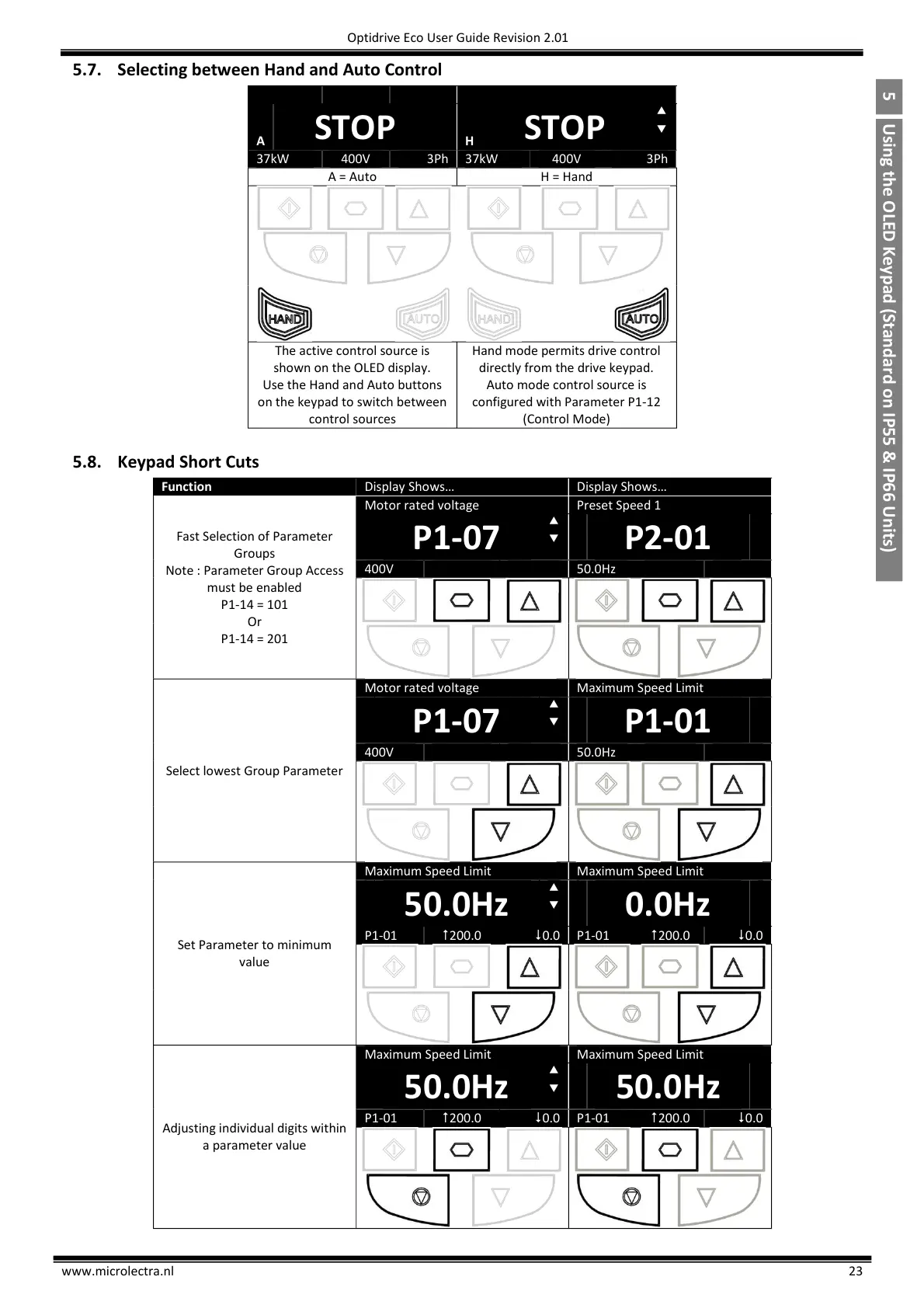

Using the OLED Keypad (Standard on IP55 & IP66 Units)
5
5.7. Selecting between Hand and Auto Control
A
STOP
H
STOP


37kW
400V
3Ph
37kW
400V
3Ph
A = Auto
H = Hand
The active control source is
shown on the OLED display.
Use the Hand and Auto buttons
on the keypad to switch between
control sources
Hand mode permits drive control
directly from the drive keypad.
Auto mode control source is
configured with Parameter P1-12
(Control Mode)
5.8. Keypad Short Cuts
Function
Display,Shows
Display,Shows
Fast Selection of Parameter
Groups
Note : Parameter Group Access
must be enabled
P1-14 = 101
Or
P1-14 = 201
Motor rated voltage
Preset Speed 1
P1-07


P2-01
400V
50.0Hz
Select lowest Group Parameter
Motor rated voltage
Maximum Speed Limit
P1-07


P1-01
400V
50.0Hz
Set Parameter to minimum
value
Maximum Speed Limit
Maximum Speed Limit
50.0Hz


0.0Hz
P1-01
200.0
0.0
P1-01
200.0
0.0
Adjusting individual digits within
a parameter value
Maximum Speed Limit
Maximum Speed Limit
50.0Hz


50.0Hz
P1-01
200.0
0.0
P1-01
200.0
0.0
